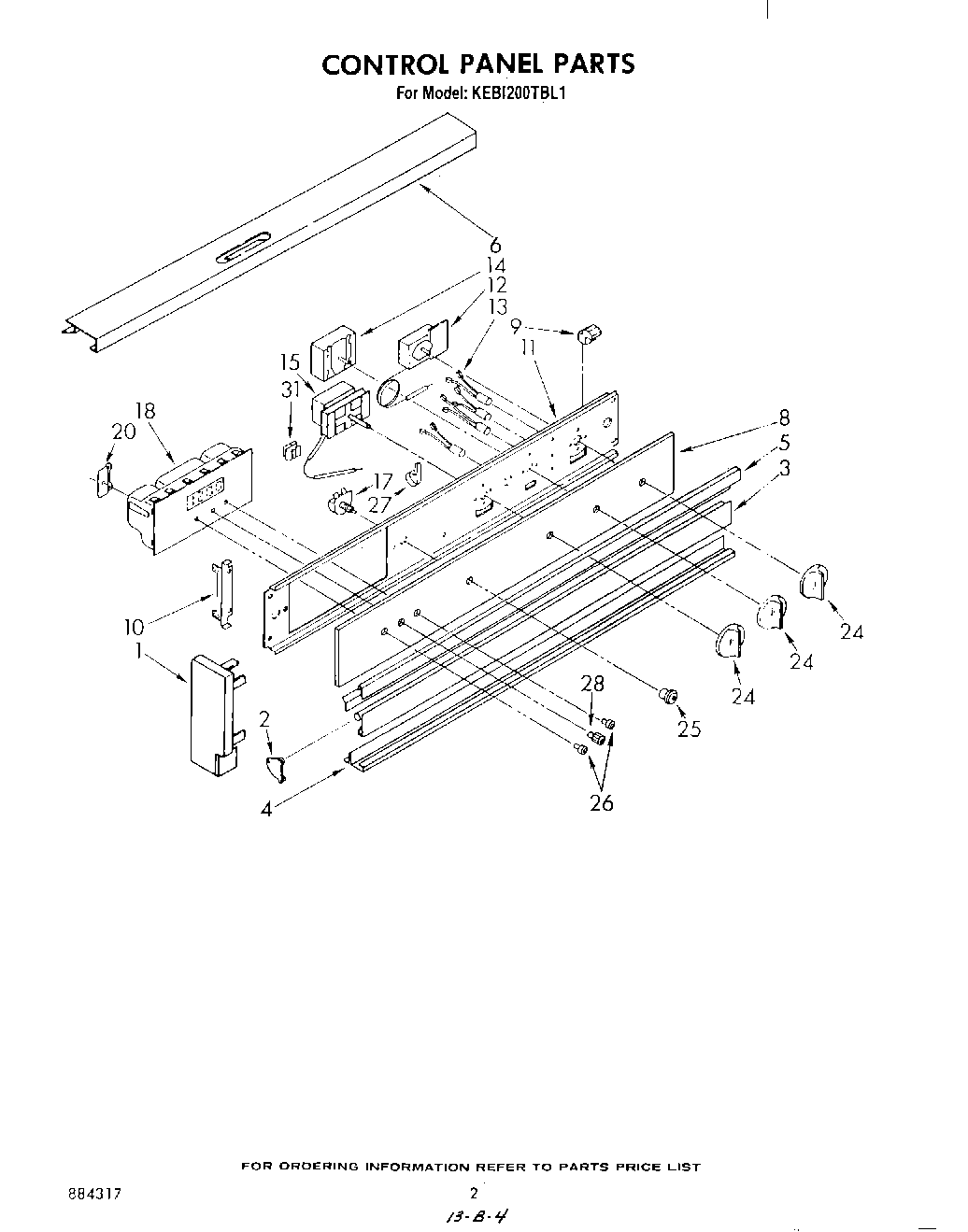

KEBI200TBL1 07 – CONTROL PANEL

Products

Position	Product
1	End Cap R.H.
1	End Cap. L.H.
2	End Trim, Vent (Right Side)
2	End Trim, Vent (Left Side)
3	Door, Vent
4	Trim, Bottom
5	Trim, Center
5	Screw, 10-32 x 1/2
6	Rail, Top
6	screw
8	Control Panel, Glass
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
11	Bracket, Control
12	Thermostat, Oven Pyro
13	Indicator Light (4)
14	WP486579 Whirlpool Air Conditioner Screw
14	Selector Switch
15	Screw (2)
15	WP313808 Whirlpool Screw
15	Thermostat, Oven Standard Clean
17	Switch, Oven Light
17	Lockwasher
18	Timer, Electronic
20	Bracket, Timer
20	WP965173 Whirlpool Dishwasher Screw
24	Knob, Control (3)
25	Bezel Switch (1)
26	Knob, Clock (2)
27	WP308605 Whirlpool Refrigerator Clamp
28	Knob, Clock
31	Clip, Tube
