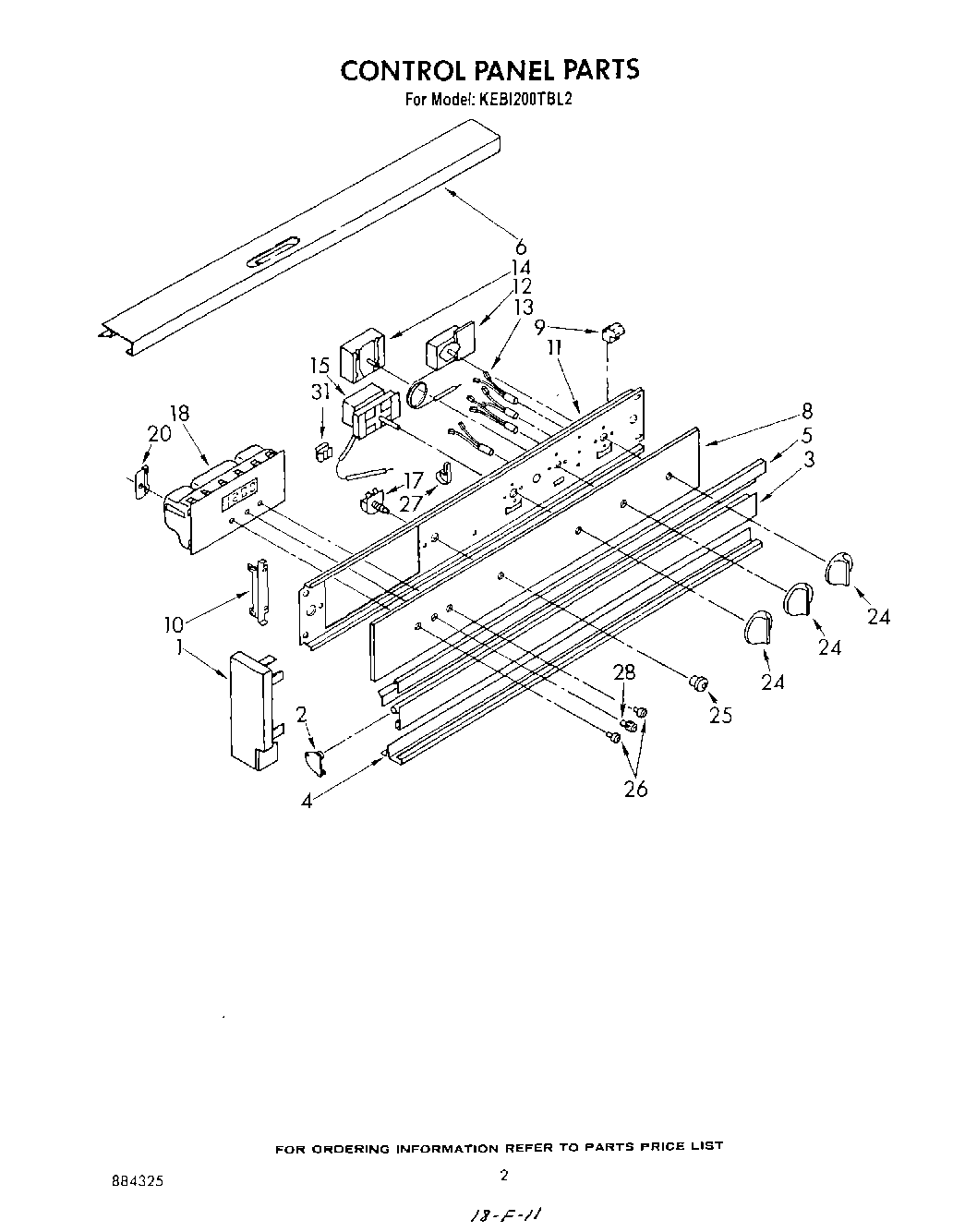

KEBI200TBL2 02 – CONTROL PANEL

Written by

Products

Position	Product
1	End Cap (Washer)
1	End Cap R.H.
1	End Cap. L.H.
2	End Trim, Vent (Right Side)
2	End Trim, Vent (Left Side)
3	Door, Vent
4	Trim, Bottom
5	Trim, Center
5	Screw, 10-32 x 1/2
6	screw
6	Rail, Top
8	Control Panel, Glass
9	Retainer, Glass (4)
10	Screw (2)
10	Bracket, Control Panel (2)
11	Bracket, Control
12	Thermostat, Oven Pyro
13	Indicator Light (4)
14	Selector Switch
14	WP486579 Whirlpool Air Conditioner Screw
15	WP313808 Whirlpool Screw
15	Screw (2)
15	Thermostat, Oven Standard Clean
17	Lockwasher
17	Switch, Oven Light
18	Timer, Digital
20	Bracket, Timer
20	WP965173 Whirlpool Dishwasher Screw
24	Knob, Control (3)
25	Bezel Switch (1)
26	Knob, Clock (2)
27	WP308605 Whirlpool Refrigerator Clamp
28	Knob, Clock
31	Clip, Tube
