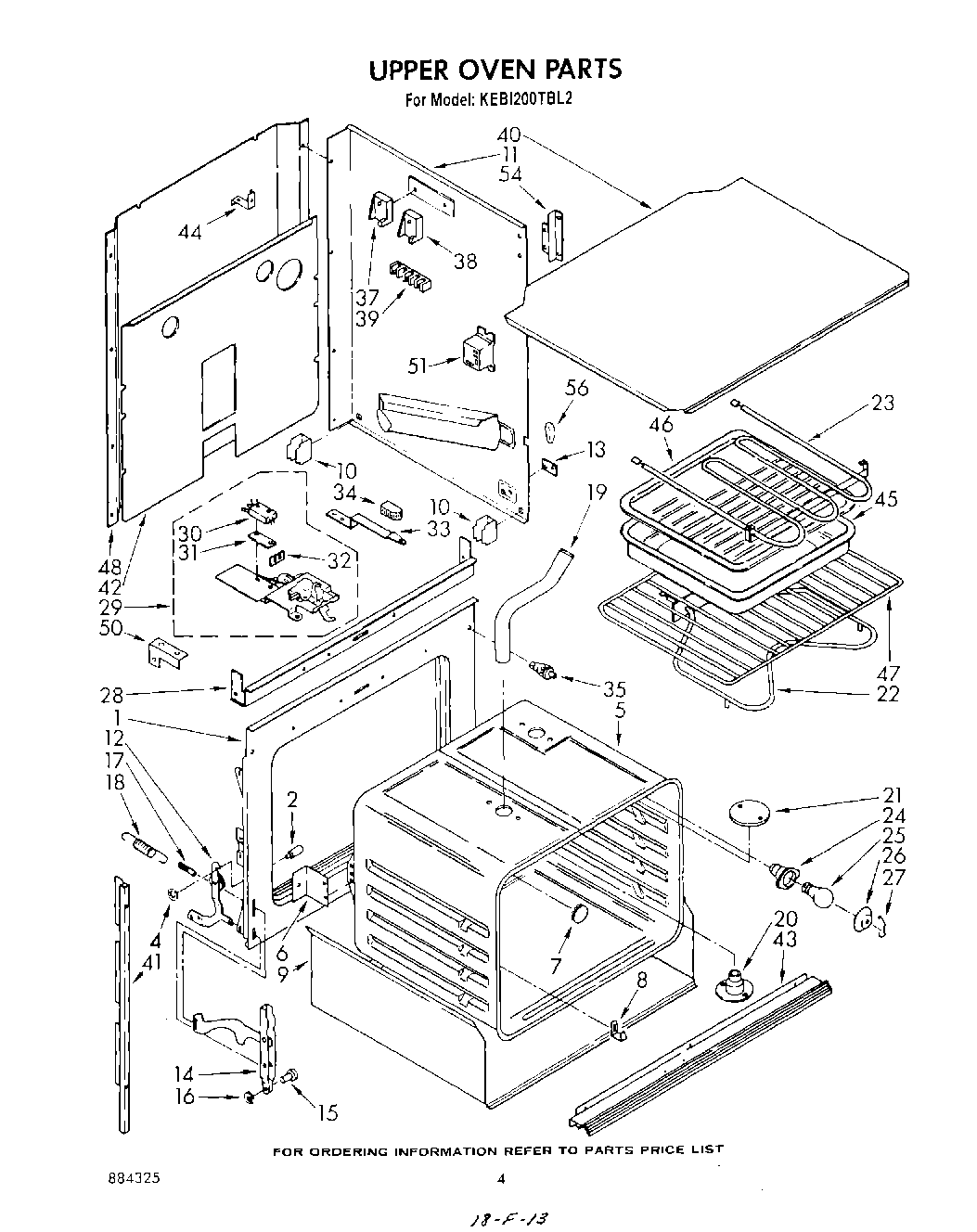

KEBI200TBL2 03 – UPPER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
4	Pushnut (2)
5	Screw (3)
5	Oven (30“ Pyro)
6	Bracket, Oven Mounting (2)
7	Plug Button
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (R.H.)
11	Side Wrapper (L.H.)
12	Hinge Ear, L.H.
12	Hinge Ear, R.H.
13	WP308544 Whirlpool Screw
13	Plate, Side Panel (2)
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	Vent, Extension (2)
20	SCREW
20	Eliminator, Smoke
21	WPL 310662
22	ELMNT-BAKE
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
23	Screw, 10-32 x 5/8 (4)
24	Socket, Oven Light
25	RANGE ONLY 40W 120V APPL BULB
26	Cover, Light
27	Retainer, Light
28	Baffle, Top Insulation
29	Latch Assembly
30	Safety Switch
30	Screw
31	Insulator, Switch
32	Screw
32	Shield, Latch
33	Latch, Handle
33	Screw
34	Screw, 80 x 5/16
34	Knob, Latch Handle
35	Switch, Door
37	Sw
38	WPL 314215
38	Switch, Bake
39	WP112432 Whirlpool Nut Assembly
39	Screw (10-12 x .875)
39	WP8203546 Whirlpool Terminal Block
40	WPL 310458
41	WPL 310690
41	WPL 310686
42	WPL 310459
43	WPL 329019
43	Screw, 10A x 1/2 (2) (Black)
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 308172
47	WPL 308173
48	WPL 311011
50	WPL 312320
51	WPL 3148688
51	WPL 3147001
54	WPL 310719
54	WP488729 Whirlpool Refrigerator Door Screw
54	WP488627 Whirlpool Refrigerator Screw
56	WPL 311982
