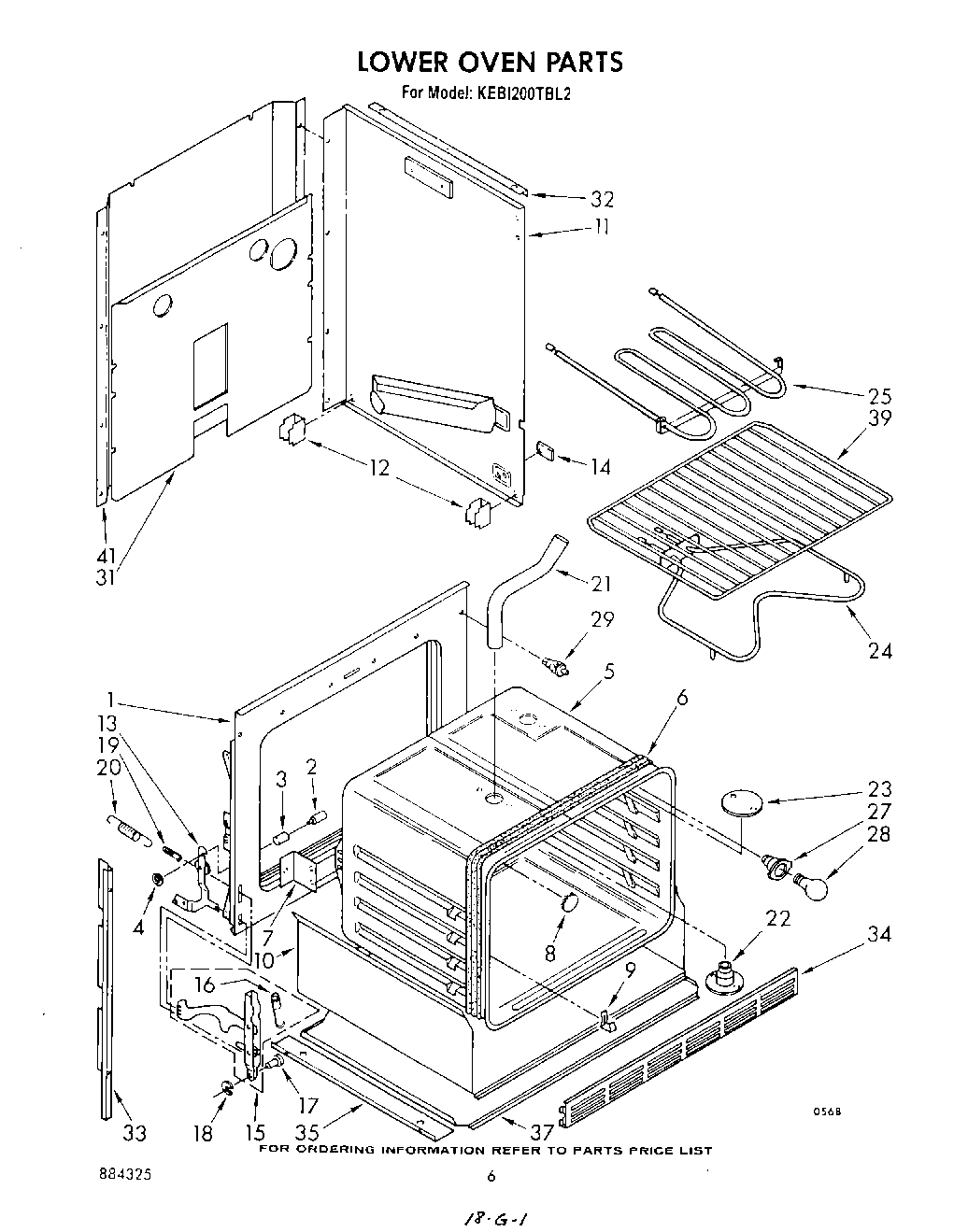

KEBI200TBL2 04 – LOWER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Oven, 30“ Standard Clean
5	Screw (3)
6	Heat Seal
7	Bracket, Oven Mounting (2)
8	Plug Button
9	98005642 Whirlpool Clip
10	Insulation Tray
11	Side Wrapper (Left Side)
11	Side Wrapper (Right Side)
12	Support, Side Wrapper (4)
13	Hinge Ear, R.H.
13	Hinge Ear, L.H.
14	WP308544 Whirlpool Screw
14	Plate, Side Panel (2)
15	Channel Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	SCREW
21	Tube, Lower Vent
22	Eliminator, Smoke
23	WPL 310662
24	ELMNT-BAKE
25	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
25	Screw, 10-32 x 5/8 (4)
27	Screw (10-12 x .875)
27	Socket, Oven Light
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
31	WPL 310459
32	Support Angle (2)
33	Side Trim (Right Side)
33	Side Trim (Left Side)
34	Grill, Bottom (Screw (3))
34	Grill, Bottom
35	Angle, Support (2)
37	WPL 310458
39	WPL 308173
41	WP488729 Whirlpool Refrigerator Door Screw
41	WPL 311013
