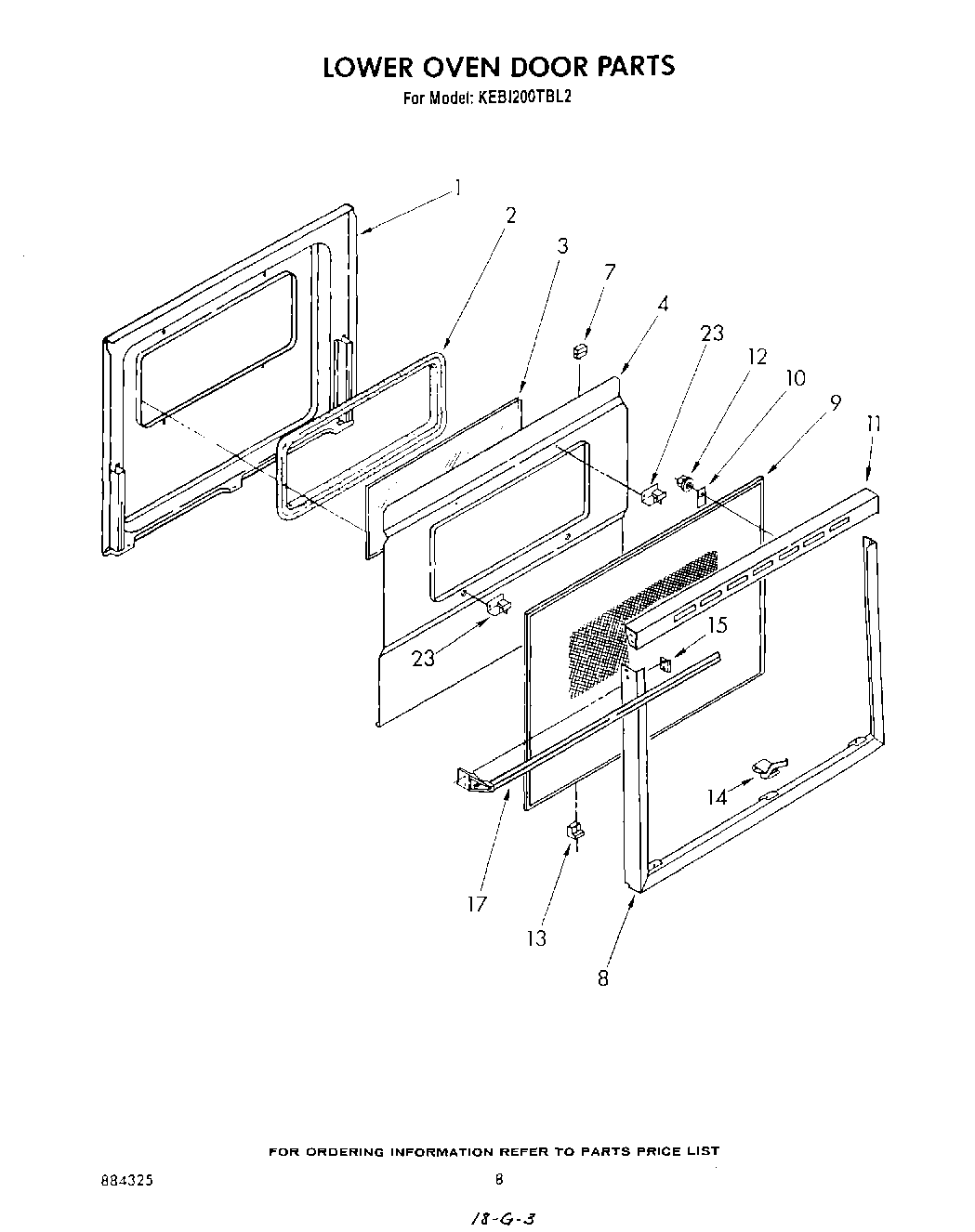

KEBI200TBL2 05 – LOWER OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	Book, Cooking Guide
	Tech Sheet
	Guide, Use & Care
	List, Parts
1	Liner, Door
1	WP488729 Whirlpool Refrigerator Door Screw
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
7	Channel, Rubber (4)
8	Frame, Door
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
13	Seal, Foam
14	Clip, Glass (10)
15	Clip (2)
17	WP355515 Whirlpool Screw
17	Handle, Oven Door
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	Wire, 25` Roll (Red 14 Ga.)
23	Rotisserie Kit
23	Grease
23	WPW10208653 Whirlpool Insulation
23	Touch-Up Oven (1 Oz.)
23	Spacer (4)
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	1
