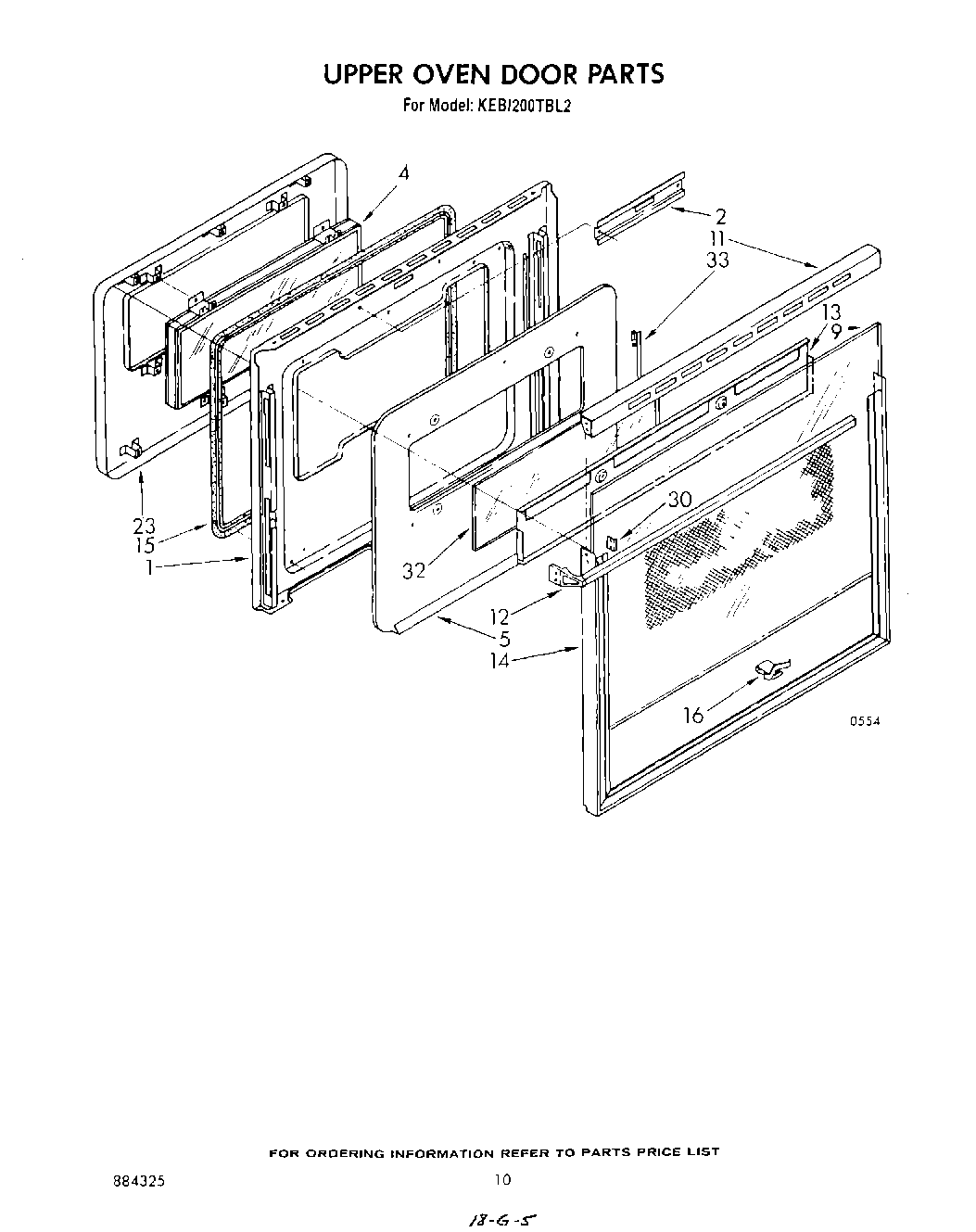

KEBI200TBL2 06 – UPPER OVEN DOORadmin2025-04-26T09:52:26+00:00KEBI200TBL2 06 – UPPER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | Channel, Latch |
| 2 | Screw |
| 4 | Window Package |
| 5 | Retainer, Insulation |
| 5 | WP488729 Whirlpool Refrigerator Door Screw |
| 9 | Glass, Outer |
| 11 | Top, Door Frame |
| 12 | Handle, Oven Door |
| 12 | WP355515 Whirlpool Screw |
| 13 | WP90296 Whirlpool Clip |
| 13 | Seal, Foam |
| 13 | Baffle, Heat |
| 14 | Screw, 10A x 1/2 (2) (Black) |
| 14 | Frame, Door |
| 15 | Seal, Fiberglass |
| 16 | Clip, Glass (10) |
| 23 | Panel, Inner |
| 30 | Clip (2) |
| 32 | Glass (6.81`` x 18.31``) |
| 33 | Retainer, Glass (2) |
