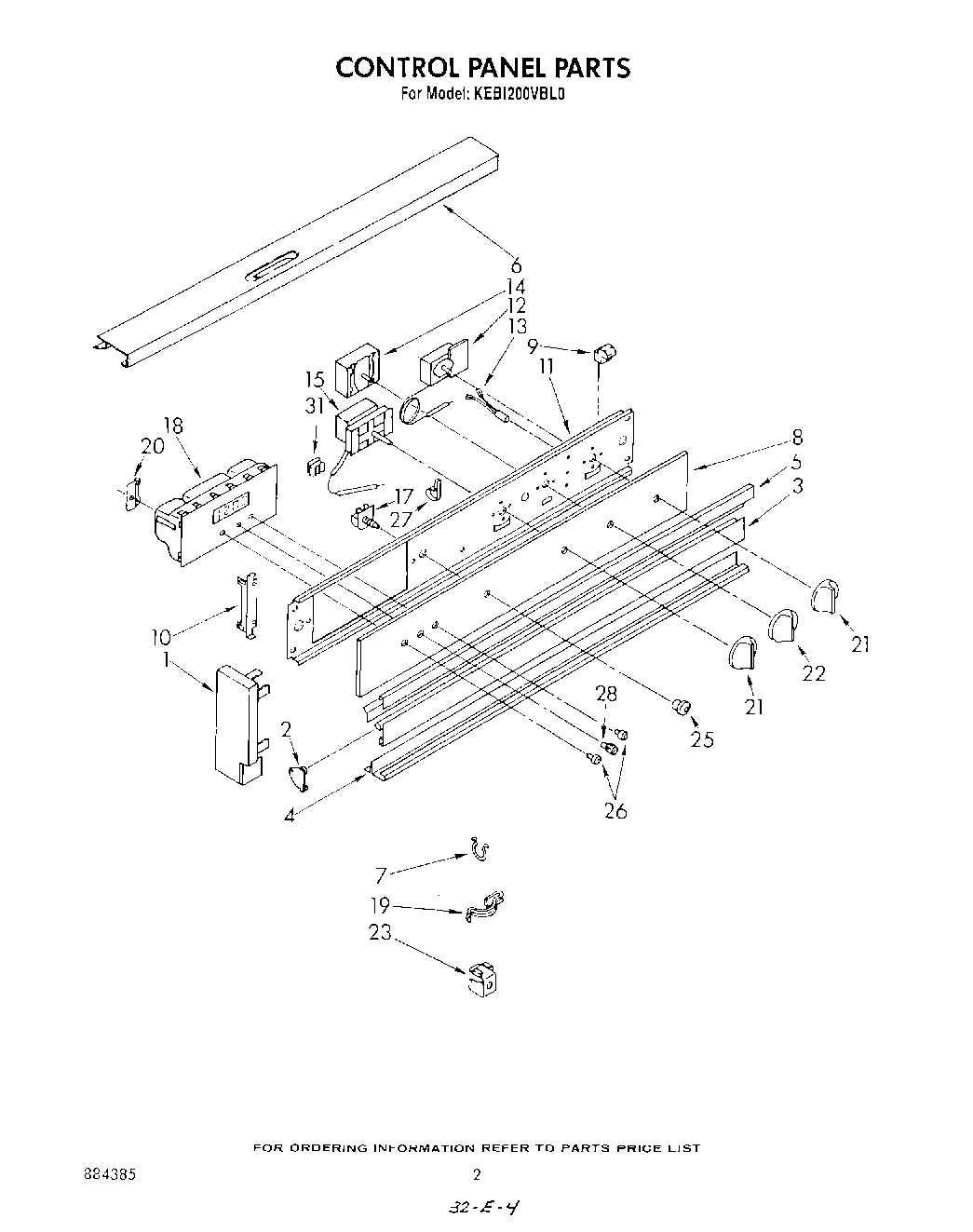

KEBI200VBL0 02 – CONTROL PANEL

Products

Position	Product
1	End Cap (Washer)
1	End Cap R.H.
1	End Cap. L.H.
2	End Trim, Vent (Left Side)
2	End Trim, Vent (Right Side)
3	Door, Vent
4	Trim, Bottom
5	Trim, Center
5	Screw, 10-32 x 1/2
6	Trim, Top
6	screw
7	16515 Whirlpool Clip
8	Control Panel, Glass
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
10	Screw (2)
11	Bracket, Control
12	Thermostat, Oven Pyro
13	Light, Indicator Standard Clean
13	Indicator Light (4)
14	Selector Switch
14	WP486579 Whirlpool Air Conditioner Screw
15	Screw (2)
15	Thermostat, Oven Standard Clean
17	Switch, Oven Light
17	Lockwasher
18	Timer, Digital
19	8528351 Whirlpool Clip
20	Bracket, Timer
20	WP965173 Whirlpool Dishwasher Screw
21	Knob, Control
22	Knob, Control
23	Adapter, Terminal
25	Bezel Switch (1)
26	Knob, Clock (2)
27	WP308605 Whirlpool Refrigerator Clamp
28	Knob, Clock
31	Clip, Tube
