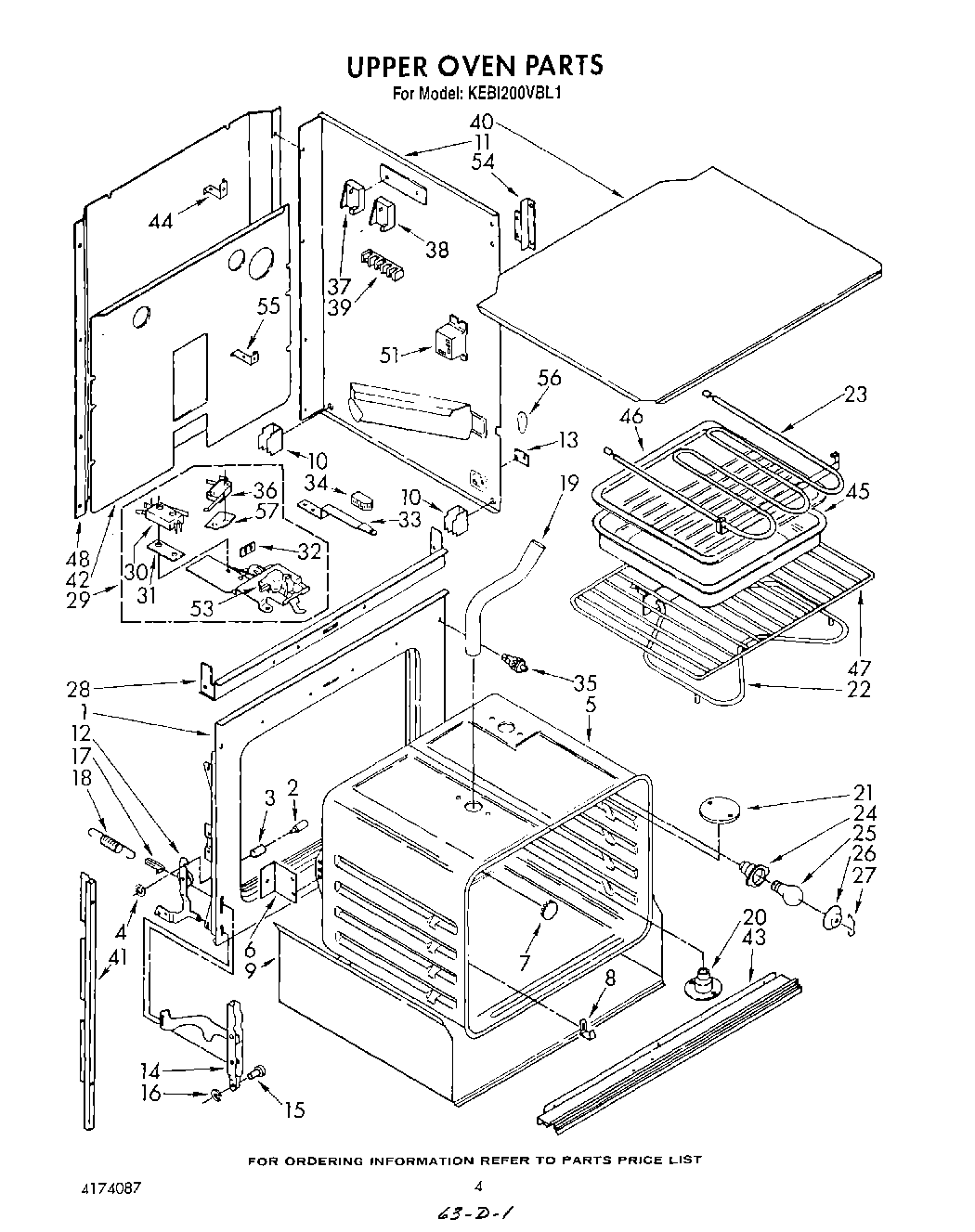

KEBI200VBL1 03 – UPPER OVEN

Products

Position	Product
1	Frame, Front
1	WP313808 Whirlpool Screw
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Oven 30“
5	Screw (3)
6	Bracket, Oven Mounting (2)
7	Plug Button
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (R.H.)
11	Side Wrapper (L.H.)
12	Hinge Ear, L.H.
12	Hinge Ear, R.H.
13	Plate, Side Panel (2)
13	WP308544 Whirlpool Screw
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	Vent, Extension (2)
19	SCREW
20	Eliminator, Smoke
21	WPL 310662
22	ELMNT-BAKE
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
24	Socket, Oven Light
25	RANGE ONLY 40W 120V APPL BULB
26	Cover, Light
27	Retainer, Light
28	Baffle, Top Insulation
29	Latch Assembly
30	Screw
30	Safety Switch
31	Insulator, Switch
32	Shield, Latch
32	Screw
33	Latch, Handle
33	Screw
34	Knob, Latch Handle
34	Screw, 80 x 5/16
35	Switch, Door
36	Switch, Lock
37	Sw
38	Switch, Bake
38	WPL 314215
39	WP112432 Whirlpool Nut Assembly
39	WP8203546 Whirlpool Terminal Block
39	Screw (10-12 x .875)
40	WPL 310458
41	WPL 310686
41	WPL 310690
42	Panel, Back (2)
43	WPL 329019
43	Screw
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 308172
47	WPL 308173
48	WPL 311011
51	WPL 3148688
53	WPL 3149270
54	WPL 310719
55	WP488627 Whirlpool Refrigerator Screw
55	WPL 309102
56	WP488729 Whirlpool Refrigerator Door Screw
56	WPL 311982
56	WPL 312318
57	WPL 3149328
57	WPL 310434
57	WPL 3147864
57	WPL 310433
