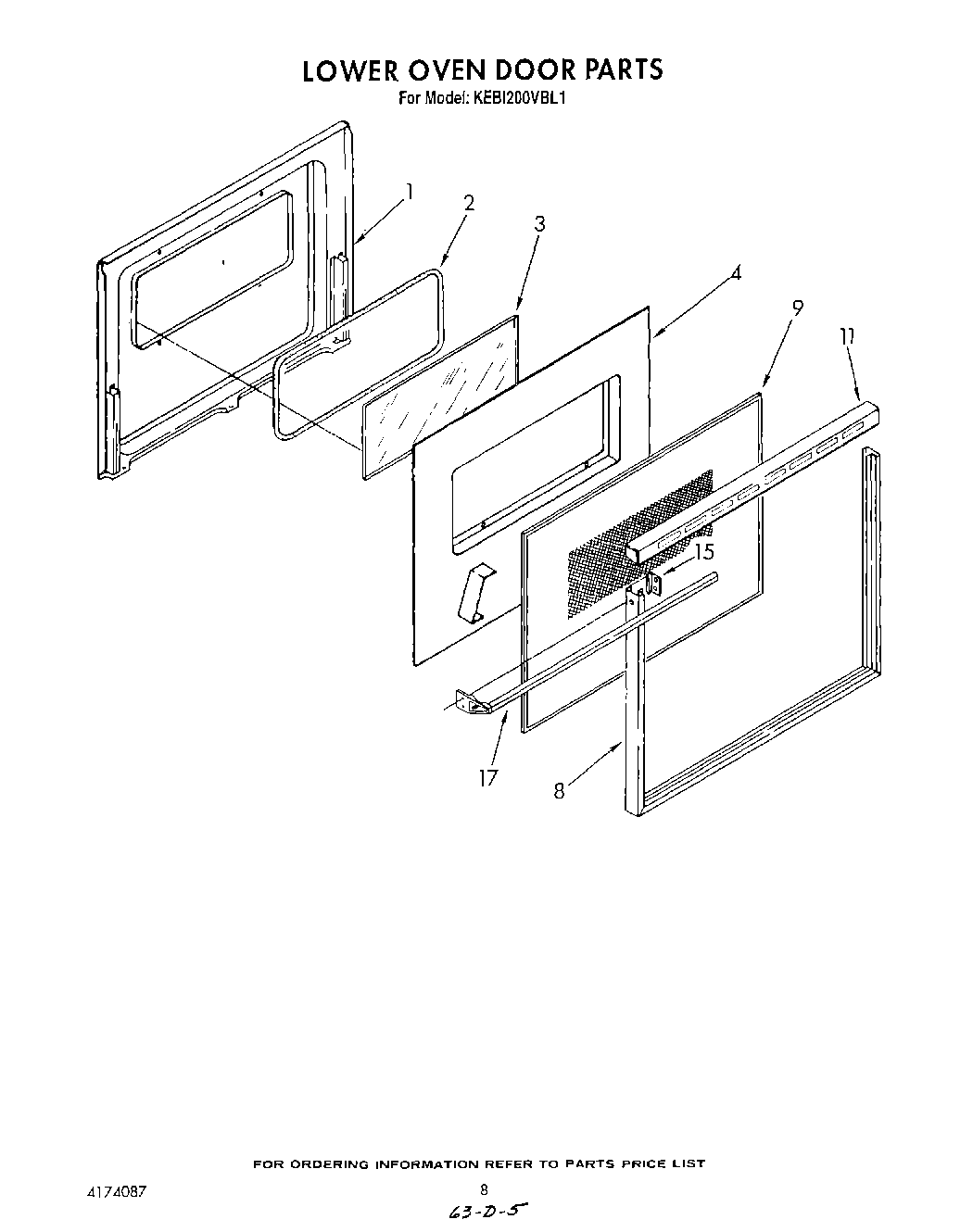

KEBI200VBL1 05 – LOWER OVEN DOOR

Written by

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
1	Screw (3)
1	Liner, Door
2	Seal, Door
3	Glass, Inner
4	Screw
4	Retainer, Insulation
8	Frame, Door
9	Glass, Panel (Black Model)
11	Top, Door Frame
15	Clip (2)
17	Back Splash (Screw (4) 10AB x 1/2“)
17	Handle, Oven Door
17	WP355515 Whirlpool Screw
