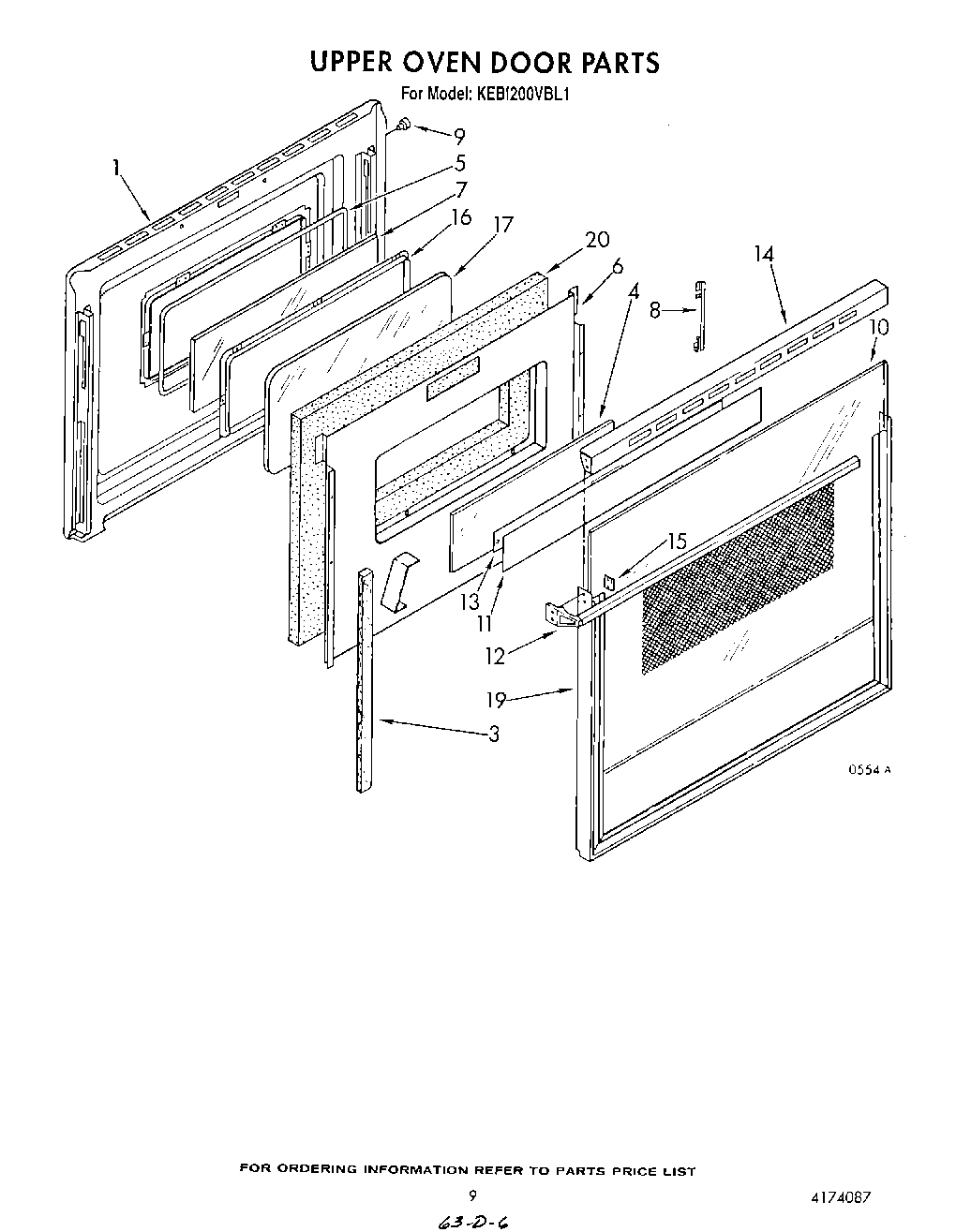

KEBI200VBL1 06 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
13	Sheild, Door
13	Screw,
14	Top, Door Frame
14	WP355515 Whirlpool Screw
15	Clip (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
