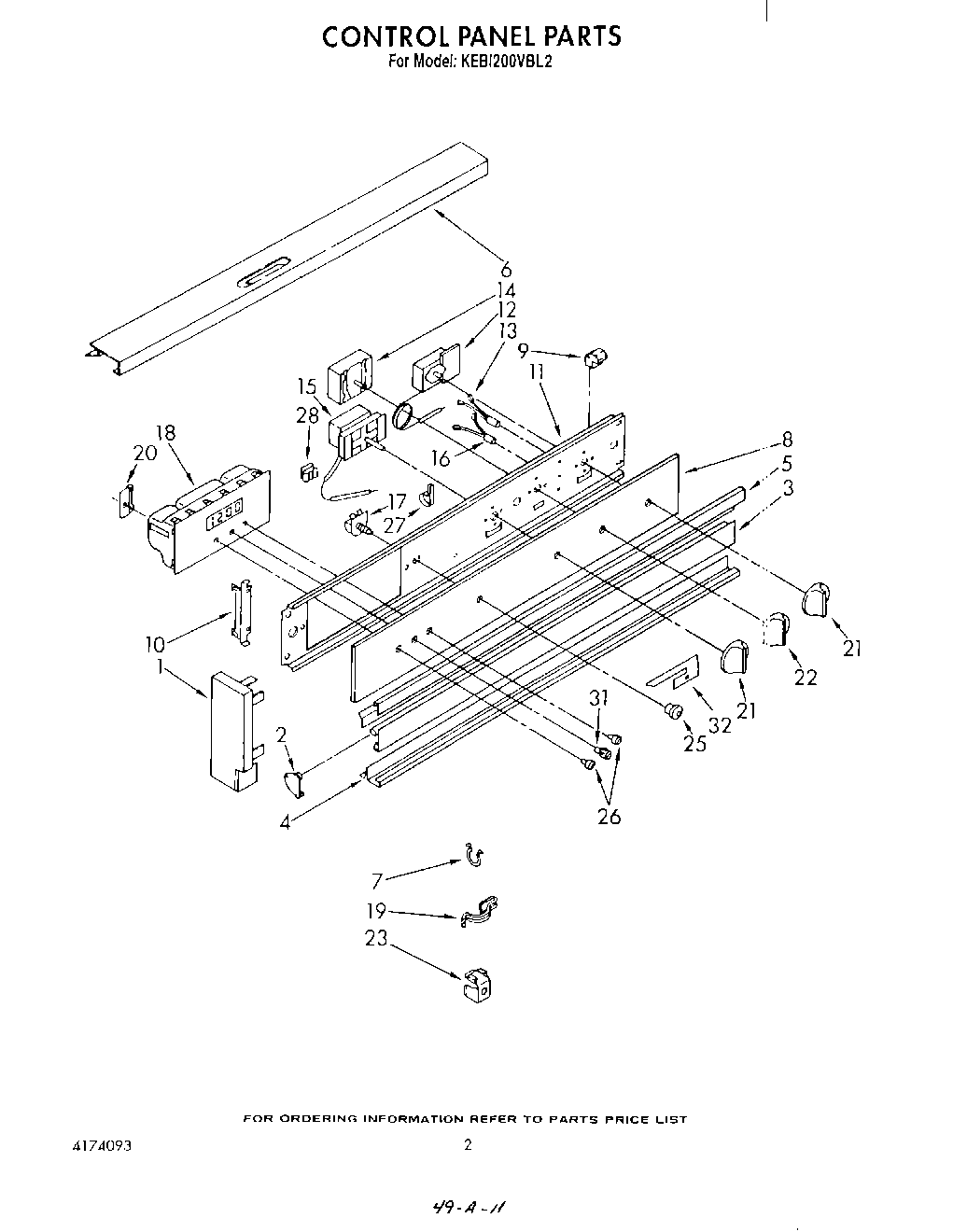

KEBI200VBL2 02 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	Tech Sheet
	Guide, Use & Care
	Repair Parts List
	Cookbook
	Instructions, Installation
1	End Cap (Washer)
1	End Cap R.H.
1	End Cap. L.H.
2	End Trim, Vent (Right Side)
2	End Trim, Vent (Left Side)
3	Door, Vent
4	Screw, 10-32 x 1/2
4	Trim, Bottom
5	Trim, Center
6	Trim, Top
7	16515 Whirlpool Clip
8	Control Panel, Glass
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
11	Bracket, Control
12	Thermostat, Oven Pyro
13	Indicator Light (4)
14	Selector Switch
14	WP486579 Whirlpool Air Conditioner Screw
15	Thermostat, Oven Standard Clean
16	Screw (2)
16	Light, Indicator Standard Clean
17	Switch, Oven Light
17	Lockwasher
18	Timer, Digital
19	8528351 Whirlpool Clip
20	Nut, Timer (4)
20	Bracket, Timer
20	WP965173 Whirlpool Dishwasher Screw
21	Knob, Control
22	Knob, Control
23	Adapter, Terminal
25	Bezel Switch (1)
26	Knob, Clock (2)
27	Strain Relief (3)
28	Clip, Tube
31	Knob, Clock
31	Screw (2)
32	Shield, Air
