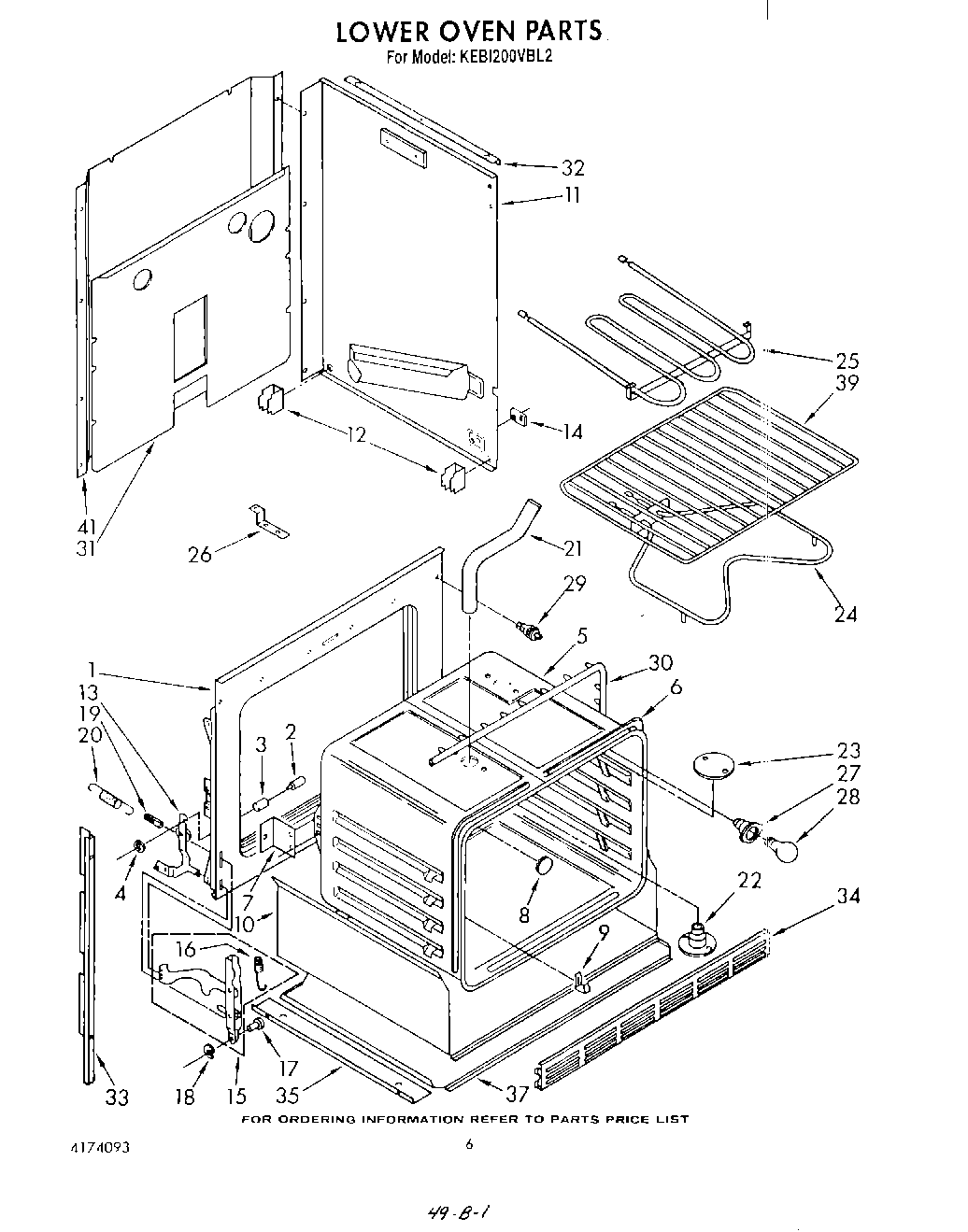

KEBI200VBL2 04 – LOWER OVEN

Products

Position	Product
1	Frame, Front
1	WP313808 Whirlpool Screw
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Oven 30“ Standard Clean
5	Screw (3)
6	Heat Seal
7	Bracket, Oven Mounting (2)
8	Plug Button
9	98005642 Whirlpool Clip
10	Insulation Tray
11	Side Wrapper (Right Side)
11	Side Wrapper (Left Side)
12	Support, Side Wrapper (4)
13	Hinge Ear, R.H.
13	Hinge Ear, L.H.
14	WP308544 Whirlpool Screw
14	Plate, Side Panel (2)
15	Channel Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	SCREW
21	Tube, Lower Vent
22	Eliminator, Smoke
23	WPL 310662
24	ELMNT-BAKE
25	Screw (2)
25	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
26	Bracket, Control Mounting
26	WP965173 Whirlpool Dishwasher Screw
27	Screw (10-12 x .875)
27	Socket, Oven Light
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
30	Seal, Door
31	Panel, Back (2)
32	Support Angle (2)
33	Side Trim (Left Side)
33	Side Trim (Right Side)
34	Grill, Bottom
34	Grill, Bottom (Screw (3))
35	Angle, Support (2)
37	WPL 310458
39	WPL 308173
41	WPL 311013
41	WPL 310433
41	WPL 310434
41	WP488729 Whirlpool Refrigerator Door Screw
