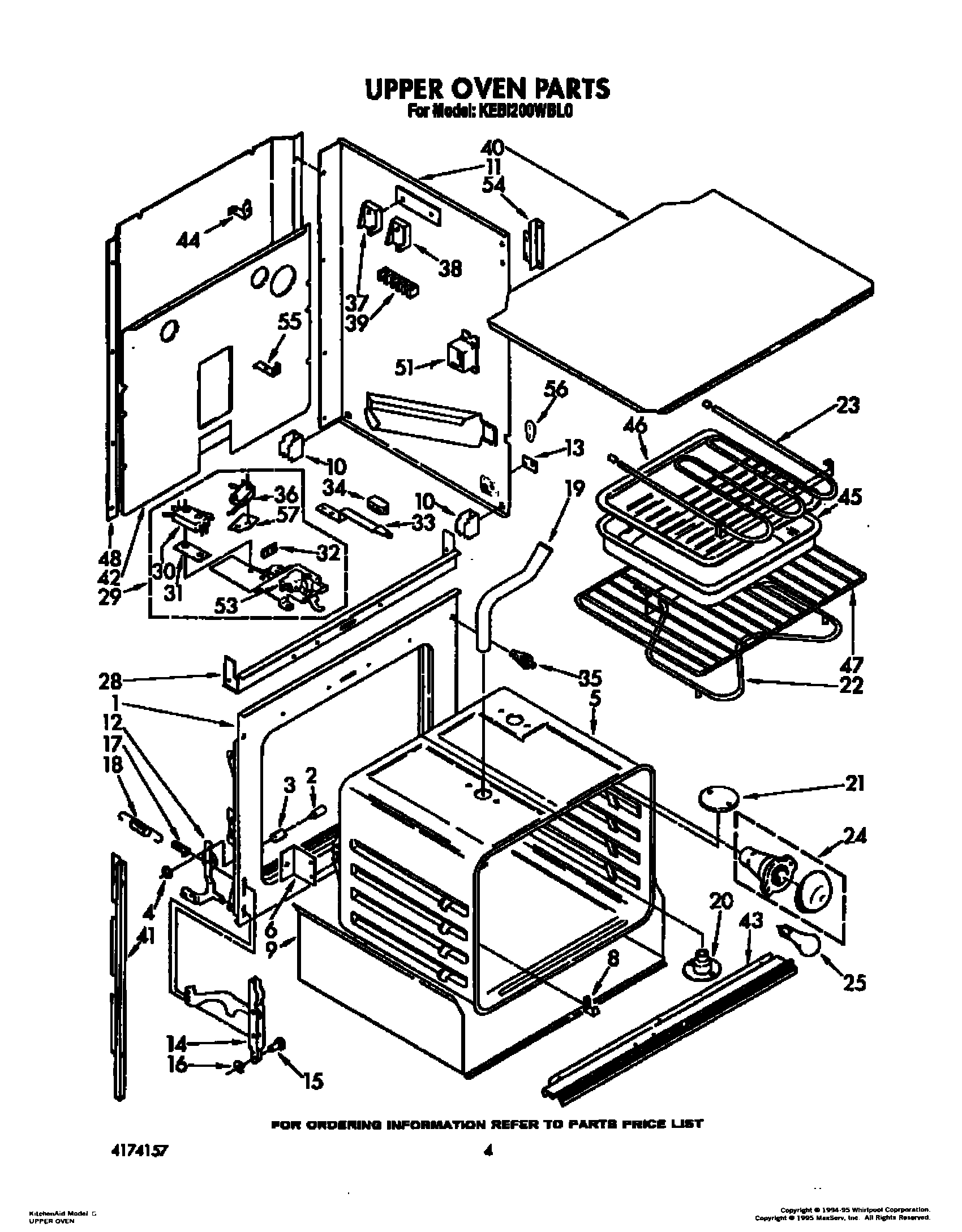

KEBI200WBL0 03 – UPPER OVEN

Products

Position	Product
1	Frame, Front
1	WP313808 Whirlpool Screw
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Screw (3)
5	Oven, 30``
6	Bracket, Oven Mounting (2)
8	98005642 Whirlpool Clip
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (R.H.)
11	Side Wrapper (L.H.)
12	Hinge Ear, R.H.
12	Hinge Ear, L.H.
13	WP308544 Whirlpool Screw
13	Plate, Side Panel (2)
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	SCREW
19	Vent, Extension (2)
20	Eliminator, Smoke
21	WPL 310662
22	Screw (2)
22	ELMNT-BAKE
23	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
28	Baffle, Top Insulation
29	Latch Assembly
30	Safety Switch
30	Screw
31	Insulator, Switch
32	Screw
32	Shield, Latch
33	Screw
33	Latch, Handle
34	Knob, Latch Handle
34	Screw, 80 x 5/16
35	Switch, Door
36	Switch, Lock
37	Sw
38	WPL 314215
38	Switch, Bake
39	WP112432 Whirlpool Nut Assembly
39	Screw (10-12 x .875)
39	WP8203546 Whirlpool Terminal Block
40	WPL 310458
41	WPL 310690
41	WPL 310686
42	Panel, Back (2)
43	Screw
43	WPL 329019
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 308172
47	WPL 308173
48	WPL 311011
51	WPL 3148688
53	WPL 3149270
54	WPL 310719
55	WPL 309102
55	WP488627 Whirlpool Refrigerator Screw
56	WPL 311982
56	WP488729 Whirlpool Refrigerator Door Screw
57	WPL 310433
57	WPL 3149328
57	WPL 310434
57	WPL 3147864
