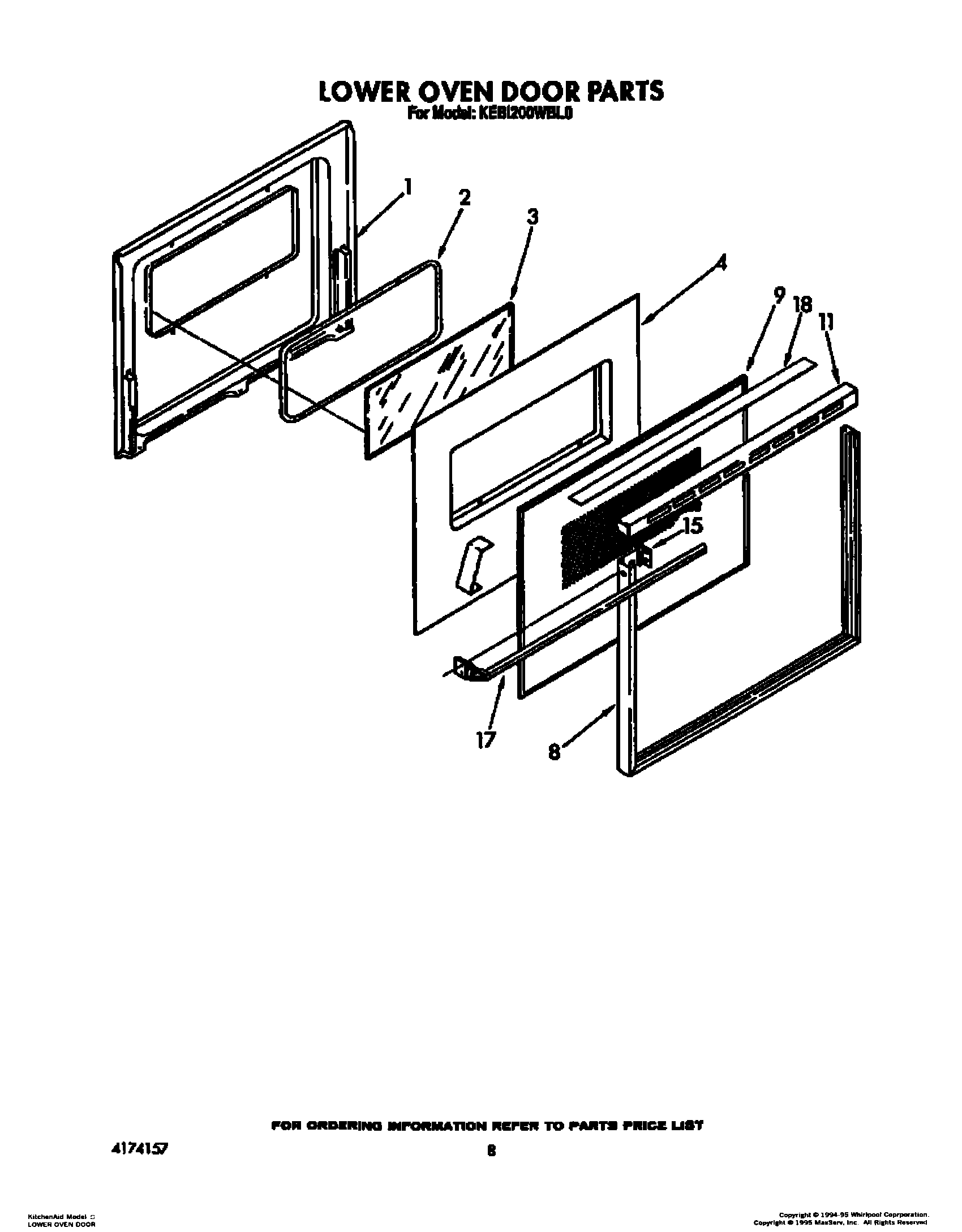

KEBI200WBL0 05 – LOWER OVEN DOORadmin2025-04-26T09:51:29+00:00KEBI200WBL0 05 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP488729 Whirlpool Refrigerator Door Screw |
| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | Seal, Door |
| 3 | Glass, Inner |
| 4 | Retainer, Insulation |
| 4 | Screw |
| 8 | Frame, Door |
| 9 | Glass, Panel (Black Model) |
| 11 | Top, Door (Black Model) |
| 15 | Clip, Mtg (2) |
| 17 | Handle, Oven Door |
| 17 | WP355515 Whirlpool Screw |
| 17 | Back Splash (Screw (4) 10AB x 1/2``) |
| 18 | Cap, Top |
