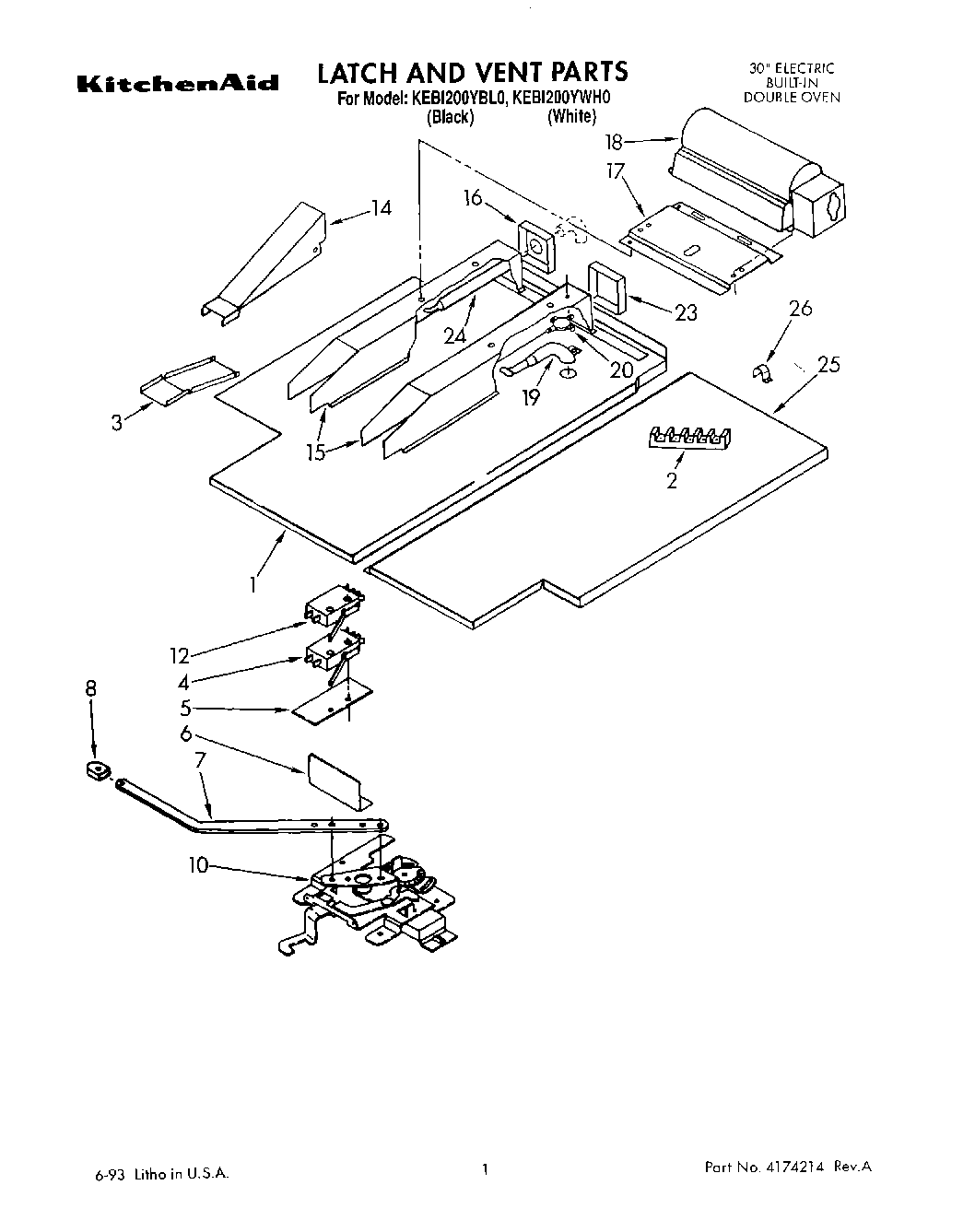

KEBI200YBL0 01 – LATCH AND VENT, LITERATURE

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Use & Care Guide
	Tech Sheet
1	Baffle, Vent
2	WP8203546 Whirlpool Terminal Block
2	Screw (10-12 x .875)
4	Switch, Latch
4	Screw (2)
5	Insulator, Switch
6	Shield, Latch
6	Screw
7	Screw
7	Handle, Latch
8	Screw
8	Knob, Latch Handle
10	Latch, Mechanism
12	Switch, latch
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Screw
15	Box, Vent (2)
16	End, Box Vent
17	Bracket, Mounting
17	WP3177991 Whirlpool Screw
18	Blower, fan
19	Tube, Vent
19	SCREW
20	SPST Thermostat
20	WP90767 Whirlpool Screw
23	End, Vent Box
24	Tube, Vent Lower Oven
25	Baffle, Vent Mtg.
26	WP488729 Whirlpool Refrigerator Door Screw
26	Clamp, Tube
