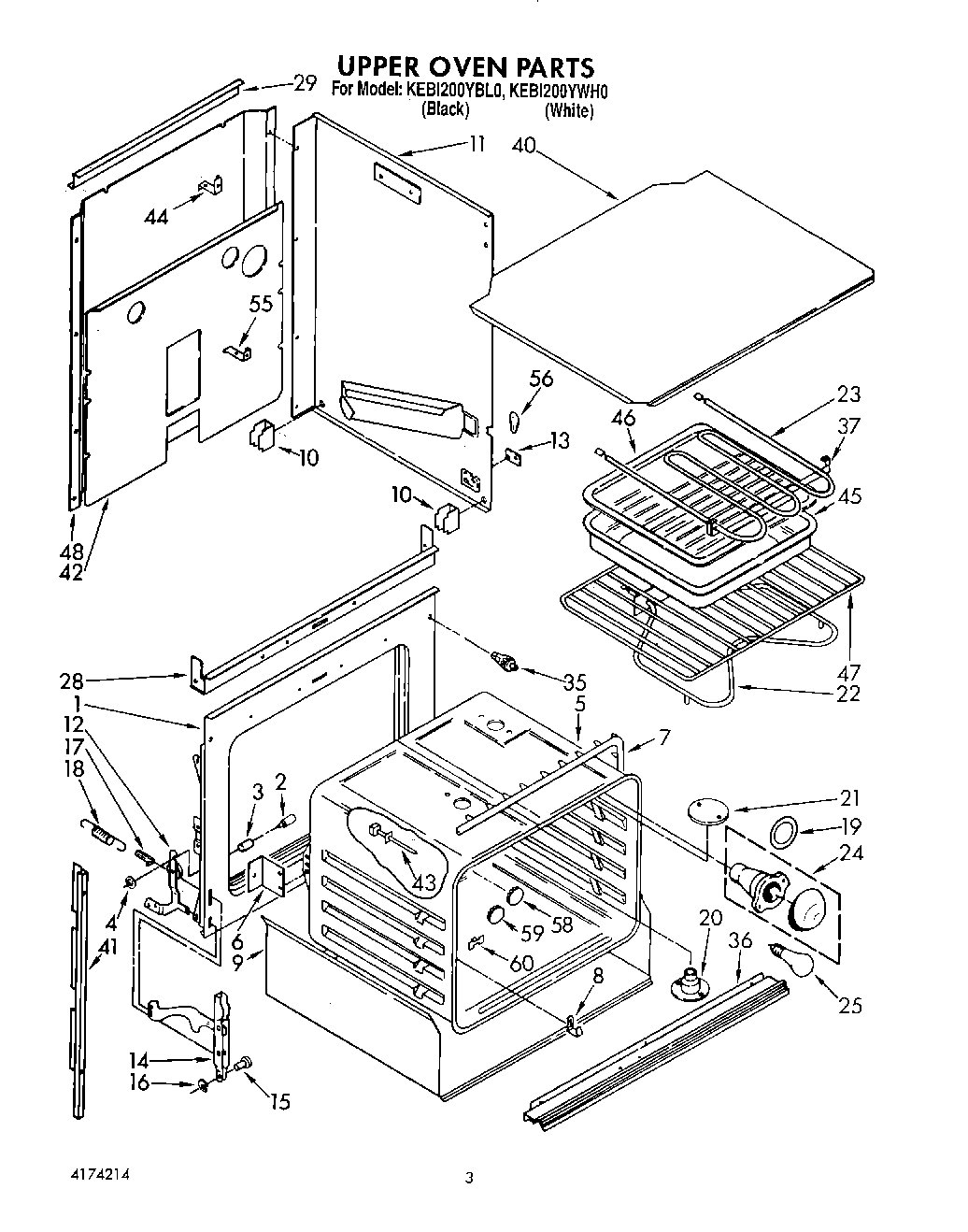

KEBI200YBL0 02 – UPPER OVEN

Products

Position	Product
1	WP313808 Whirlpool Screw
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Oven 30``
5	Screw (3)
6	Bracket, Oven Mounting (2)
6	SCREW
7	WPL 3185197
9	Insulation Tray
10	Support, Side Wrapper (4)
11	Side Wrapper (L.H.)
11	Side Wrapper (R.H.)
12	Hinge Ear, R.H.
12	Hinge Ear, L.H.
13	Plate, Side Panel (2)
13	WP308544 Whirlpool Screw
14	Channel Arm (2)
15	WP307986 Whirlpool Hinge Pin
16	Retainer Ring (2)
17	WP308125 Whirlpool Microwave Range/Cooktop Anchor
18	WP308126 Whirlpool Door Spring
19	WP3184533 Whirlpool Range Light Lens Gasket
20	Eliminator, Smoke
22	WP661416 Whirlpool Bake Element
23	Unit, Broil
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
28	Baffle, Top Insulation
29	Bracket, Mounting Control Frame
35	Switch, Door
36	Trim, Center vent (Black)
36	Vent, Center Trim (White)
36	Screw
37	Bracket, Element
37	Screw (2)
40	Cover, Top
41	WPL 310686
41	WPL 310690
42	Panel, Back
43	Sensor, Heat
44	Stand Off
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	Rack, Straight
47	Rack, Oven Offset
48	WPL 311011
55	WP488729 Whirlpool Refrigerator Door Screw
55	WPL 309102
56	WPL 310662
58	Button, Plug
59	WPL 3185086
60	WPL 3169107
60	WPL 310433
60	WPL 310435
60	WPL 3149328
