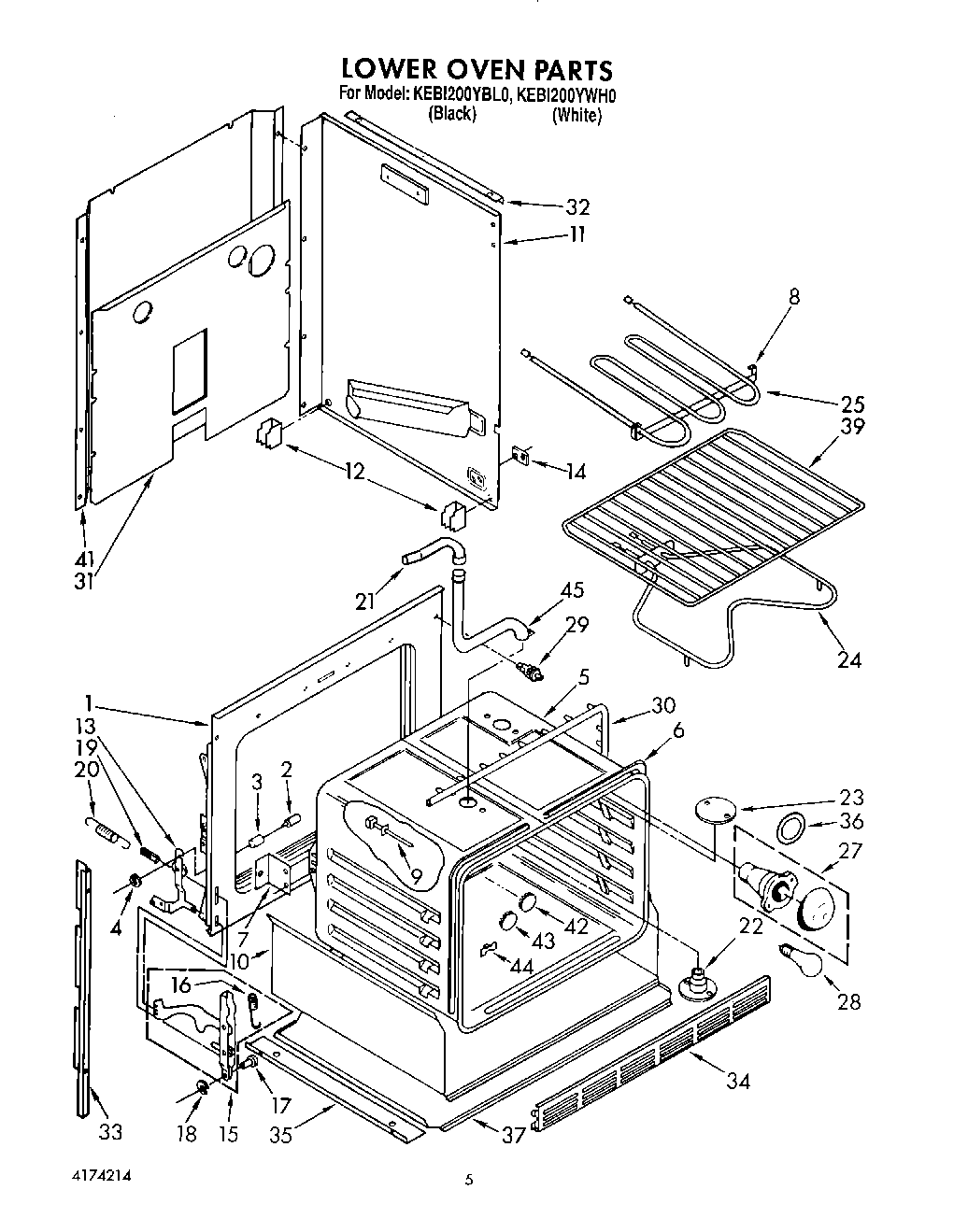

KEBI200YBL0 03 – LOWER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Screw (3)
5	Oven 30“
6	Heat Seal
7	Bracket, Oven Mounting (2)
8	Bracket, Element
9	Sensor, Heat
10	Insulation Tray
11	Side Wrapper (Left Side)
11	Side Wrapper (Right Side)
12	Support, Side Wrapper (4)
13	Hinge Ear, R.H.
13	Hinge Ear, L.H.
14	Plate, Side Panel (2)
14	WP308544 Whirlpool Screw
15	Channel Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	Tube, Vent Male
22	Eliminator, Smoke
23	WPL 310662
24	WP661416 Whirlpool Bake Element
25	Unit, Broil
25	Screw (2)
27	W11594027 Whirlpool Range Oven Light Socket
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
30	Seal, Door
31	Panel, Back
32	Support Angle (2)
33	Side Trim (Left Side)
33	Side Trim (Right Side)
34	WP488627 Whirlpool Refrigerator Screw
34	Grill, Bottom (Screw (3))
34	Grill, Bottom (Black)
34	Grill, Bottom (White)
35	Angle, Support (2)
36	WP3184533 Whirlpool Range Light Lens Gasket
37	WPL 310458
39	Rack, Straight
39	Rack, Oven Offset
41	WP488729 Whirlpool Refrigerator Door Screw
41	WPL 311013
42	Button, Plug
43	WPL 3185086
44	WPL 3169107
45	WPL 310433
45	Tube, Lower Vent
45	SCREW
45	WPL 310435
