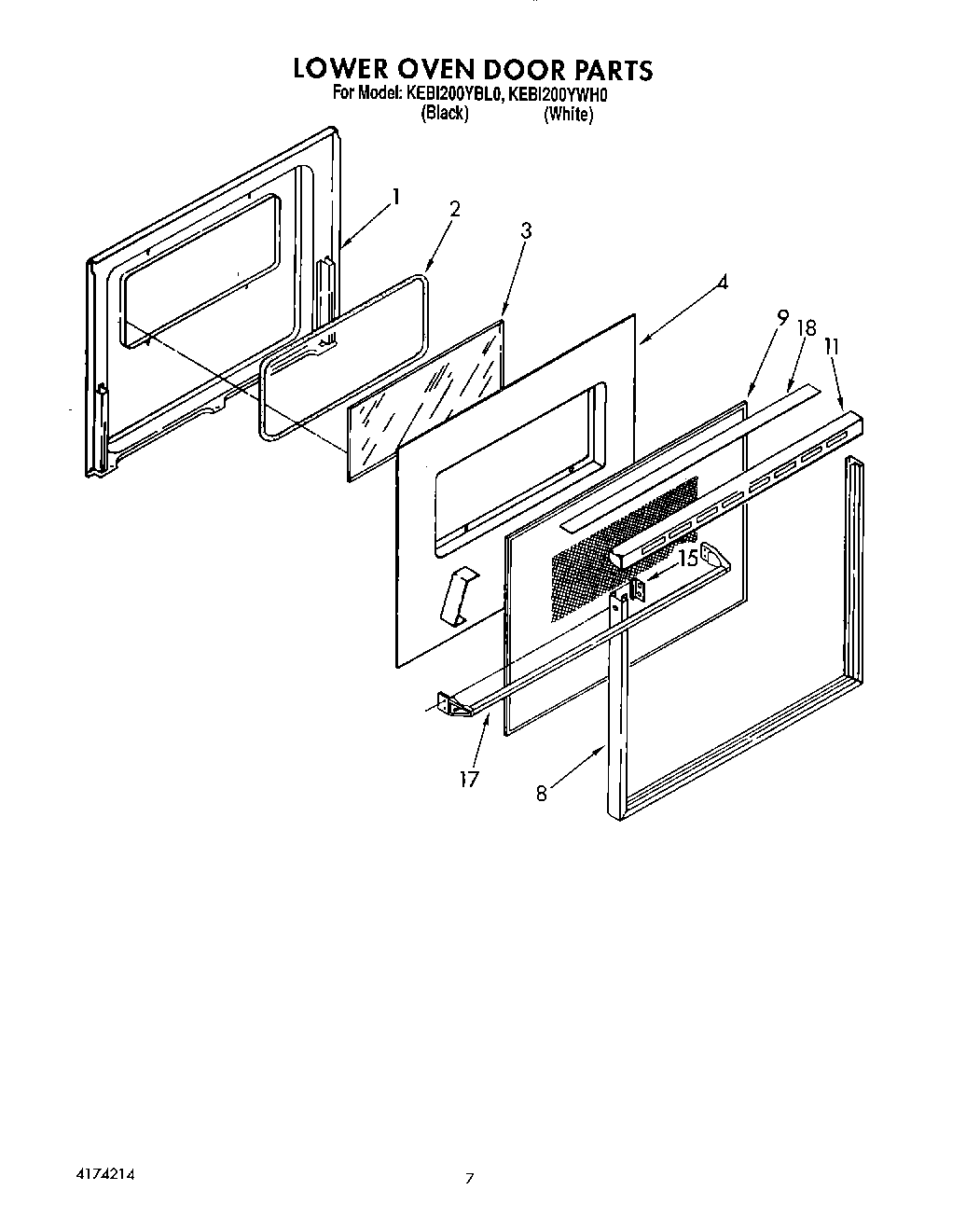

KEBI200YBL0 04 – LOWER OVEN DOOR

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
1	Screw (3)
1	Liner, Door
2	Seal, Door
3	Glass, Clear
4	Retainer, Insulation
4	Screw
8	Frame, Door
9	Glass, Panel (White Model)
9	Glass, Panel (Black Model)
11	Top, Door (White Model)
11	Top, Door (Black Model)
15	Clip, Mtg (2)
17	WP355515 Whirlpool Screw
17	Handle, Oven Door (Black Model)
17	Back Splash (Screw (4) 10AB x 1/2“)
17	Handle, Oven Door (White Model)
18	Cap, Top
