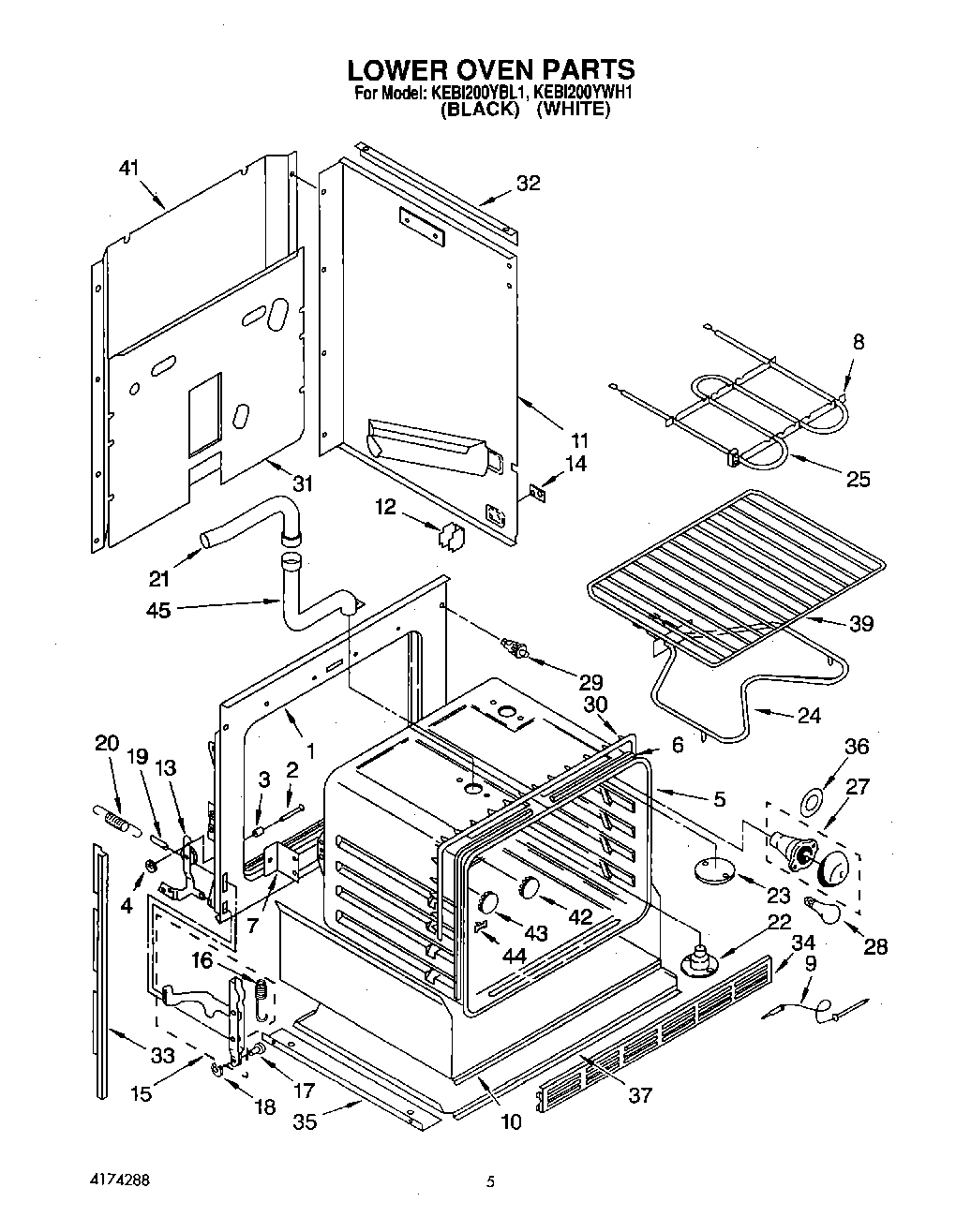

KEBI200YBL1 03 – LOWER OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Screw (3)
5	Oven 30“
6	Heat Seal
7	Bracket, Oven Mounting (2)
8	Bracket, Element
9	Sensor, Heat
10	Insulation Tray
11	Side Wrapper (Right Side)
11	Side Wrapper (Left Side)
12	Support, Side Wrapper (4)
13	Hinge, Ear (Left Side)
13	Hinge, Ear (Right Side)
14	WP308544 Whirlpool Screw
14	Plate, Side Panel (2)
15	Channel, Arm (2)
16	Spring, Door Stop (2)
17	WP307986 Whirlpool Hinge Pin
18	Retainer Ring (2)
19	WP308125 Whirlpool Microwave Range/Cooktop Anchor
20	Spring, Oven Door (2)
21	Tube, Lower Vent
22	Eliminator, Smoke
23	WPL 310662
24	WP661416 Whirlpool Bake Element
25	Screw (2)
25	Unit, Broil
27	W11594027 Whirlpool Range Oven Light Socket
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Door
30	Seal, Door
31	Panel, Back
32	Support Angle (2)
33	Side Trim (Left Side)
33	Side Trim (Right Side)
34	WP488627 Whirlpool Refrigerator Screw
34	Grill, Bottom (Screw (3))
34	Grill, Bottom (Black)
34	Grill, Bottom (White)
35	Angle, Support (2)
36	WP3184533 Whirlpool Range Light Lens Gasket
37	WPL 310458
39	Rack, Straight
41	WPL 311013
41	WP488729 Whirlpool Refrigerator Door Screw
42	Button, Plug
43	WPL 3185086
44	WPL 3169107
45	SCREW
45	WPL 310435
45	Tube, Vent Male
45	WPL 310433
