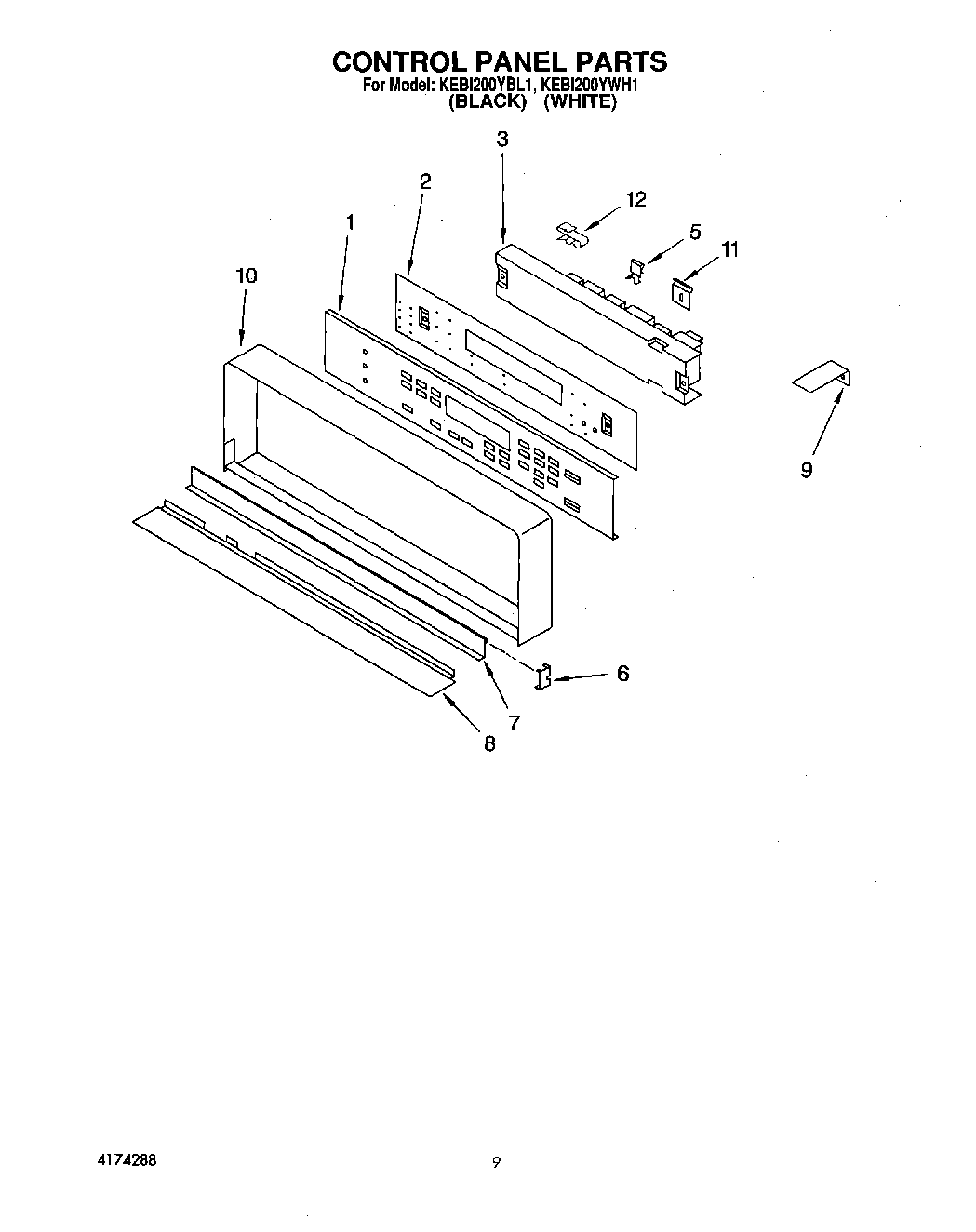

KEBI200YBL1 06 – CONTROL PANEL

Products

PositionProduct
1Membrane, Switch (Black)
1Membrane, Switch (White)
2Bracket, Mounting Switch Membrane
3Microcomputer
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (White)
7Door, Latch Handle (Black)
7Door, Latch Handle (Screw (2))
8Trim, Panel
8WP90767 Whirlpool Screw
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
12Clip, Tube
