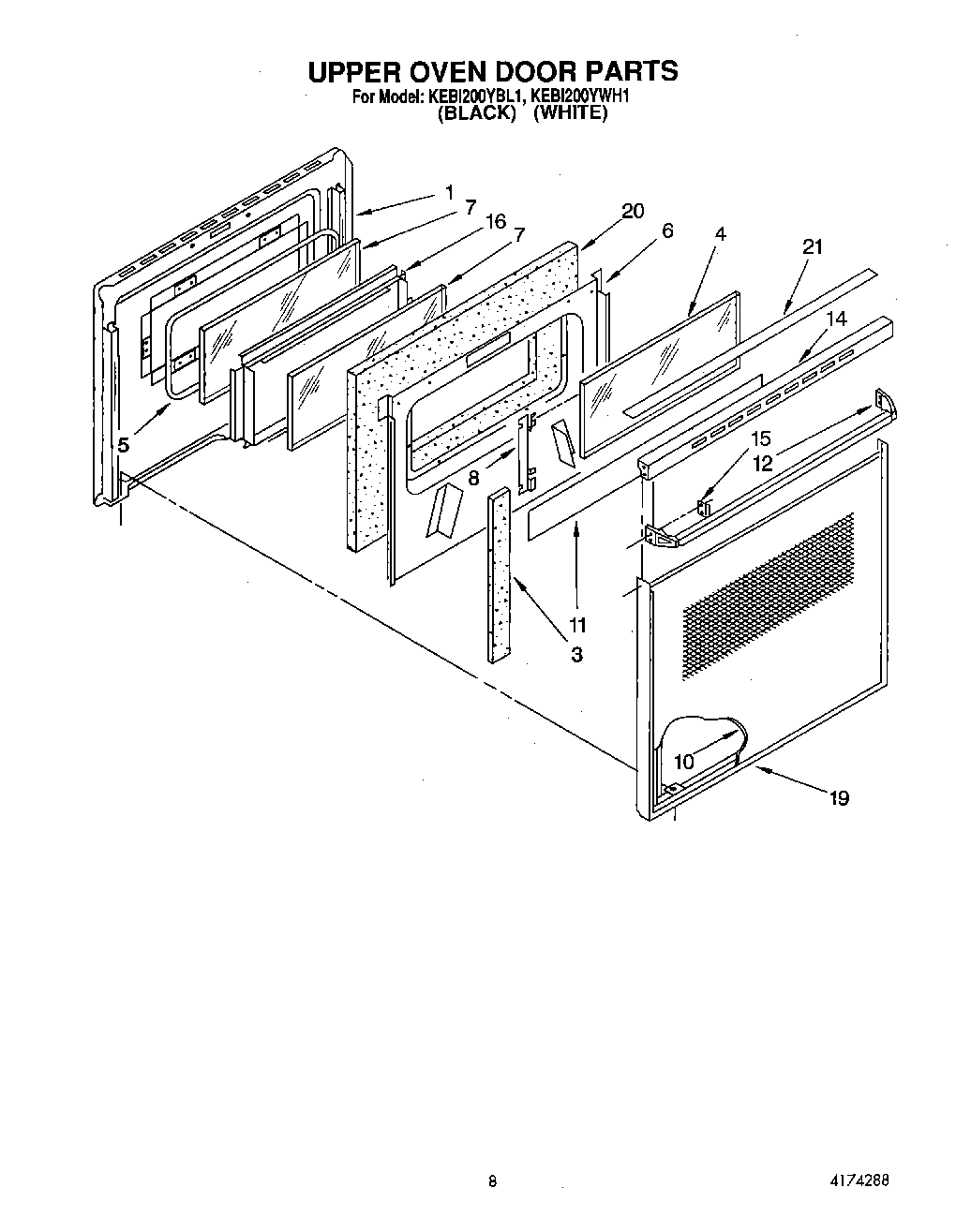

KEBI200YWH1 05 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door (Black Model)
12	Handle, Oven Door (White Model)
14	WP355515 Whirlpool Screw
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
