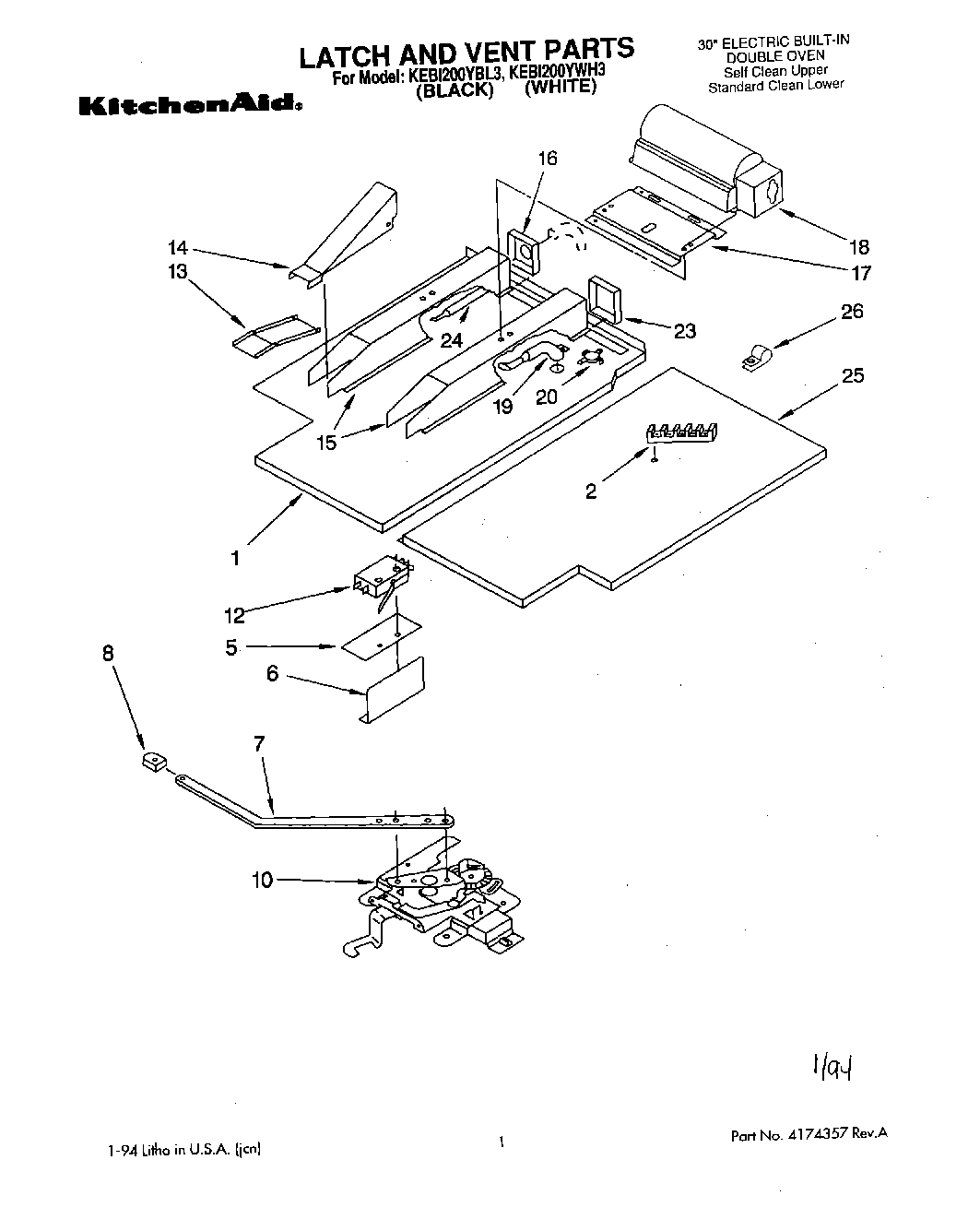

KEBI200YWH3 01 – LATCH AND VENT, LITERATURE

KEBI200YWH3 01 – LATCH AND VENT, LITERATURE

Written by

in

KEBI200YWH3 01 – LATCH AND VENT, LITERATURE

Products

PositionProduct
Tech Sheet
Installation Instructions
Use & Care Guide
1Baffle, Vent
2Screw (10-12 x .875)
2WP112432 Whirlpool Nut Assembly
2WP8203546 Whirlpool Terminal Block
5Screw
5Insulator, Switch
6Shield, Latch
6Screw
7Screw
7Handle, Latch
8Knob, Latch Handle
8Screw
10Latch Mechanism
12Switch, Latch
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Screw
15Screw, 8-18 X 3/4 (4)
15Box, Vent (2)
16End, Box Vent
17Bracket, Mounting
17WP3177991 Whirlpool Screw
18Blower, fan
19SCREW
19Tube, Vent
20SPST Thermostat
23End, Vent Box
24Tube, Vent Lower Oven
24Screw
25Baffle, Vent Mtg.
26Clamp, Tube
26WP488729 Whirlpool Refrigerator Door Screw
