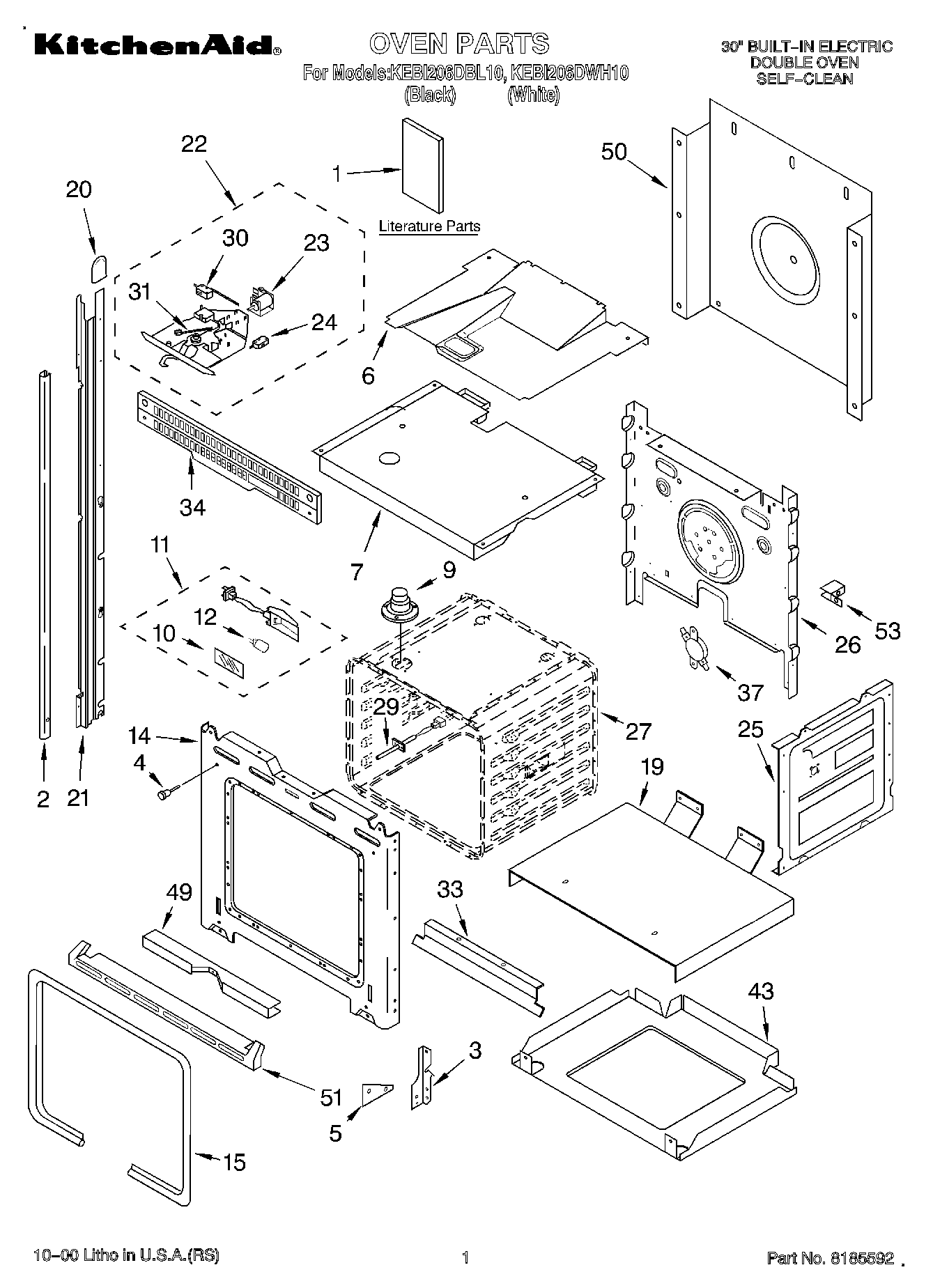

KEBI206DWH10 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Easy Set Guide)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (LH Black)
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (RH Black)
2	WP8281236 Whirlpool Screw
2	Trim, Side (White)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Frame, Front
14	Screw
14	WP4450118 Whirlpool Nut
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Microswitch
31	Spring, Latch
33	WPL 4451619
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
43	WPL 4455530
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	WP3400832 Whirlpool Screw
51	WPL 4448478
51	WPL 4448477
53	WPL 4450365
53	WPL 4449845
53	WP4449809 Whirlpool Screw
53	W11684730 Whirlpool Insulation
