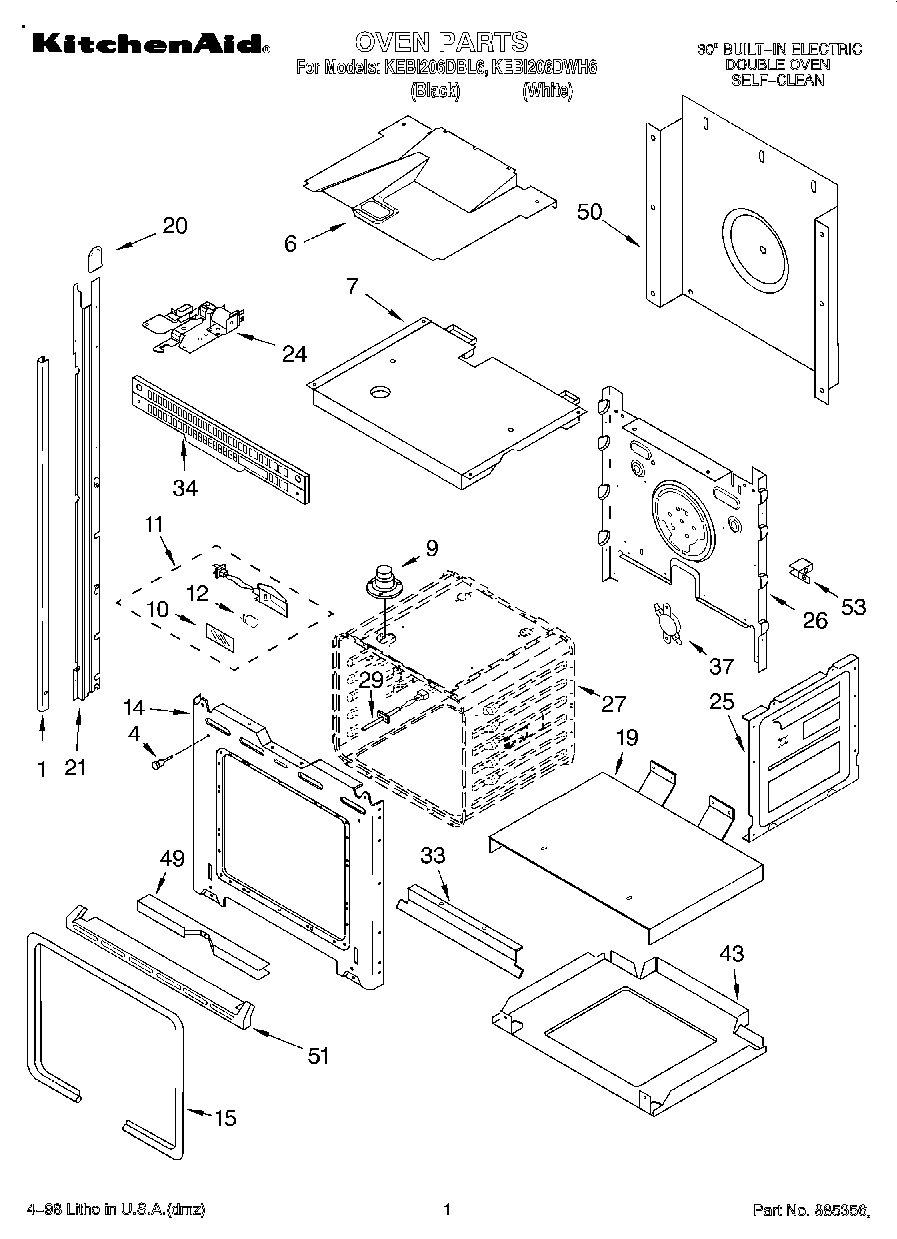

KEBI206DWH6 01 – OVEN

KEBI206DWH6 01 – OVEN

Written by

in

KEBI206DWH6 01 – OVEN

Products

PositionProduct
1Trim, Side (RH Black)
1Trim, Side (LH Black)
1Trim, Side (Left Hand)) (White Model)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (Right Hand) (White Model)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814373 Whirlpool Oven Rail Mount
24Microswitch
24Micro Switch N.C.
24Solenoid
24Latch Assembly
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
33WPL 4451619
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (White Model)
51Screw, (2)
51Trim, Bottom (Black Model)
53WPL 4449845
53W11684730 Whirlpool Insulation
53WPL 4450365
53WP4449809 Whirlpool Screw
