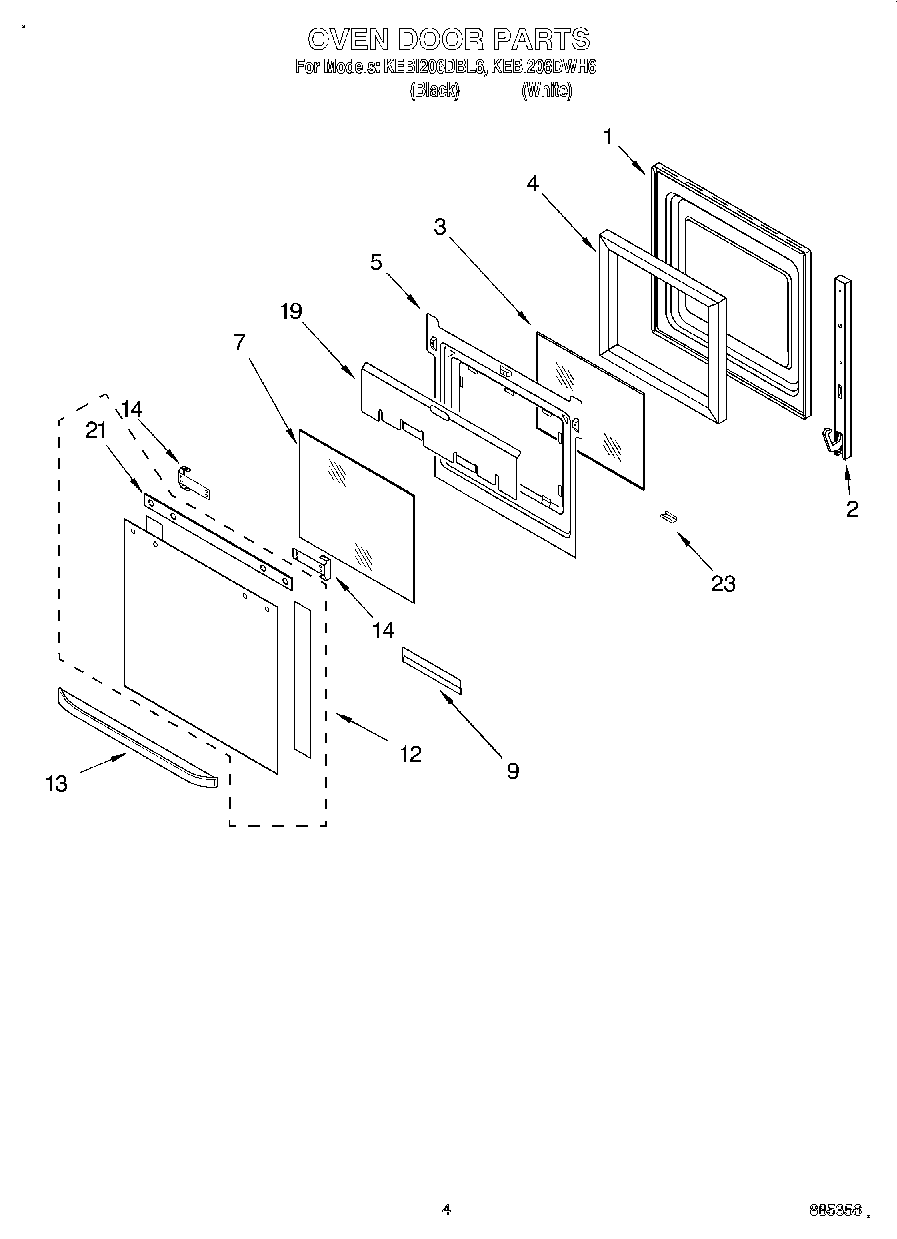

KEBI206DWH6 03 – OVEN DOOR
Written by
in
KEBI206DWH6 03 – OVEN DOOR
Products
Position
Product
1
WP9759413 Whirlpool Door Liner
2
WP4449743 Whirlpool Screw
2
WP4455524 Whirlpool Door Hinge
3
WP4449259 Whirlpool Glass Window
4
WP4451722 Whirlpool Door Insulation Assembly
5
Retainer, Glass
7
WP4449263 Whirlpool Inner Door Glass
9
Retainer, Glass
12
Door Glass, Assy (White Model)
12
WP9759641 Whirlpool Outer Door Glass
13
Handle, Door (White Model)
13
Door Handle (Black Model)
14
Screw
14
Bracket, Handle
19
WP4449809 Whirlpool Screw
19
Shield, Heat
21
Seal, Door Top
23
Clip, Retainer (Black Model)
23
Clip, Retainer (White Model)
←
