KEBI206DWH6 05 – TOP VENTING, OPTIONAL

KEBI206DWH6 05 – TOP VENTING, OPTIONAL

Written by

in

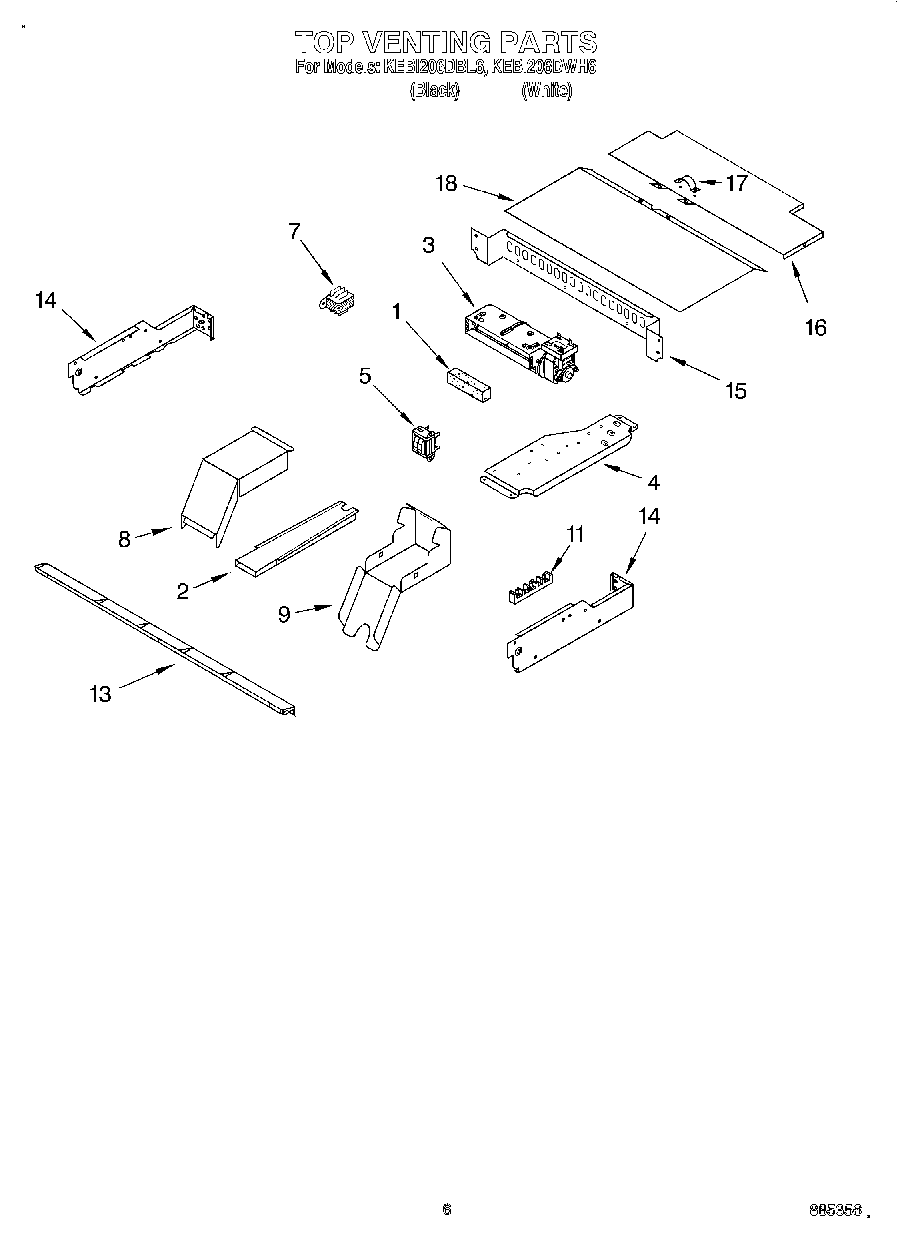

KEBI206DWH6 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WPW10016550 Whirlpool Blower Cooling Fan
4Plate, Mounting
5WP9760588 Whirlpool Transformer
7Transformer
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Orange)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
18261900 Whirlpool Microwave Spray
18WPL 591014
181
184451761 Whirlpool Oven Support Bracket
18WP4452367 Whirlpool Top Cover
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18WPW10339879 Whirlpool Wire Tie
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
18285006 Whirlpool Spray
1872032 Whirlpool Touch Up Paint Black
18WP482338 Whirlpool Refrigerator Adhesive
18242831 Whirlpool Oven Wire
18WP4456654 Whirlpool Thermal Fuse
18Spacer, Harness
1816515 Whirlpool Clip
18Harness, Wire (Main)
18Conduit, Double
18WPL 4452239
18WP4448950 Whirlpool Screw
18814381 Whirlpool Pin
18350930 Whirlpool White Spray Paint
