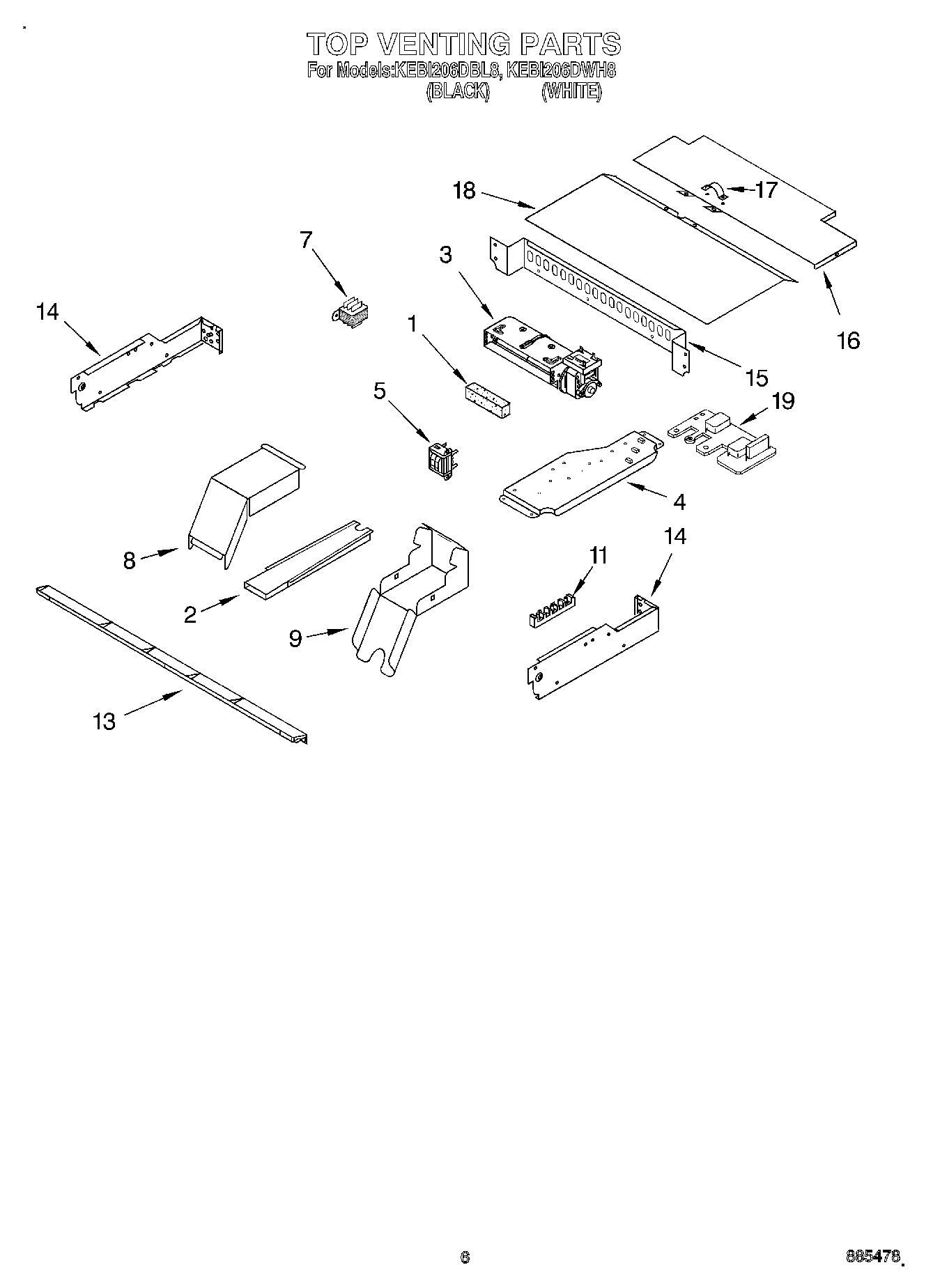

KEBI206DWH8 05 – TOP VENTING, OPTIONAL

KEBI206DWH8 05 – TOP VENTING, OPTIONAL

Written by

in

KEBI206DWH8 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WP4455352 Whirlpool Mounting Bracket
3Blower
34455191 Whirlpool Oven Mounting Plate
3WPW10016550 Whirlpool Blower Cooling Fan
4Plate, Mounting
5WP9760588 Whirlpool Transformer
7Transformer
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11WP3400016 Whirlpool Screw Assembly
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
194451761 Whirlpool Oven Support Bracket
1918 Ga. 80~c Rating (Red)
19Harness, Wire (Main)
19Wire (12 Ga. 150 c Black)
19Wire (14 Ga. 200 c Brown)
191
19WPL 591014
19261900 Whirlpool Microwave Spray
19Harness, Wire (Latch)
19WP4451985 Whirlpool Noise Filter Board
19Wire, 25“ Roll (White 14 GA.)
19Wire (14 Ga. 150 c Yellow)
19Wire (14 Ga. 150 c Orange)
19WP482338 Whirlpool Refrigerator Adhesive
1972032 Whirlpool Touch Up Paint Black
19285006 Whirlpool Spray
19WPW10339879 Whirlpool Wire Tie
194450800 Whirlpool Oven Screw
194448664 Whirlpool Oven Mounting Bracket
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19WP112432 Whirlpool Nut Assembly
19WP4449809 Whirlpool Screw
19350930 Whirlpool White Spray Paint
19814381 Whirlpool Pin
19Wire (14 Ga. 150 c Green)
19Spacer, Harness
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
19WP4456654 Whirlpool Thermal Fuse
1916515 Whirlpool Clip
19Conduit, Double
19WP4448950 Whirlpool Screw
1972017 Whirlpool Appliance Touch-Up Paint White
