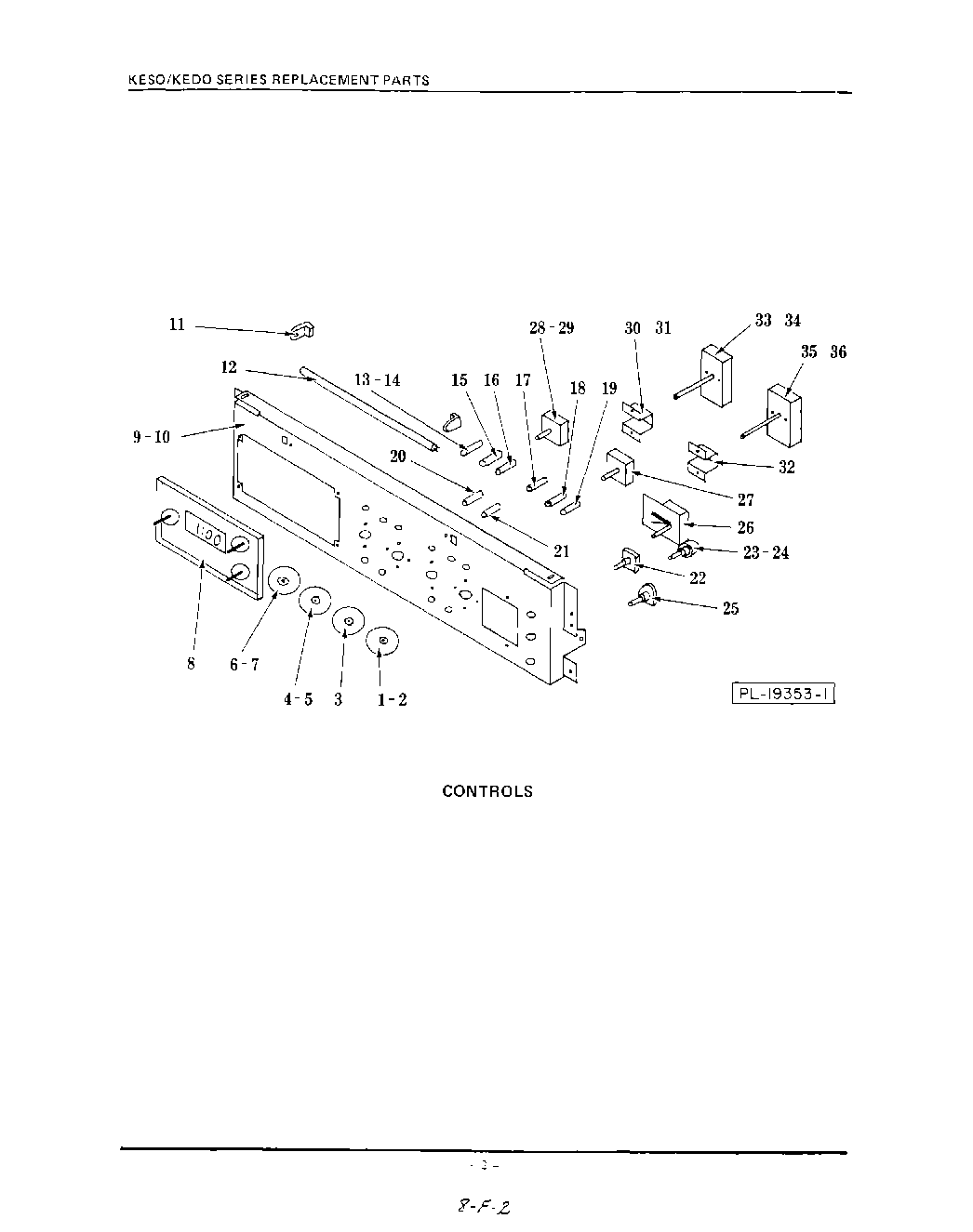

KEBI240SBL0 02 – CONTROLS

KEBI240SBL0 02 – CONTROLS

Written by

in

KEBI240SBL0 02 – CONTROLS

Products

PositionProduct
1Thermostat Disc, Lower Oven KEDO-240/270
4Thermostat Disc, Single or Upper Oven KESO-140/170, KEDO-240/270
5Thermostat Disc, Single or Upper Oven KESO-145/175, KEDO-245/275
6Selector Disc, Single or Upper Oven KESO-140/170, KEDO-240/270
7Selector Disc, Single or Upper Oven KESO-145/175, KEDO-245/275
8Clock
9Control Mounting Panel KESO-140/145 KEDO-240/245
10Control Mounting Panel KESO-170/175 KEDO-270/275
11Lamp Socket KESO-145/175, KEDO-245/275
12Lamp, 8 W Fluorescent KESO-145/175, KEDO-245/275
17Indicator Light, Oven (Lower Oven)
19Indicator Light, Lock (Lower Oven) KEDO-245/275
21Indicator Light, Service KESO-
22WPL CC71009
23WPL CC11262
25WPL CC14058
26WPL 305004
28WPL CC70723
29WPL CC305001
30WPL CC70835
32WPL CC31951
33WPL CC32473
34WPL CC32471
35WPL 305250
36WPL CC32472
