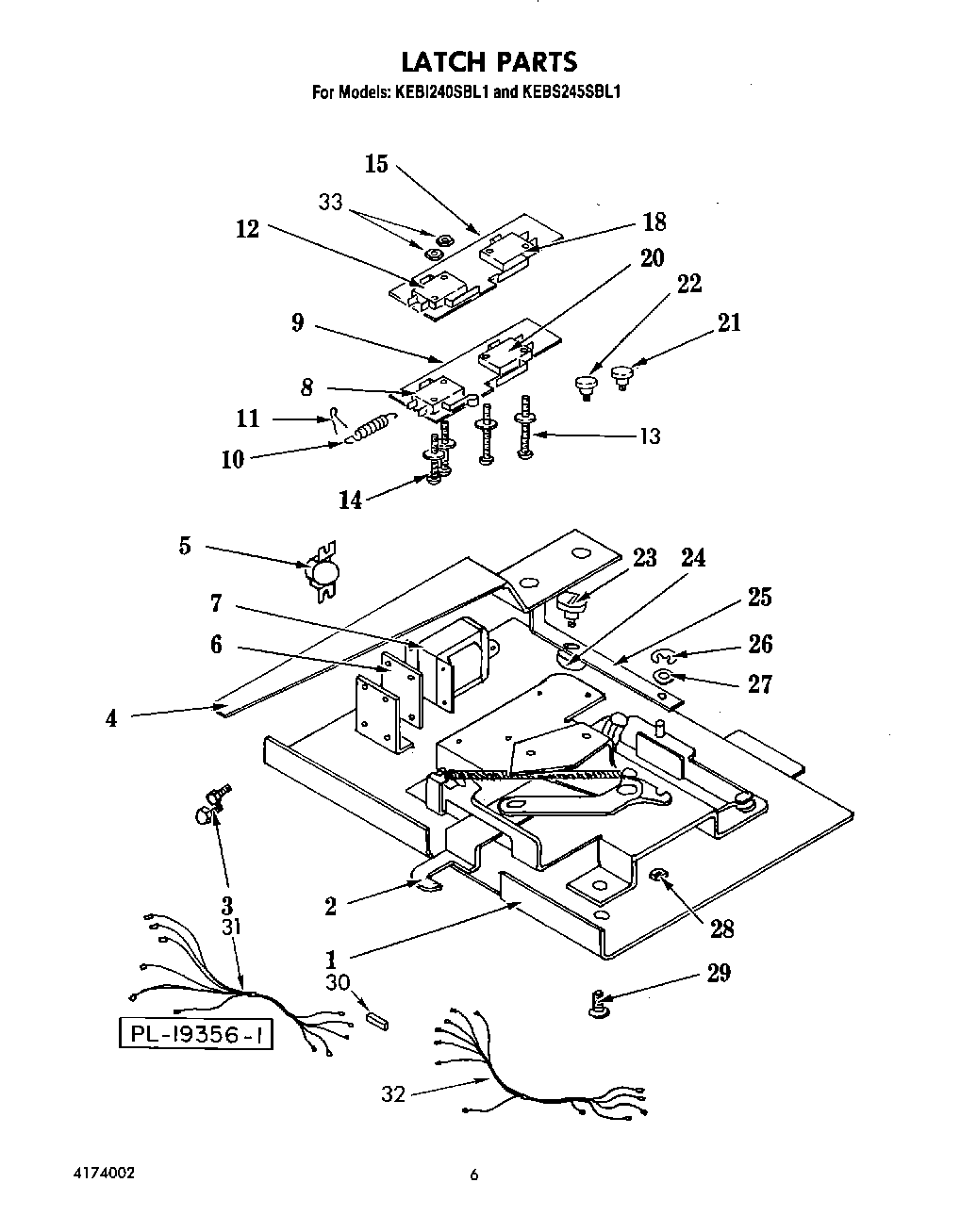

KEBI240SBL1 05 – LATCH PARTS

KEBI240SBL1 05 – LATCH PARTS

Written by

in

KEBI240SBL1 05 – LATCH PARTS

Products

PositionProduct
1Latch Mounting Plate
2Mechanism, Latch
3Screw, No.10-24 X 3/8“ Hex TCS
4Latch Lever
5Thermal Switch
6Solenoid Spacer
7Solenoid
10Solenoid Spring
11Cotter Pin
12Latch Switch (2)
12Latch Switch, Normally Open
13Screw, No.4-40 X 1 1/4“ Hex
14Screw, No.4-40 X 5/8 Model KEBI240SBL1
15Insulator
15Insulator (2)
18Latch Switch (Model KEBS245SBL1)
20Latch Switch With Roller
21Shoulder Screw Latch Lever Upper Oven
22Shoulder Screw, Latch Lever Lower Oven Model KEBS245SBL1
23Shoulder Screw, Actuator Arm
24Spacer, Actuator Arm
25Actuator Arm
26Retaining Ring
27Washer, Flat
28Nut, No.10-24 Hex Kep
29Screw, No.10-24 X 3/8“ PTHMS
30Spacer, Latch Lever (Lower Oven) Model KEBS245SBL1
31Wiring Harness, Latch Switch ((Use With Robert-Shaw Thermostat) Model KEBS145SBL1)
31Wiring Harness, Latch Switch ((Use With G.E. Thermostat) Model KEBS145SBL1)
32Wiring Harness, Latch Switch
33Nut (2)
