KEBI240SBL1 07 – CABINET
Written by
in

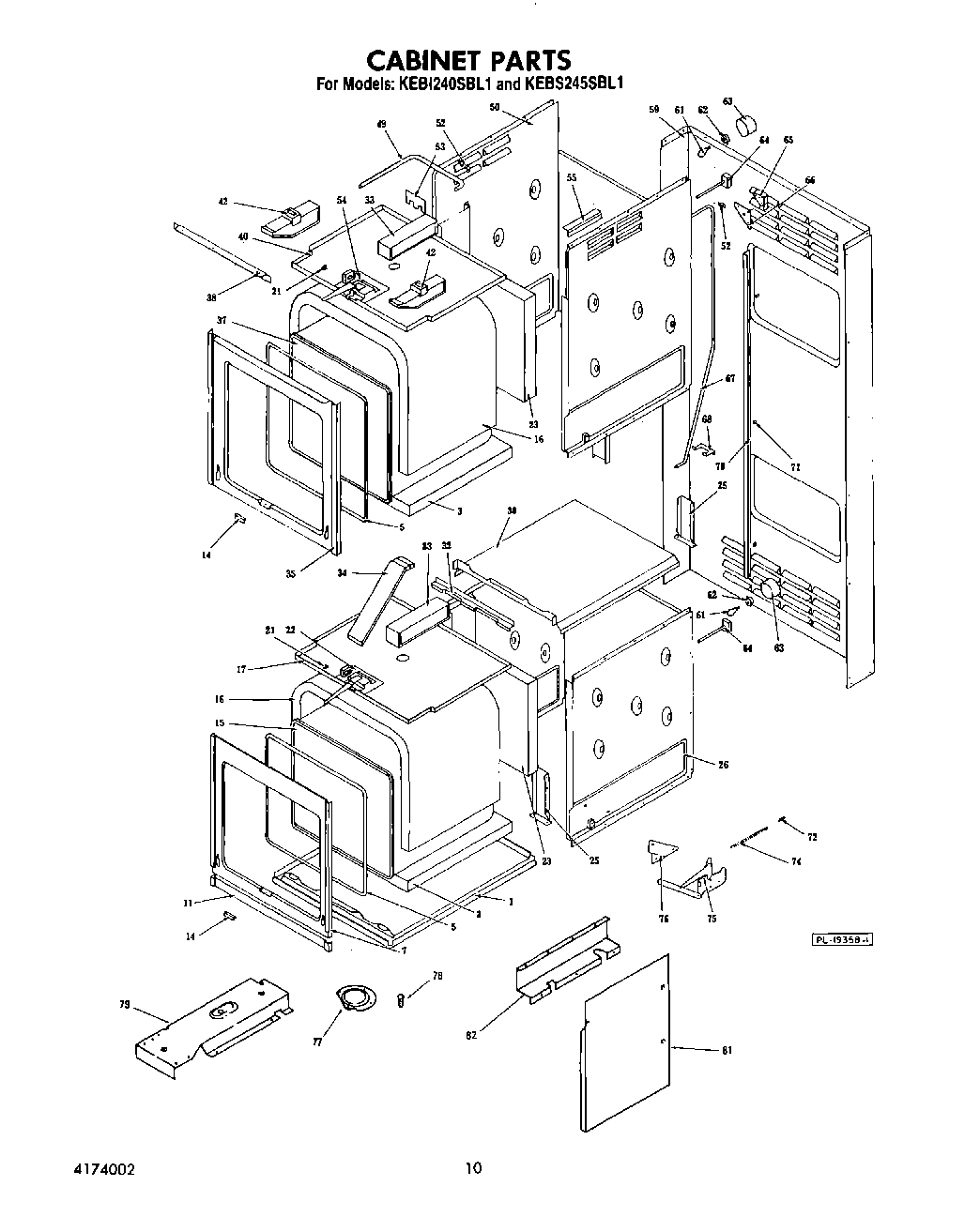

KEBI240SBL1 07 – CABINET
Products
Position
Product
1
Main Bottom
3
Insulation, Bottom
5
Door Gasket, Upper And Lower Oven
7
Front Frame, Lower Oven
7
Front Frame (Lower Oven Model KEBS245SBL1)
11
Bottom Trim
14
Cover, Seal End
15
Oven Liner (Lower Oven) (See Pages Further Breakdown)
16
Insulation, Top and Sides
21
Knob, Latch Lever
22
Latch Assembly (See Latch Parts Page For Further Breakdown)
23
Insulation, Rear
25
Rear Anchor
26
Cabinet Side (Lower Oven)
26
Cabinet Side ((Lower Oven) Model KEBS245SBL1)
30
Upper Oven Support
32
Front Frame Support
33
Collector Box
34
Compartment Vent Duct<
35
Front Frame, Upper Oven
37
Oven Liners (Upper Oven) (See Liner Parts Page For Further Breakdown)
38
Control Frame Support
40
Compartment Top (Upper Oven)
42
Vent Box
49
Vent Tube (Upper Oven)
50
Cabinet Side (Upper Oven)
52
Conduit Clamp
53
Vent Tube Mounting Bracket
54
Latch Parts (See Pages Further Breakdown)
55
Cabinet Side Extension
59
Cabinet Back
61
RANGE ONLY 40W 120V APPL BULB
62
Socket, Lamp
63
Light Shield
64
RT Thermostat
65
Rotisserie Motor
66
Rotisserie Motor Mounting Plate
67
Vent Tube, Lower Oven
68
Vent Tube, Retainer
70
Cabinet Support (Right)
70
Cabinet Support (Left)
71
Spacer
72
Spring, Anchor
74
Door Spring (Self Cleaning Oven)
74
WPL 4168878
75
Hinge Assembly
76
Cam Plate (Right)
76
Cam Plate (Left Left)
77
Probe Cover
78
Vent, Lower Trim (Screw (2))
79
Air Duct (Upper Oven) (Left)
79
Air Du
79
Air Duct (Upper Oven) (Right)
79
Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
81
WPL 4173016
81
WPL 4173017
82
WPL 4173015
←
