KEBI241BBL0 03 – UPPER OVEN, OPTIONAL

KEBI241BBL0 03 – UPPER OVEN, OPTIONAL

Written by

in

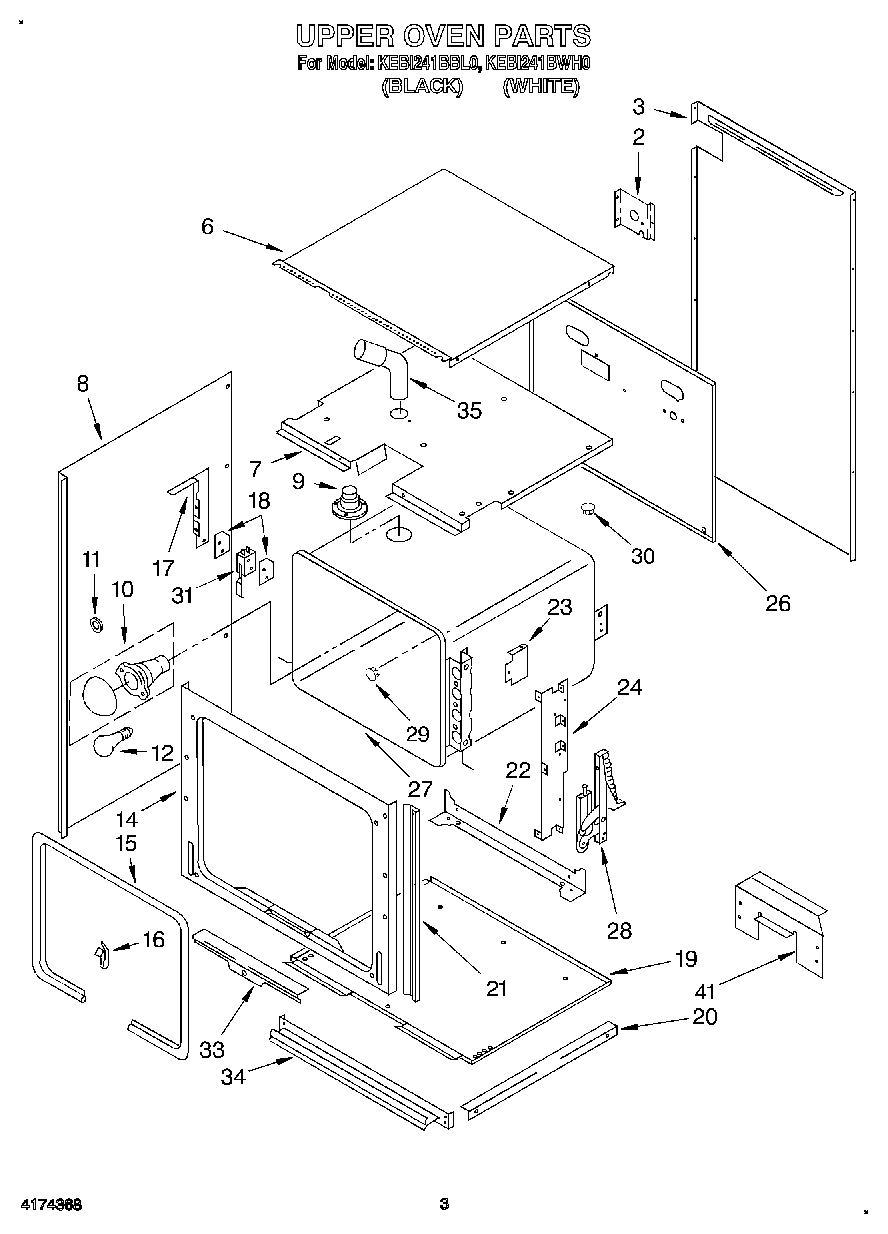

KEBI241BBL0 03 – UPPER OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Side Trim, Door (2) (White Model)
21	Trim, Door Side (2) (Black Model)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
26	Screw
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
30	Button, Plug
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (White Model)
34	Vent, Middle Trim (Black Model)
35	Tube, Vent
41	18 Ga. 80~c Rating (Red)
41	Wire (14 Ga. 150 c Blue)
41	Wire (14 Ga. 150 c Green)
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Orange)
41	Wire (14 Ga. 150 c Yellow)
41	WPL 3171507
41	WPL 832985
41	WPL 591014
41	WPL 350806
41	WPL 3185550
41	Wire (12 Ga. 150 c Black)
41	WPL 3177870
41	1
41	WP261869 Whirlpool Microwave Paint
41	Wire (14 Ga. 200 c Brown)
41	WPL 3182584
41	242831 Whirlpool Oven Wire
41	Golden Harvest (Uncut)
41	Toast
41	Golden Harvest
41	72113 Whirlpool Touch-Up Paint
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	Almond (Uncut)
41	Leveler (Thinner)
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	72017 Whirlpool Appliance Touch-Up Paint White
41	350956 Whirlpool Spray Assembly
41	Paint, Spray (13 Oz.) (Platinum)
41	Enamal, Toast (1 Qt. Uncut)
41	WP482338 Whirlpool Refrigerator Adhesive
41	72032 Whirlpool Touch Up Paint Black
41	285006 Whirlpool Spray
41	Wire, 25“ Roll (White 14 GA.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25` Roll (Black 14 Ga.)
41	WPL 799832
41	350942 Whirlpool Spray Paint
41	WPL 72112
41	Platinum (Uncut)
41	350930 Whirlpool White Spray Paint
