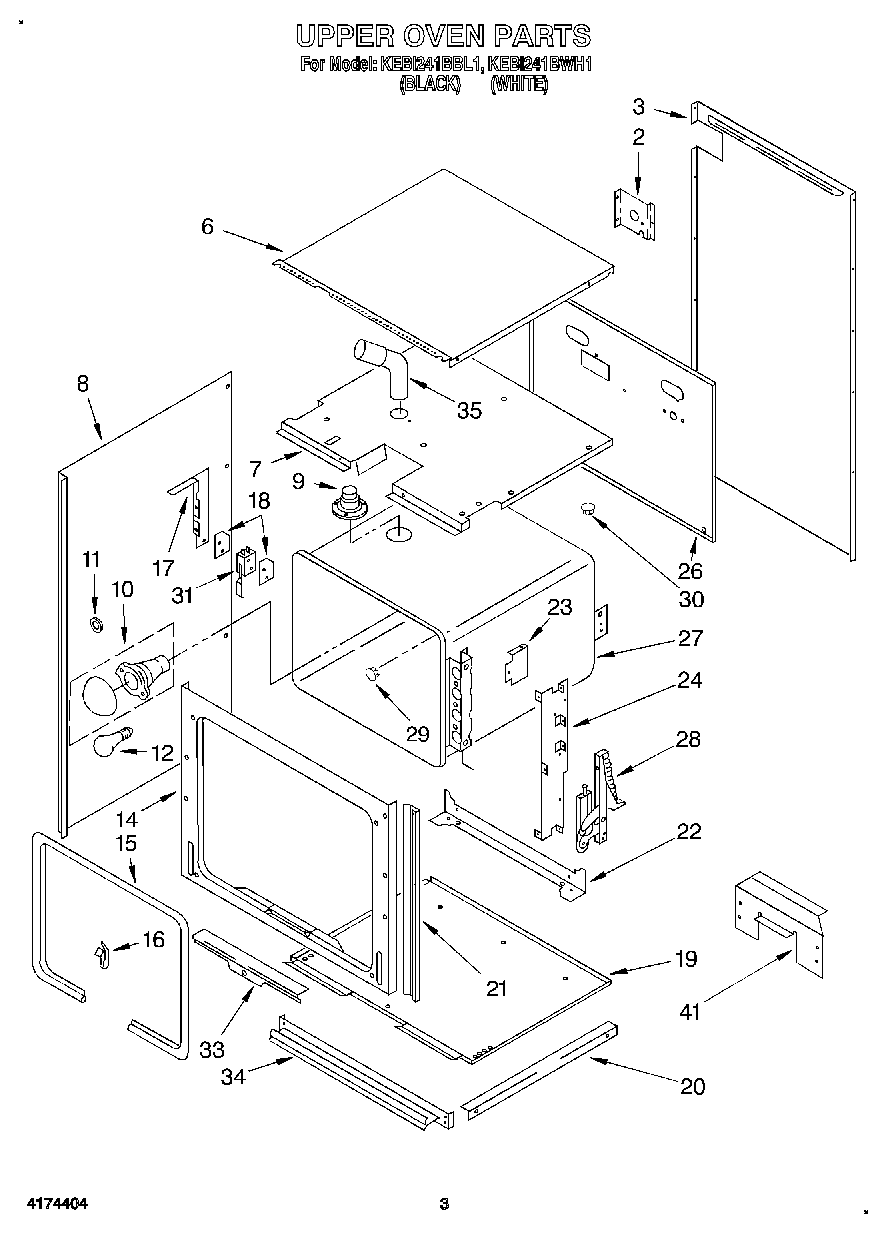

KEBI241BBL1 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Side Trim, Door (2) (White Model)
21	Trim, Door Side (2) (Black Model)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
26	Screw
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Nut (2)
31	Screw (2)
31	Switch, Door
33	Vent, Lower Trim (Screw (2))
33	Retainer, Seal
34	Vent, Middle Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (White Model)
34	Vent, Middle Trim (Black Model)
35	Tube, Vent
41	WPL 3185550
41	WPL 3182584
41	WPL 3177870
