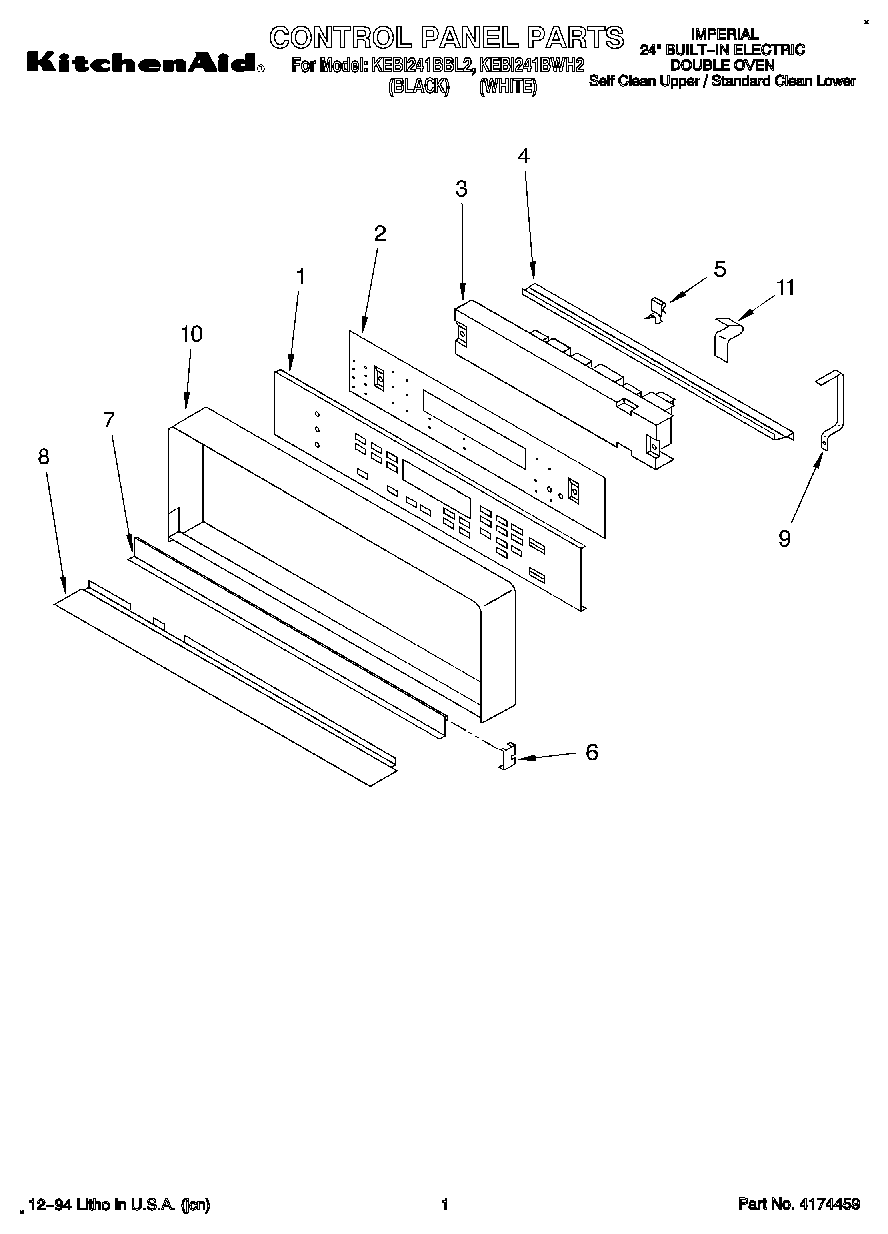

KEBI241BBL2 01 – CONTROL PANEL

KEBI241BBL2 01 – CONTROL PANEL

Written by

in

KEBI241BBL2 01 – CONTROL PANEL

Products

PositionProduct
1Membrane, Switch (White Model)
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (2)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Screw (2))
7Door, Latch Handle (White)
7Door, Latch Handle (Black)
8Screw
8Trim, Panel
9Screw (2)
9Bracket (2)
10Frame, Control Panel (Black Model)
10Frame, Control Panel (White Model)
11Clip, Control Frame
