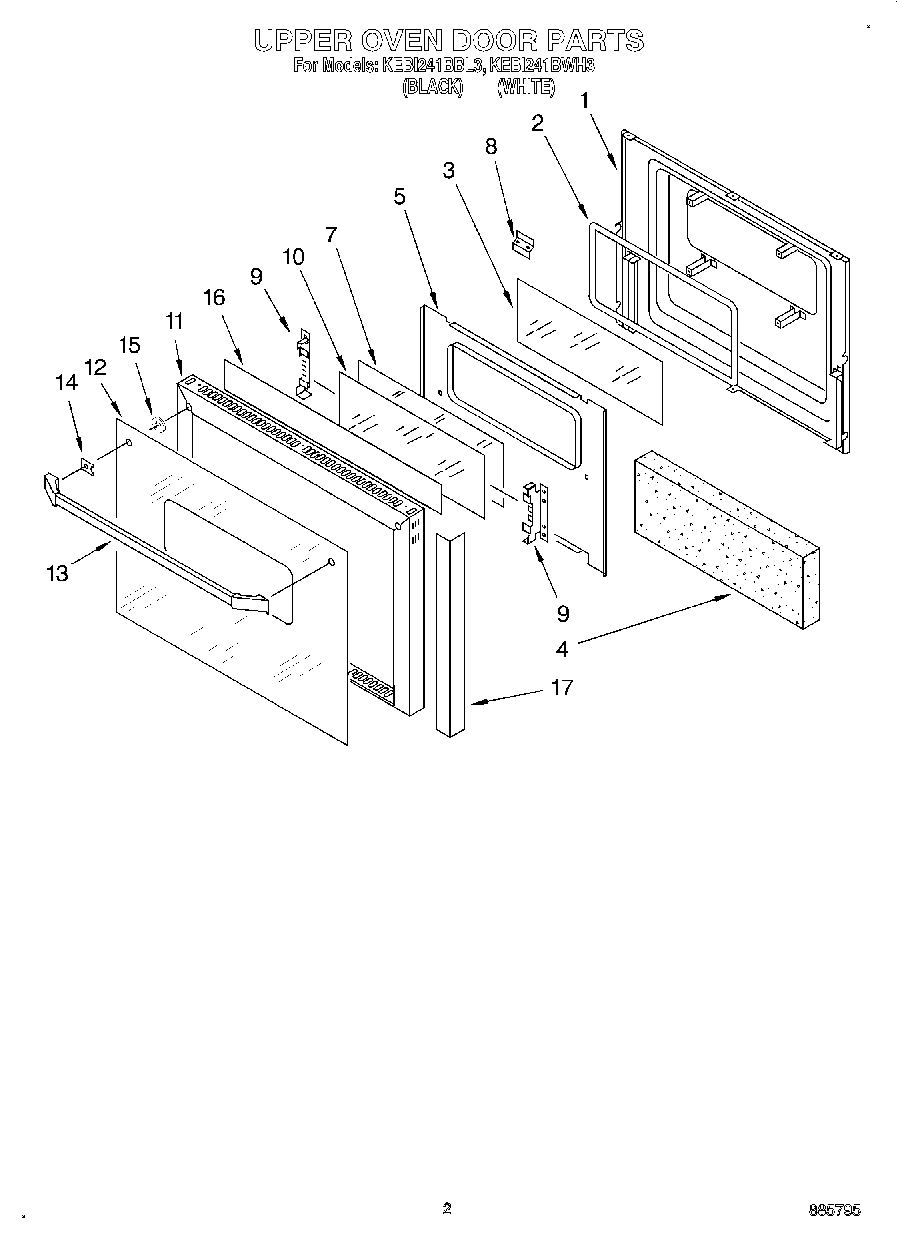

KEBI241BBL3 02 – UPPER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Glass, Clear
4Insulation, Door
5Screw, (2)
5Retainer, Insulation
7Glass, Reflective
8Latch, Strike
9Screw
9Retainer, Glass
10Glass, Clear
11Frame, Door (White Model)
11Frame, Door (Black Model)
12Glass, Door (Black Model)
12Glass, Door (White Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Spacer, Door Handle
15Screw (2)
15Bushing, Door Handle
16Foil-Adhesive
17Foil-Adhesive
