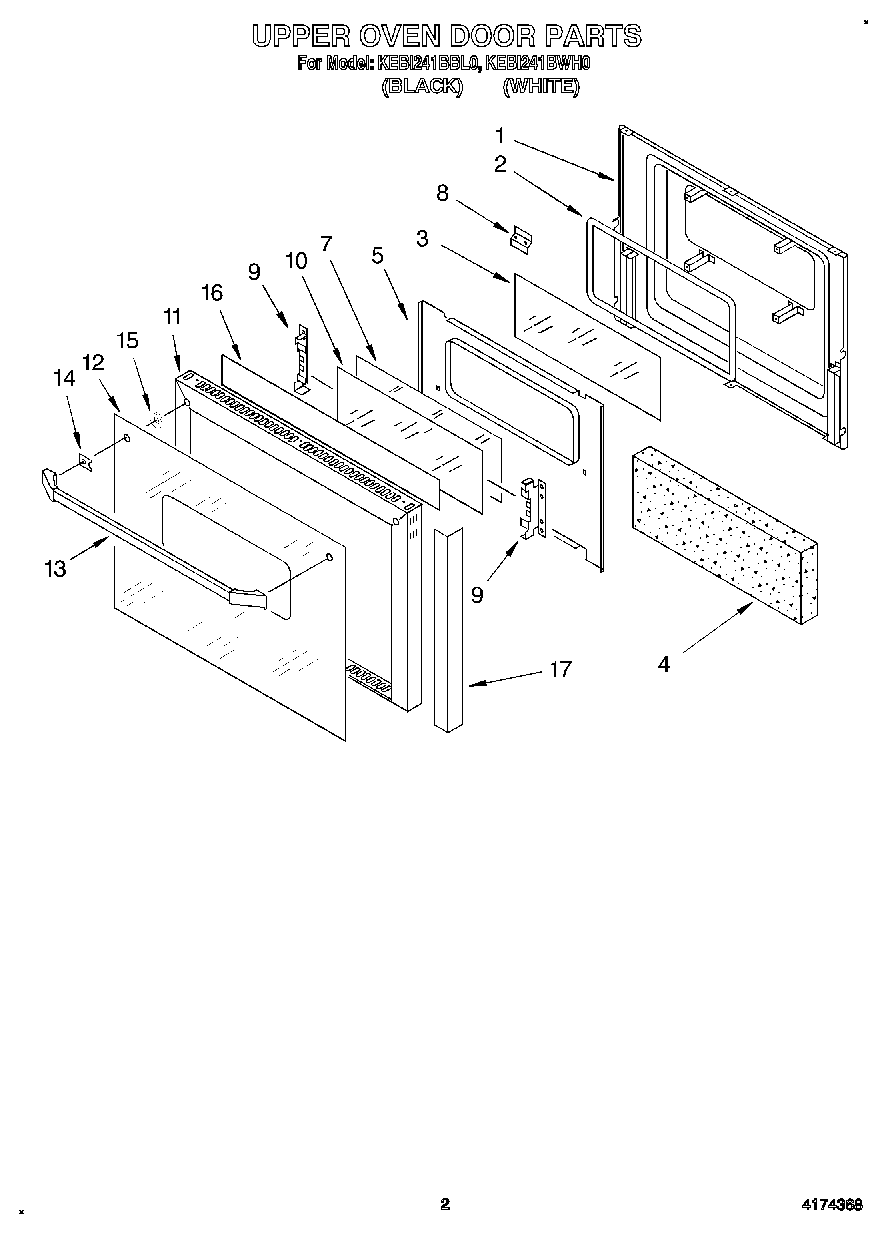

KEBI241BWH0 02 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Vent, Lower Trim (Screw (2))
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Screw
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door (White Model)
11	Frame, Door (Black Model)
12	Glass, Door (White Model)
12	Glass, Door (Black Model)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
14	Spacer, Door Handle
15	Bushing, Door Handle
15	Screw
15	Screw
16	Foil-Adhesive
17	Foil-Adhesive
