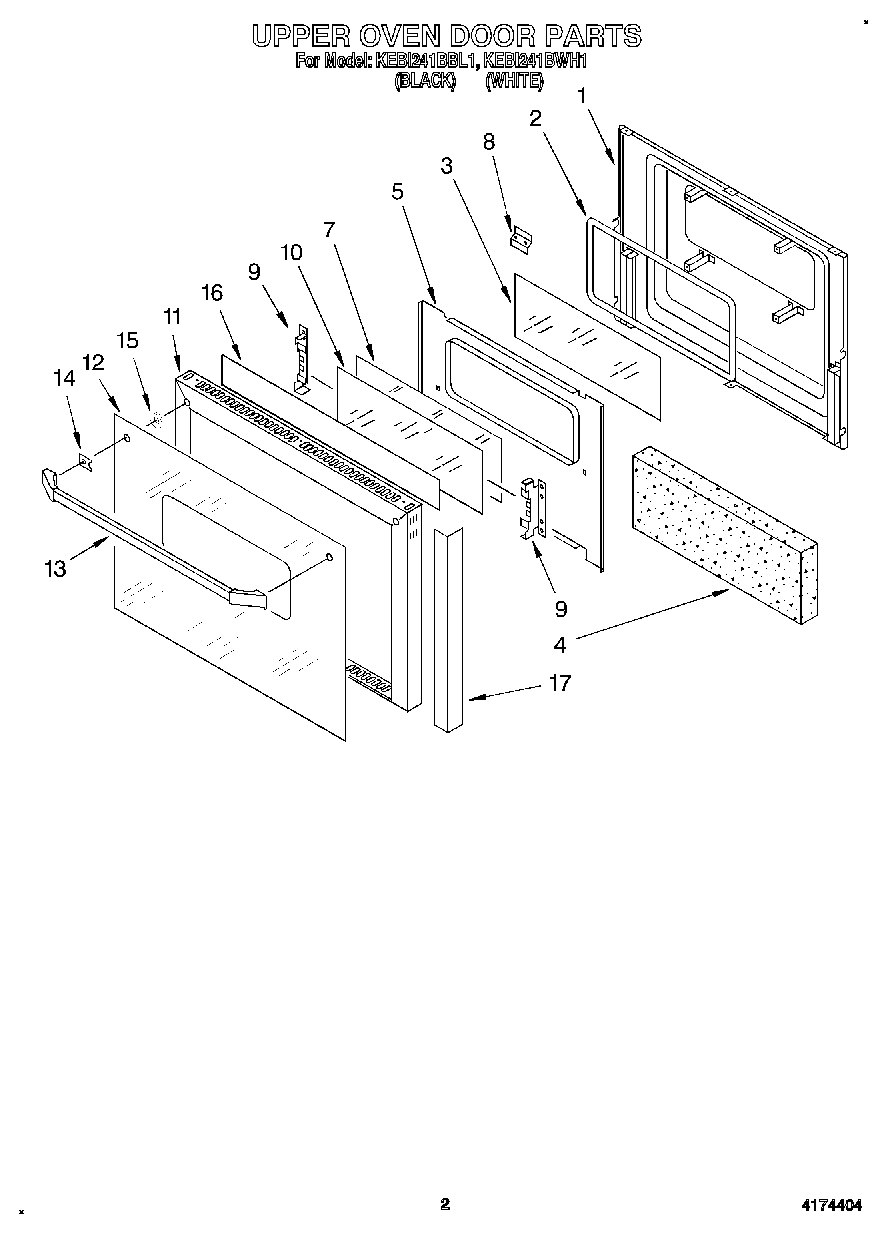

KEBI241BWH1 02 – UPPER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Retainer, Insulation
5Vent, Lower Trim (Screw (2))
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
9Screw
10Glass, Clear
11Frame, Door (White Model)
11Frame, Door (Black Model)
12Glass, Door (White Model)
12Glass, Door (Black Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Spacer, Door Handle
15Bushing, Door Handle
15Screw
16Foil-Adhesive
17Foil-Adhesive
