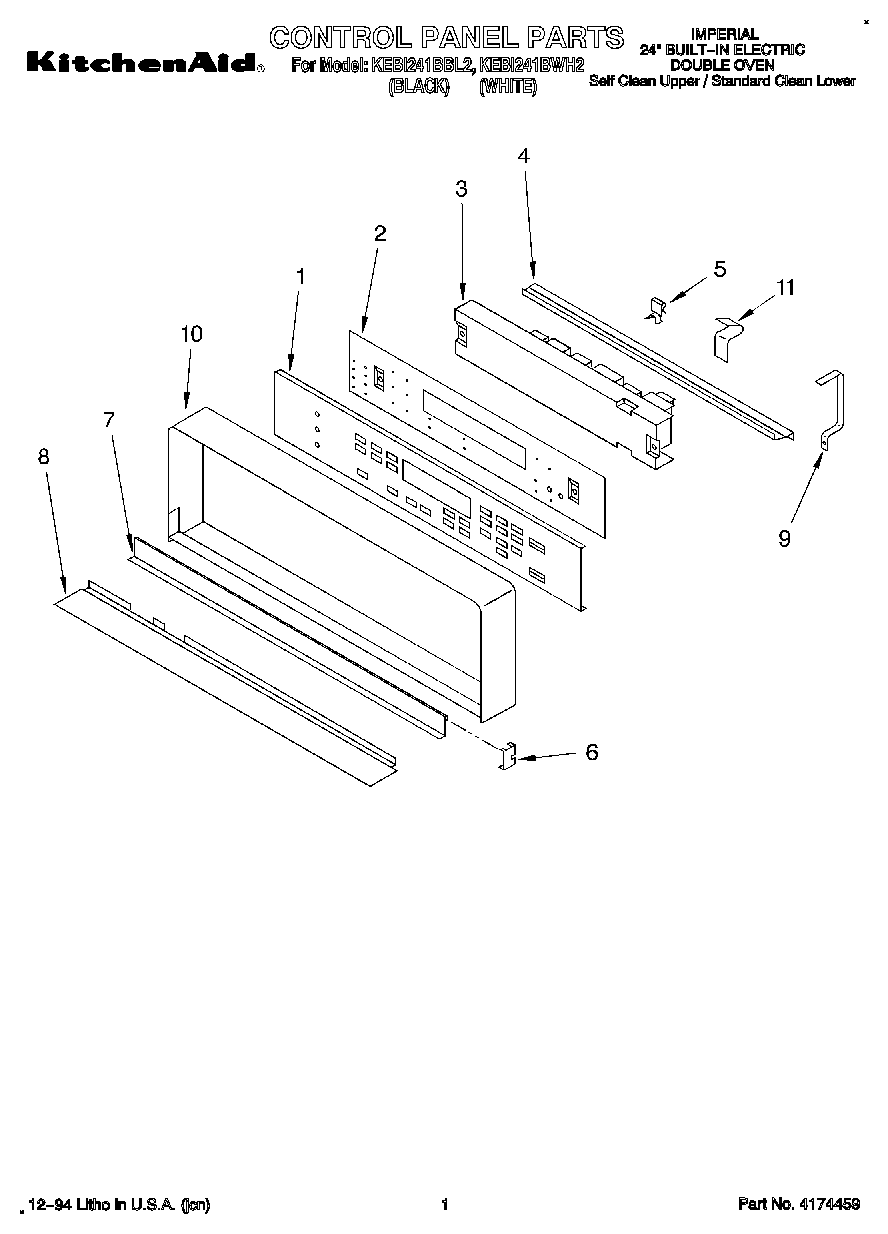

KEBI241BWH2 01 – CONTROL PANEL

Products

Position	Product
1	Membrane, Switch (White Model)
1	Membrane, Switch (Black Model)
2	Bracket, Mounting Switch Membrane
3	Microcomputer
3	Screw (2)
4	Retainer, Bracket
5	Clip, Retainer (3)
6	Trim, Door (2)
7	Door, Latch Handle (Screw (2))
7	Door, Latch Handle (White)
7	Door, Latch Handle (Black)
8	Screw
8	Trim, Panel
9	Screw (2)
9	Bracket (2)
10	Frame, Control Panel (Black Model)
10	Frame, Control Panel (White Model)
11	Clip, Control Frame
