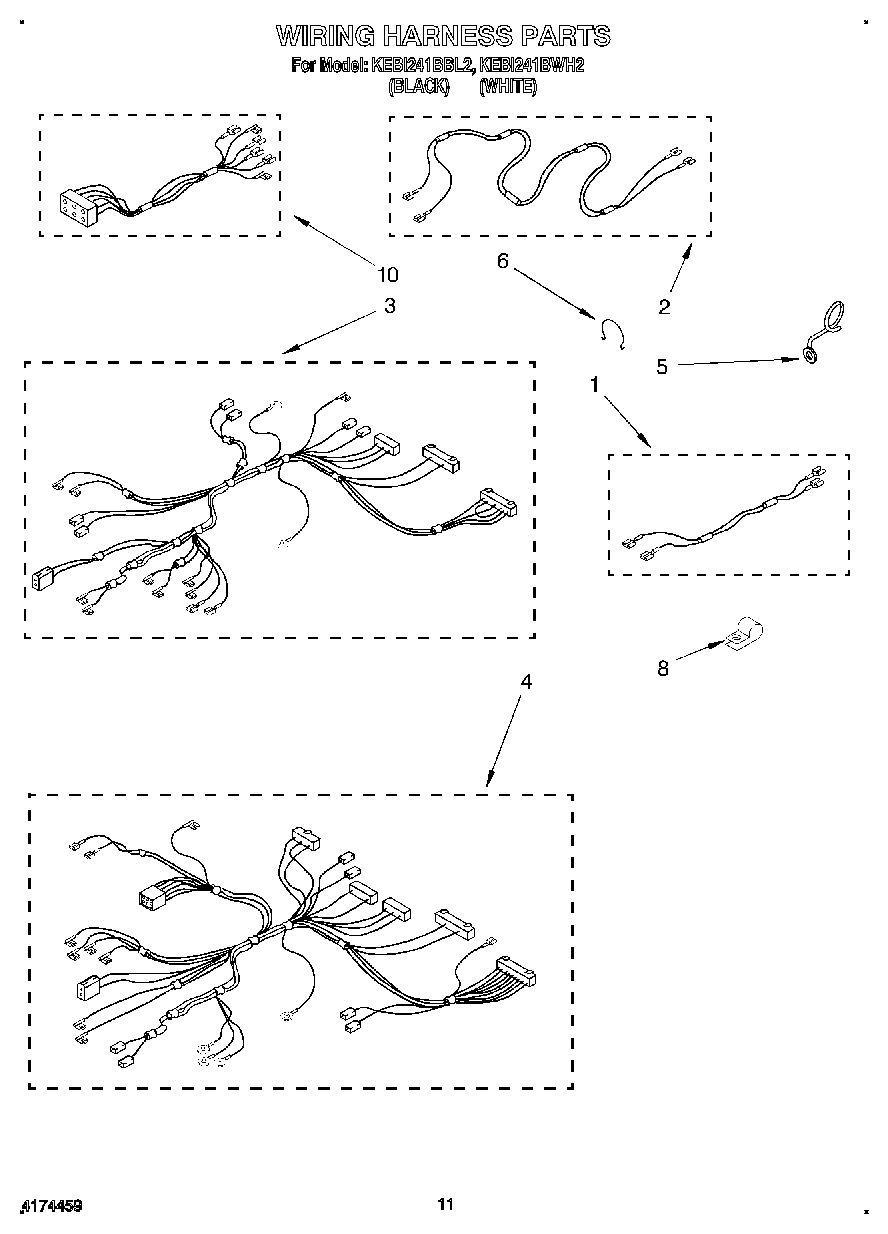

KEBI241BWH2 08 – WIRING HARNESS, OPTIONAL

Products

Position	Product
1	Wiring Harness (Door Switch) (Upper)
2	Wiring Harness (Door Switch) Lower)
3	Wiring Harness (Main)
4	Wiring Harness (Upper Oven)
5	Standoff, Wire
5	Screw
6	16515 Whirlpool Clip
8	7111P002-60 Whirlpool Clamp
10	WPL 832985
10	WPL 591014
10	WPL 350806
10	1
10	WP112432 Whirlpool Nut Assembly
10	242831 Whirlpool Oven Wire
10	18 Ga. 80~c Rating (Red)
10	WP261869 Whirlpool Microwave Paint
10	Wire (14 Ga. 150 c Blue)
10	Wire (14 Ga. 200 c Brown)
10	Harness, Wire (Latch Assy.)
10	Wire (14 Ga. 150 c Green)
10	Wire (14 Ga. 150 c Orange)
10	Wire (14 Ga. 150 c Yellow)
10	Wire (12 Ga. 150 c Black)
10	Wire (14 Ga. 150 c Brown)
10	WP482338 Whirlpool Refrigerator Adhesive
10	72032 Whirlpool Touch Up Paint Black
10	Golden Harvest
10	72113 Whirlpool Touch-Up Paint
10	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
10	Almond (Uncut)
10	Leveler (Thinner)
10	WP72107 Whirlpool Touchup
10	799344 Whirlpool Refrigerator Paint
10	72017 Whirlpool Appliance Touch-Up Paint White
10	350956 Whirlpool Spray Assembly
10	Golden Harvest (Uncut)
10	Toast
10	Paint, Spray (13 Oz.) (Platinum)
10	285006 Whirlpool Spray
10	Wire, 25`` Roll (White 14 GA.)
10	Wire, 25` Roll (Red 14 Ga.)
10	Wire, 25` Roll (Black 14 Ga.)
10	WPL 799832
10	350942 Whirlpool Spray Paint
10	WPL 72112
10	Platinum (Uncut)
10	Enamal, Toast (1 Qt. Uncut)
10	350930 Whirlpool White Spray Paint
