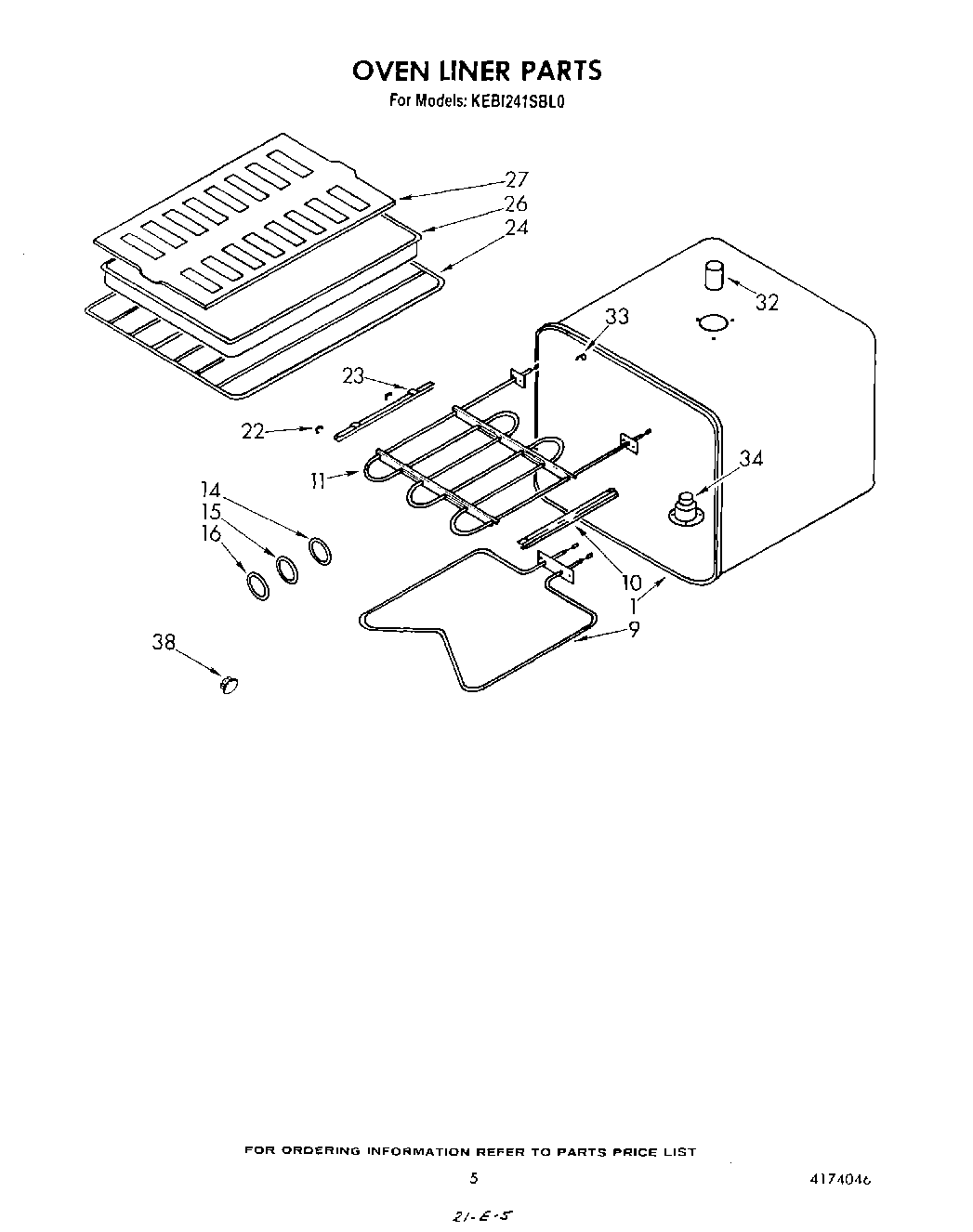

KEBI241SBL0 05 – OVEN LINER
Written by
in
KEBI241SBL0 05 – OVEN LINER
Products
Position
Product
1
Liner, Oven (Upper & Lower Ovens)
9
WP3177420 Whirlpool Bake Element
10
Broiler Element Support-Right
11
Element, Broil
14
Light Lens Gasket
15
Light Lens
16
Light Lens Retainer
22
Clip, Thermostat Bulb
23
Broiler Element Support-Left
24
Rack, Oven
26
4396923 Whirlpool Broil Pan Set Gray Porcelain
32
Vent Tube Extension
33
Cover, Cap Tube
34
Smoke Eliminator (Vent Tube Lower Oven)
34
Smoke Eliminator (Upper Oven)
38
Plug Button (3/8“ Hole)
38
Plug Button (5/8“ Hole)
38
Plug Button (3/4“ Hole)
←
