KEBI241SBL0 06 – LATCH
Written by
in

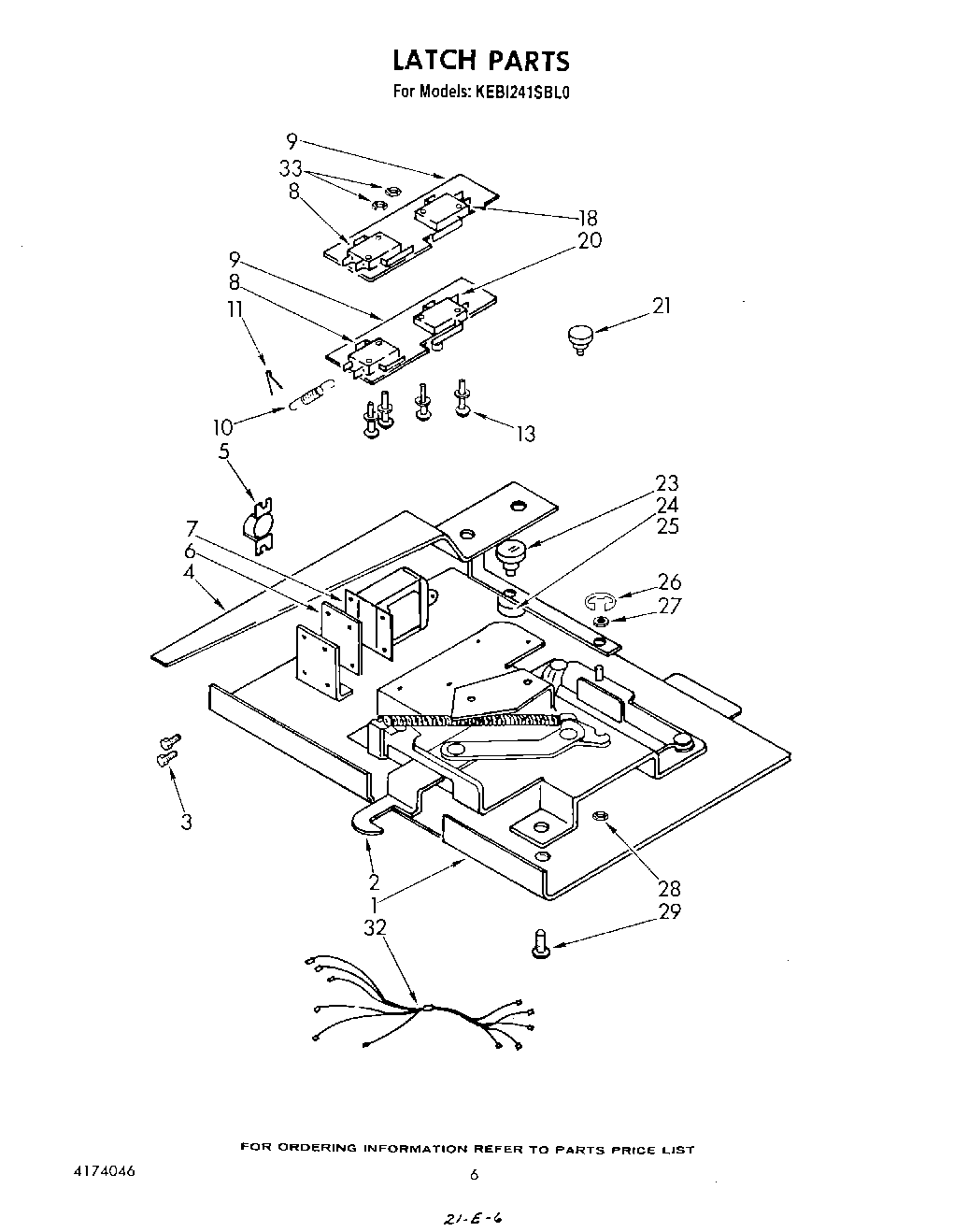

KEBI241SBL0 06 – LATCH
Products
Position
Product
1
Latch Mounting Plate
2
Mechanism, Latch
3
Screw, No.10-24 X 3/8“ Hex TCS
4
Latch Lever
5
Thermal Switch
6
Solenoid Spacer
7
Solenoid
8
Latch Switch (2)
9
Insulator (2)
10
Solenoid Spring
11
Cotter Pin
13
Screw, No.4-40 X 1 1/4“ Hex
18
Latch Switch
20
Latch Switch With Roller
21
Shoulder Screw Latch Lever Upper Oven
23
Shoulder Screw, Actuator Arm
24
Spacer, Actuator Arm
25
Actuator Arm
26
Retaining Ring
27
Washer, Flat
28
Nut, No.10-24 Hex Kep
29
Screw, No.10-24 X 3/8“ PTHMS
32
Wiring Harness, Latch Switch
33
Nut (2)
←
