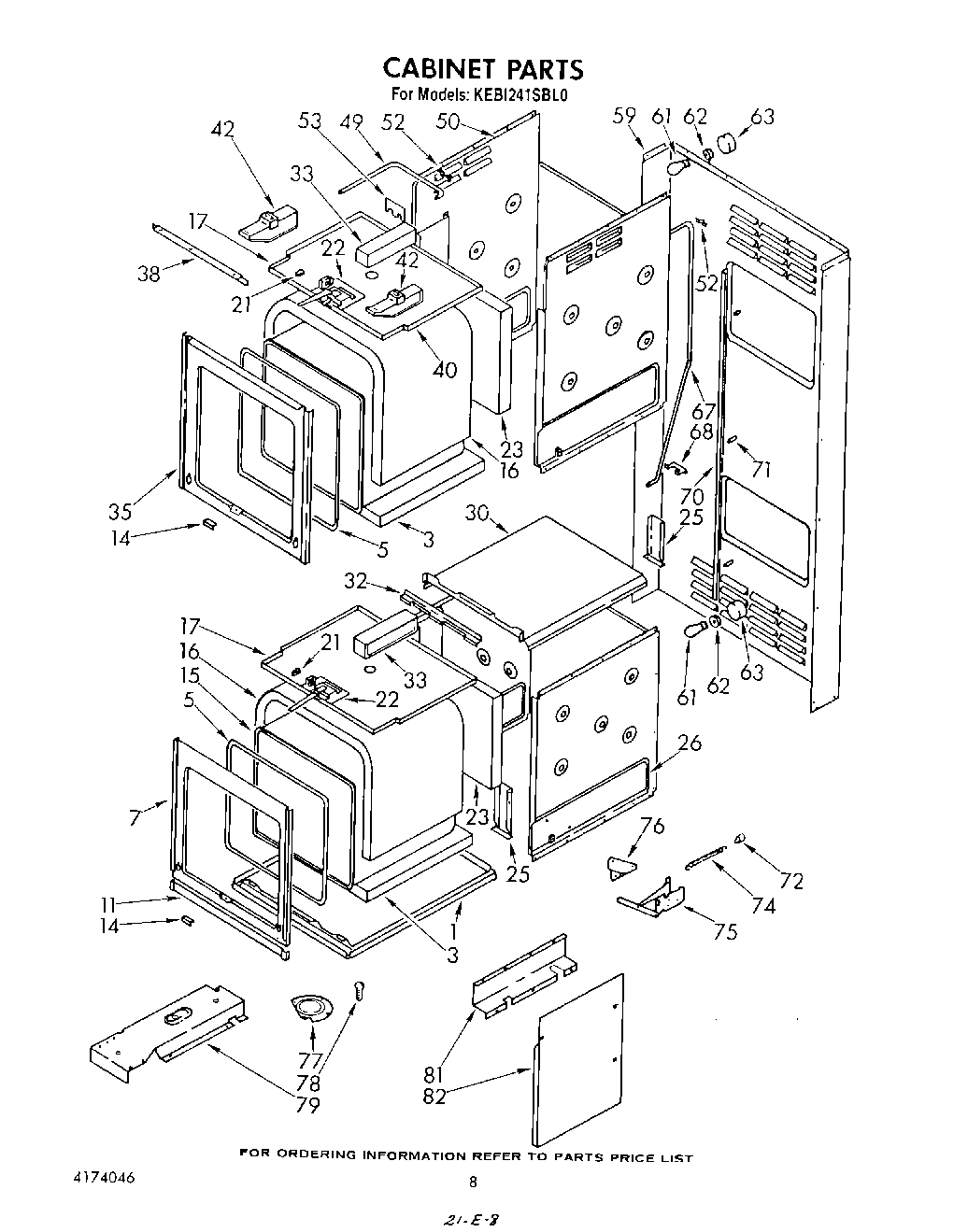

| 1 | Main Bottom |
| 3 | Insulation, Bottom |
| 5 | Door Gasket, Upper And Lower Oven |
| 7 | Front Frame, Lower Oven |
| 11 | Bottom Trim |
| 14 | Cover, Seal End |
| 15 | Oven Liner (Lower Oven) (See Page 5 For Further Breakdown) |
| 16 | Insulation, Top and Sides |
| 21 | Knob, Latch Lever |
| 22 | Latch Assembly (See Latch Parts On Pages 6 & 7 For Further Breakdown) |
| 23 | Insulation, Rear |
| 25 | Rear Anchor |
| 26 | Cabinet Side (Lower Oven) |
| 30 | Upper Oven Support |
| 32 | Front Frame Support |
| 33 | Collector Box |
| 35 | Front Frame, Upper Oven |
| 38 | Control Frame Support |
| 40 | Compartment Top (Upper Oven) |
| 42 | Vent Box |
| 49 | Vent Tube (Upper Oven) |
| 50 | Cabinet Side (Upper Oven) |
| 52 | Clamp, Conduit |
| 53 | Vent Tube Mounting Bracket |
| 59 | Cabinet Back |
| 61 | RANGE ONLY 40W 120V APPL BULB |
| 62 | Socket, Lamp |
| 63 | Light Shield |
| 67 | Vent Tube, Lower Oven |
| 68 | Vent Tube, Retainer |
| 70 | Cabinet Support (Left) |
| 70 | Cabinet Support (Right) |
| 71 | Spacer |
| 72 | Spring, Anchor |
| 74 | Door Spring (Self Cleaning Oven) |
| 74 | Door Spring (Easy Clean Oven) |
| 75 | Hinge Assembly |
| 76 | Cam Plate (Right) |
| 76 | Cam Plate (Left Left) |
| 77 | Probe Cover |
| 78 | Vent, Lower Trim (Screw (2)) |
| 79 | Air Duct (Upper Oven) (Left Air Duct (Lower Oven)) |
| 79 | Air Duct (Upper Oven) (Left) |
| 79 | Air Du |
| 79 | Air Duct (Upper Oven) (Right) |
| 81 | WPL 4173017 |
| 81 | WPL 4173016 |
| 82 | WPL 4173015 |
