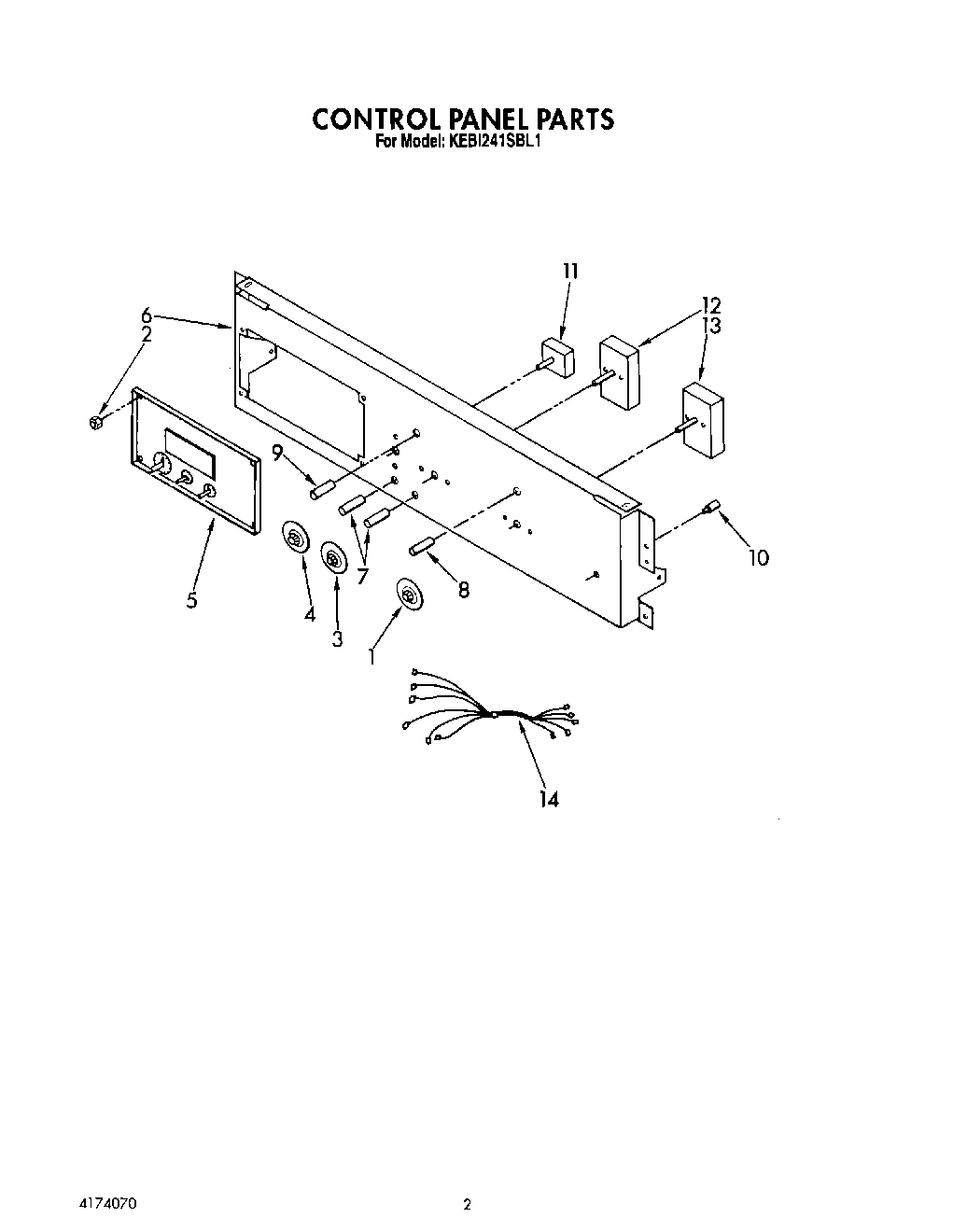

KEBI241SBL1 02 – CONTROL PANEL

Products

PositionProduct
1Thermostat Disc Lower Oven
2Nut, Timer (4)
3Selector Disc
4Thermostat Disc Lower Oven
5Clock
6Control Mounting Panel
7Indicator Light (2)
8Indicator Light, Oven (Lower Oven)
9Indicator Light,
10Oven Light Switch
11Selector Switch
12Thermostat, Upper Oven
13Thermostat (Lower Oven)
14Wiring Harness, Element (Upper Oven)
14Wiring Harness, (Low Temperature)
14Wiring Harness, (High Temperature)
