KEBI241SBL1 05 – OVEN LINER

KEBI241SBL1 05 – OVEN LINER

Written by

in

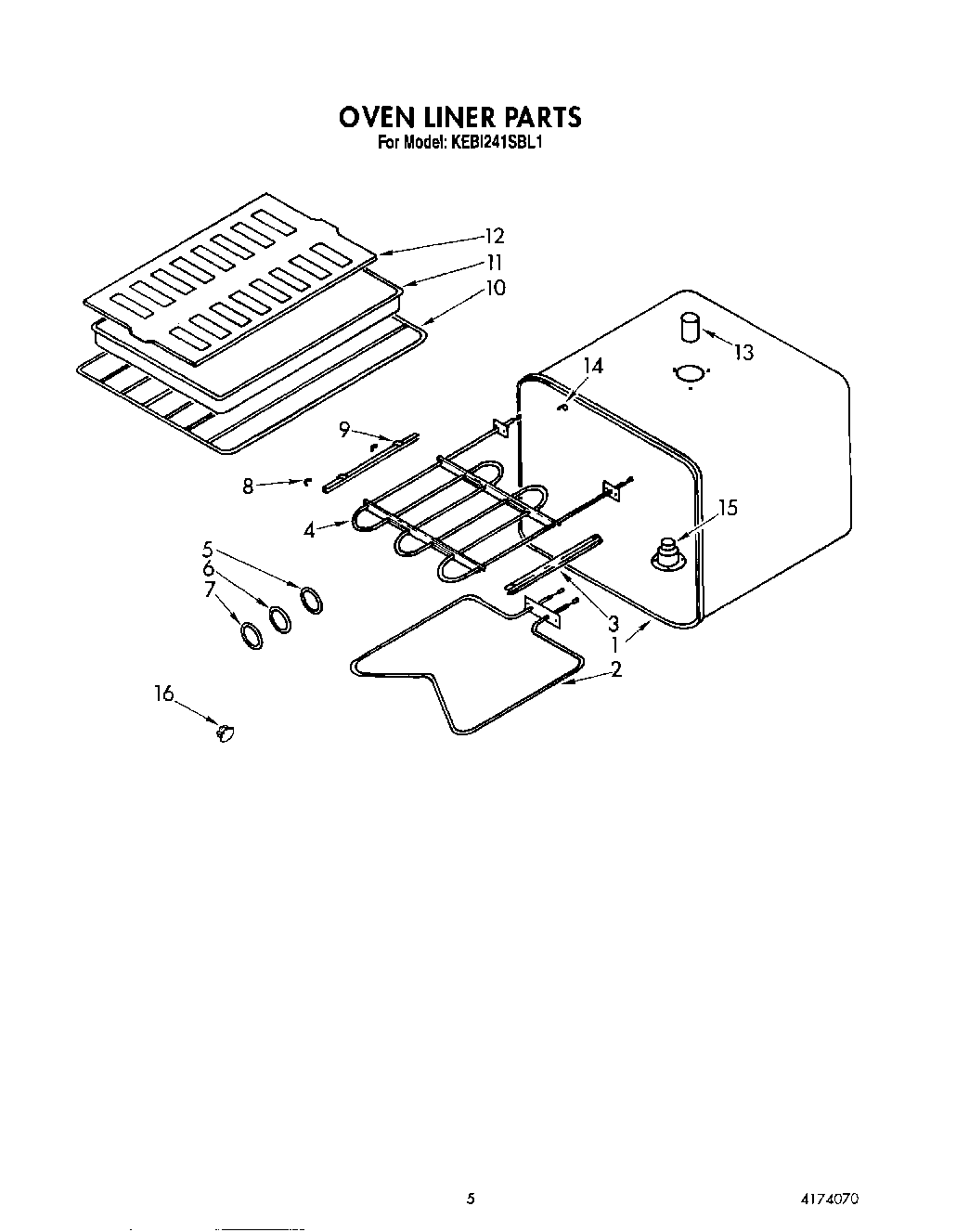

KEBI241SBL1 05 – OVEN LINER

Products

PositionProduct
1Liner, Oven (Upper & Lower Ovens)
2WP3177420 Whirlpool Bake Element
3Broiler Element Support-Right
4Element, Broil
5Light Lens Gasket
6Light Lens
7Light Lens Retainer
8Clip, Thermostat Bulb
9Broiler Element Support-Left
10Rack, Oven
114396923 Whirlpool Broil Pan Set Gray Porcelain
13Vent Tube Extension
14Cover, Cap Tube
15Smoke Eliminator (Vent Tube Lower Oven)
15Smoke Eliminator (Upper Oven)
16Plug Button (3/8“ Hole)
16Plug Button (5/8“ Hole)
