KEBI241SBL1 06 – LATCH
Written by
in

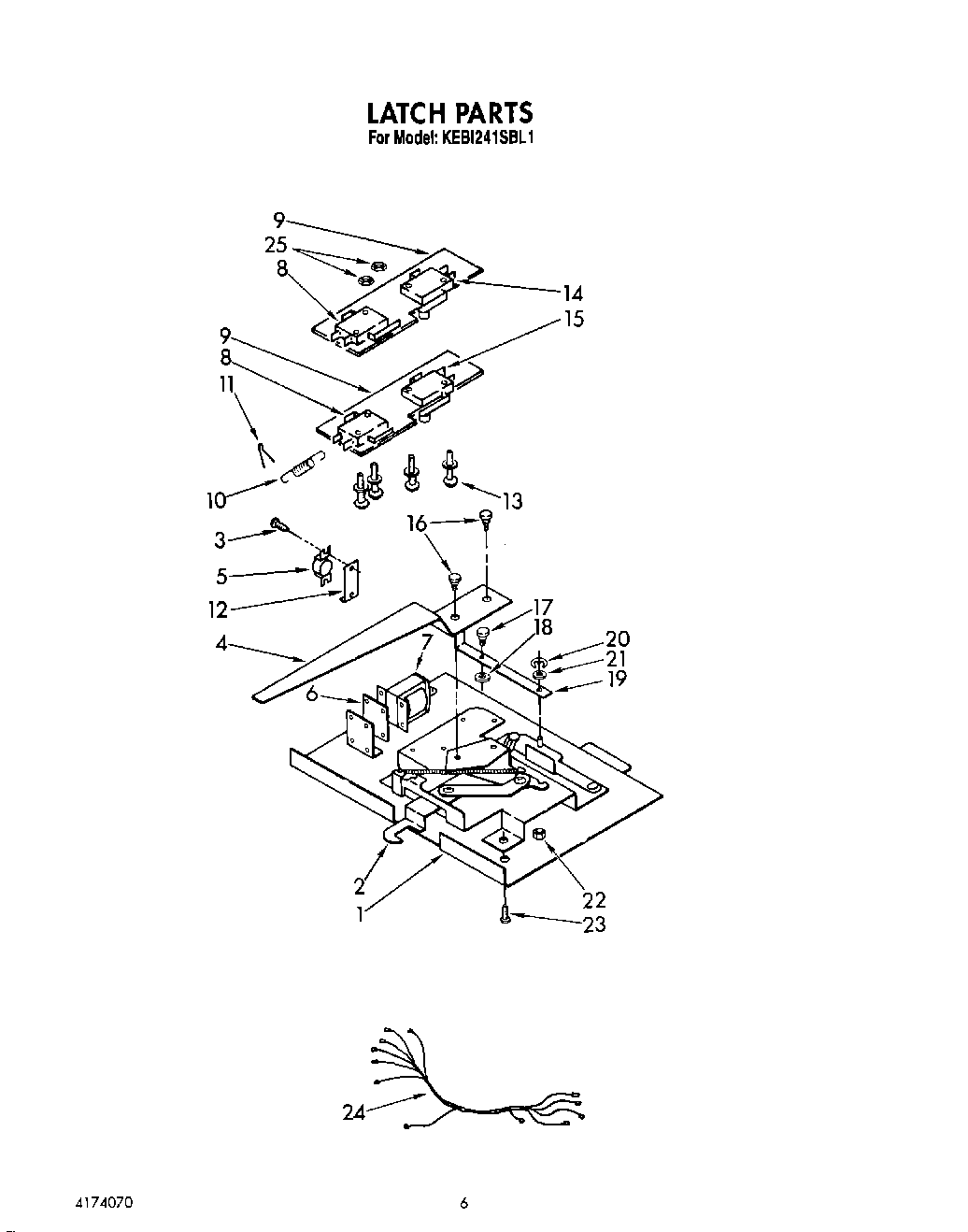

KEBI241SBL1 06 – LATCH
Products
Position
Product
1
Plate, Latch
2
Mechanism, Latch
3
Screw
4
lever, latch
5
Thermal Switch
6
Solenoid Plate
7
Solenoid
8
Latch Switch (2)
9
Insulator (2)
10
Solenoid Spring
11
Cotter Pin
12
Mounting Bracket, Safety Switch
13
Screw, No.4-40 X 1 1/4“ Hex
14
Latch Switch
15
Latch Switch With Roller
16
Shoulder Screw Latch Lever Upper Oven
17
Shoulder Screw, Actuator Arm
18
Spacer, Actuator Arm
19
Actuator Arm
20
Retaining Ring
21
Washer, Flat
22
Nut, No.10-24 Hex Kep
23
Screw, No.10-24 X 3/8“ PTHMS
24
Harness, Wiring (Latch Switch)
25
Nut (2)
←
