KEBI241SBL1 07 – CABINET

KEBI241SBL1 07 – CABINET

Written by

in

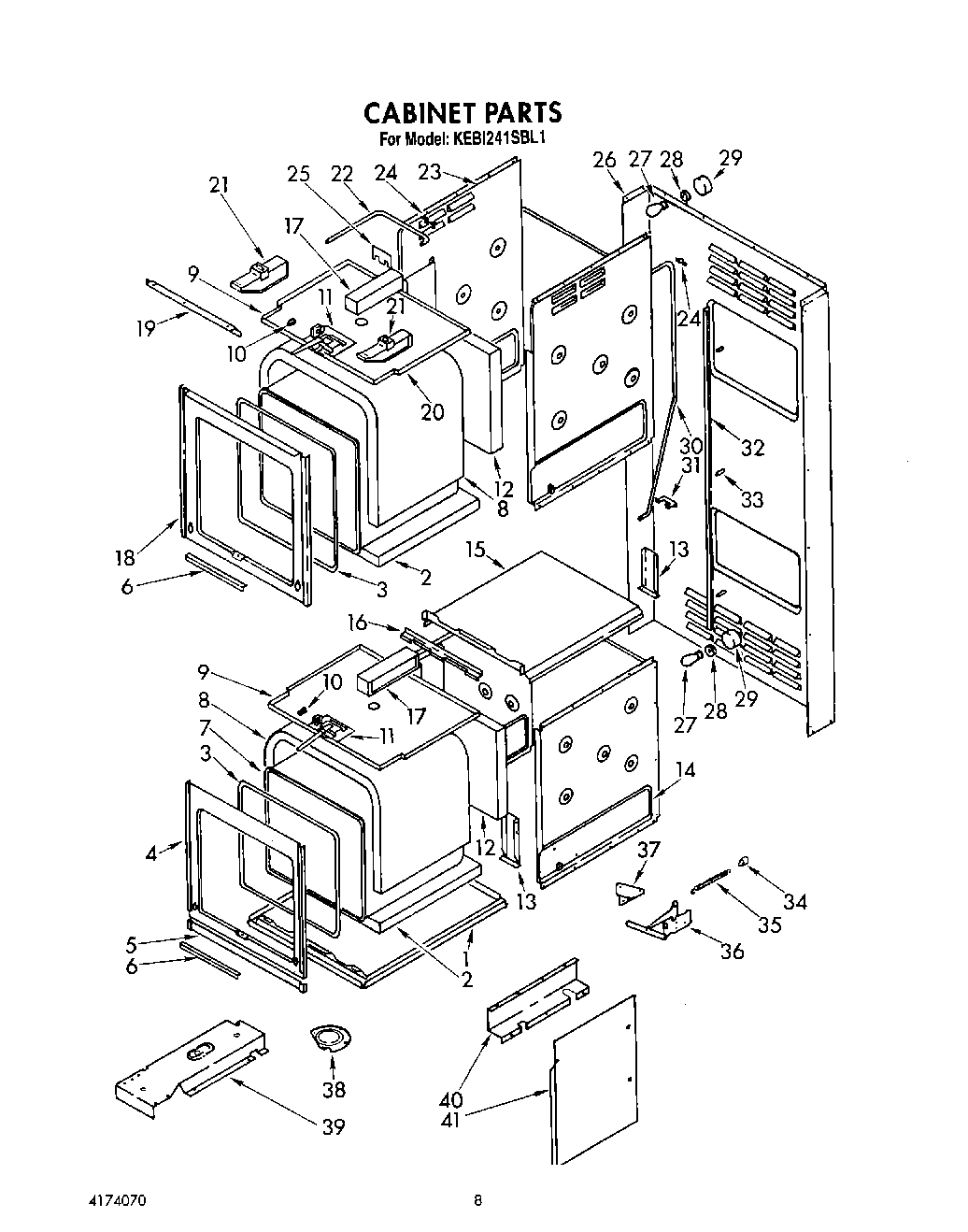

KEBI241SBL1 07 – CABINET

Products

PositionProduct
1Main Bottom
2Insulation, Bottom
3Door Gasket, Upper And Lower Oven
4Front Frame, Lower Oven
5Bottom Trim
6Cover, Seal End
7Oven Liner (Lower Oven) (See Page for Further Breakdown)
8Insulation, Top and Sides
10Knob, Latch Lever
11Latch Assembly (See Latch Parts On Page For Further Breakdown)
12Insulation, Rear
13Rear Anchor
14Cabinet Side (Lower Oven)
15Upper Oven Support
16Front Frame Support
17Collector Box
18Front Frame, Upper Oven
19Control Frame Support
20Compartment Top (Upper Oven)
21Vent Box
22Vent Tube (Upper Oven)
23Cabinet Side (Upper Oven)
24Clamp, Conduit
25Vent Tube Mounting Bracket
26Cabinet Back
27RANGE ONLY 40W 120V APPL BULB
28Socket, Lamp
29Light Shield
30Vent Tube, Lower Oven
31Vent Tube, Retainer
32Cabinet Support (Right)
32Cabinet Support (Left)
33Spacer
34Spring, Anchor
35Door Spring (Self Cleaning Oven)
35Door Spring (Easy Clean Oven)
36Hinge Assembly
37Cam Plate (Right)
37Cam Plate (Left Left)
38Probe Cover
39Air Duct (Upper Oven) (Left)
39Air Du
39Air Duct (Upper Oven) (Right)
39Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
40WPL 4173016
40WPL 4173017
41WPL 4173015
