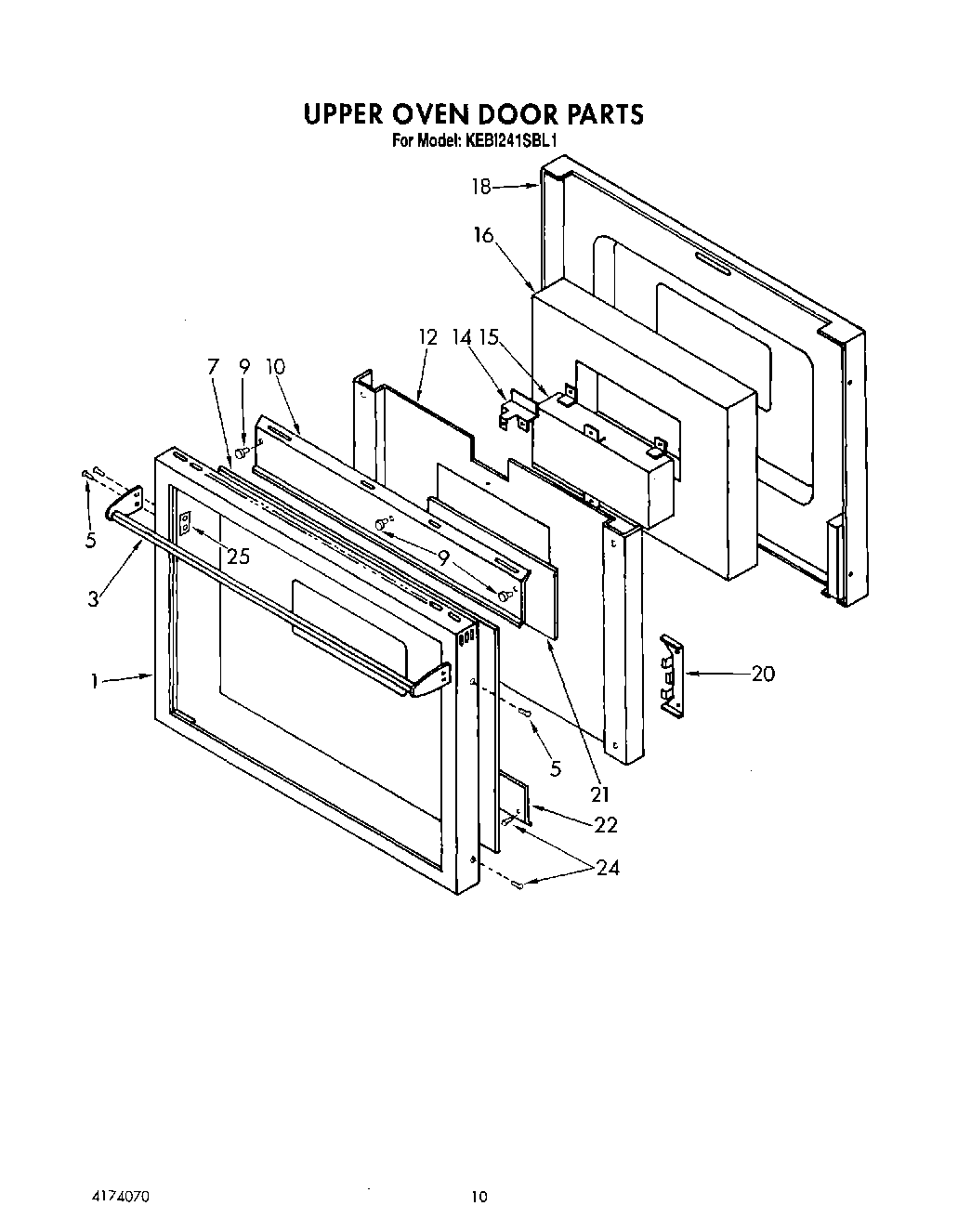

KEBI241SBL1 08 – UPPER OVEN DOOR , LITERATURE

KEBI241SBL1 08 – UPPER OVEN DOOR , LITERATURE

Written by

in

KEBI241SBL1 08 – UPPER OVEN DOOR , LITERATURE

Products

PositionProduct
List, Repair Parts
Installation Instructions
Use and Care Guide
1Door Frame
3Door Handle
5Screw, 8-32 X 3/8“ PFHMS
7Door Glass
9Rubber Bumper
10Air Baffle
12Insulation Retainer
14Bracket, Lock
15Window Package
16Insulation
18Door Liner
20Bracket, Glass Mtg.
21Glass, Reflective
22Air Baffle Bottom
24Vent, Lower Trim (Screw (2))
25Insert (4)
