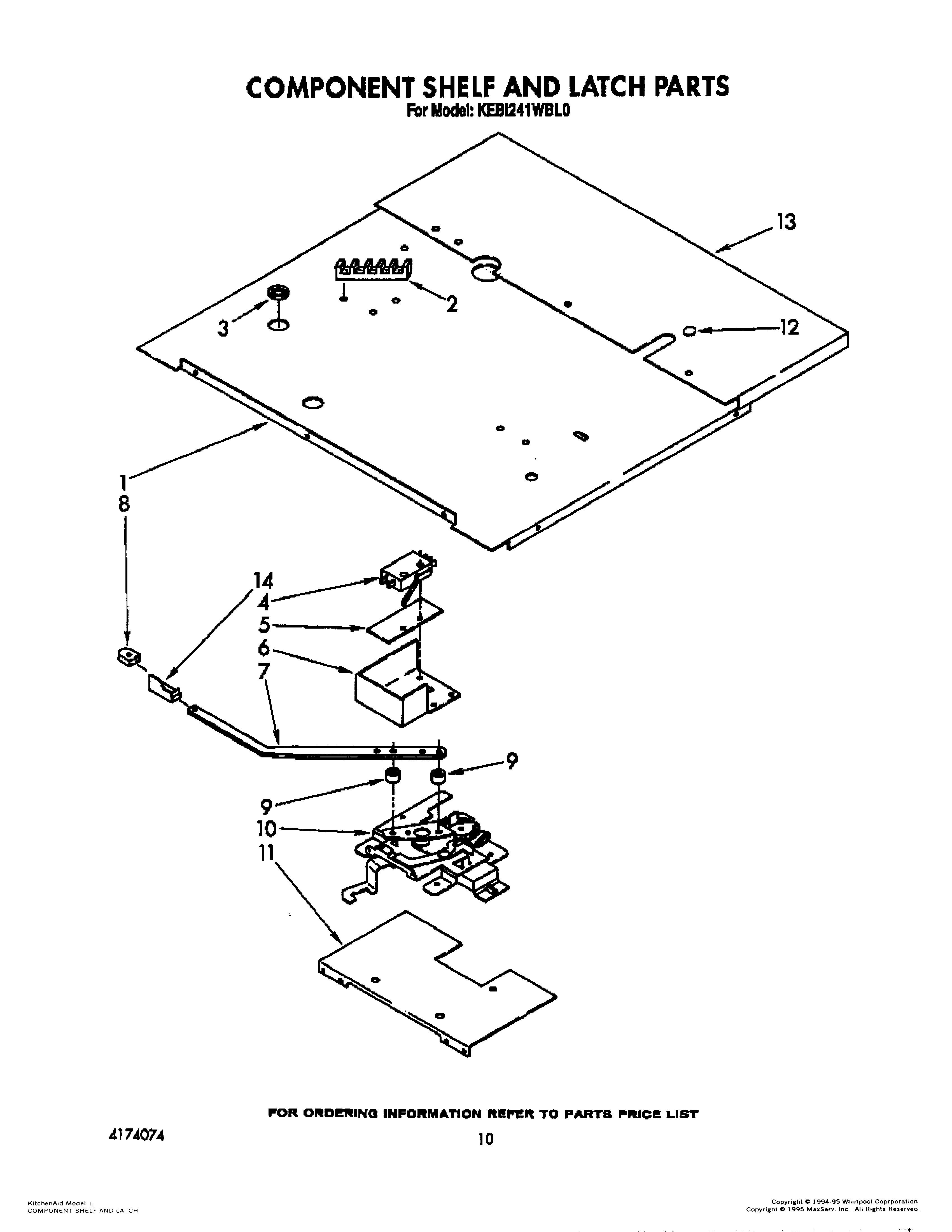

KEBI241WBL0 07 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	WP90767 Whirlpool Screw
1	Shelf, Component
2	WP8203546 Whirlpool Terminal Block
2	W10841059 Whirlpool Screw
3	Bushing
4	Screw
4	Switch, Latch
5	Insulator, Switch
6	Guard, Latch
6	Screw,
7	Screw (2)
7	Handle, Latch
8	Knob, Latch Handle
9	Spacer, Handle (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	Extension, Shelf
13	WP3177991 Whirlpool Screw
14	Support, Latch
14	WP488234 Whirlpool Air Conditioner Screw
