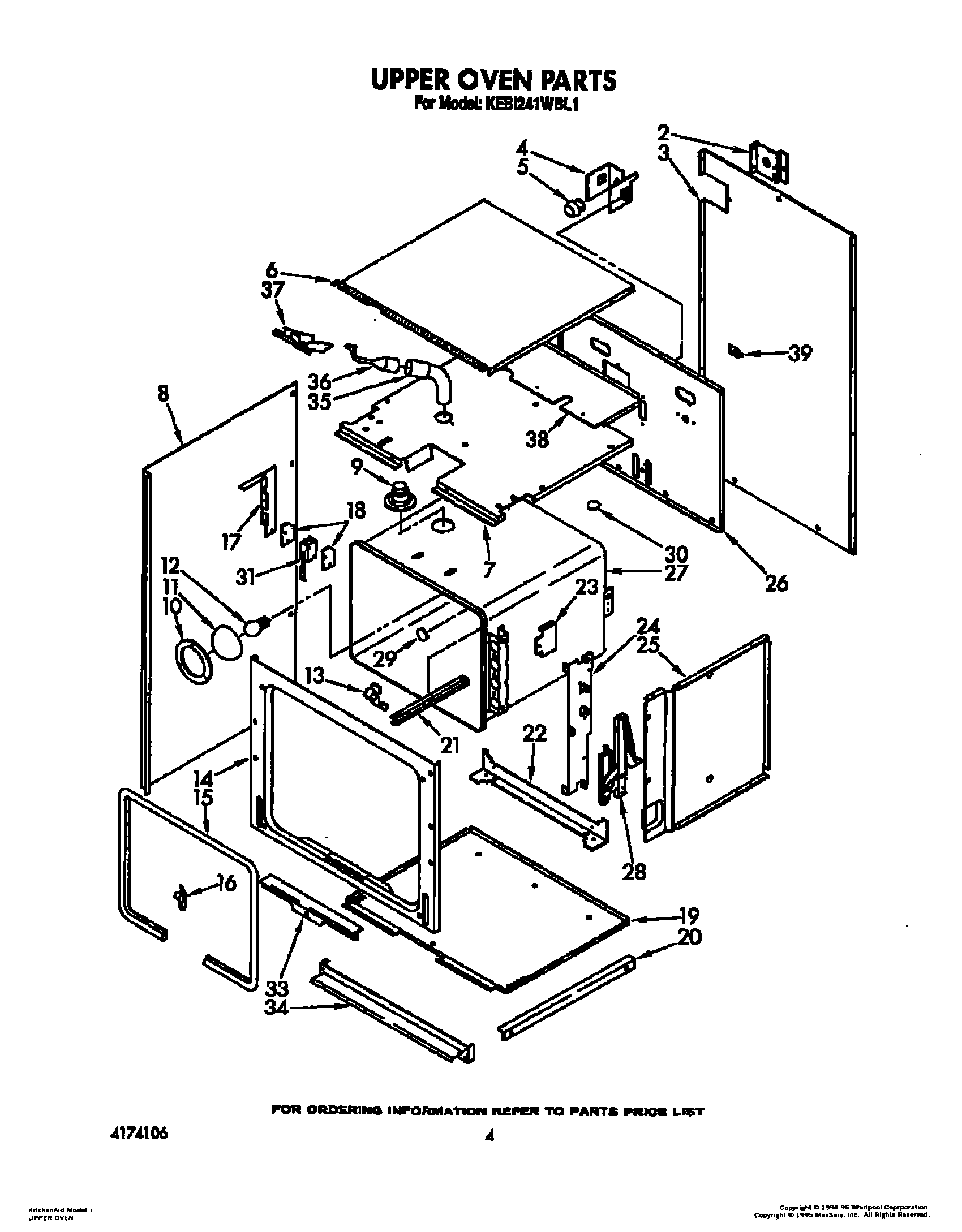

KEBI241WBL1 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Housing, Light
5	Socket, Light
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Vent Tube Extension
10	Retainer, Glass
11	Light Lens
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw (3)
21	Broiler Element Support-Right
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Screw (2)
31	Nut (2)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	WP3177991 Whirlpool Screw
38	Extension, Shelf
39	Insulation, Wrap
39	Cover, Cap Tube
39	Screw
39	WPL 3177870
