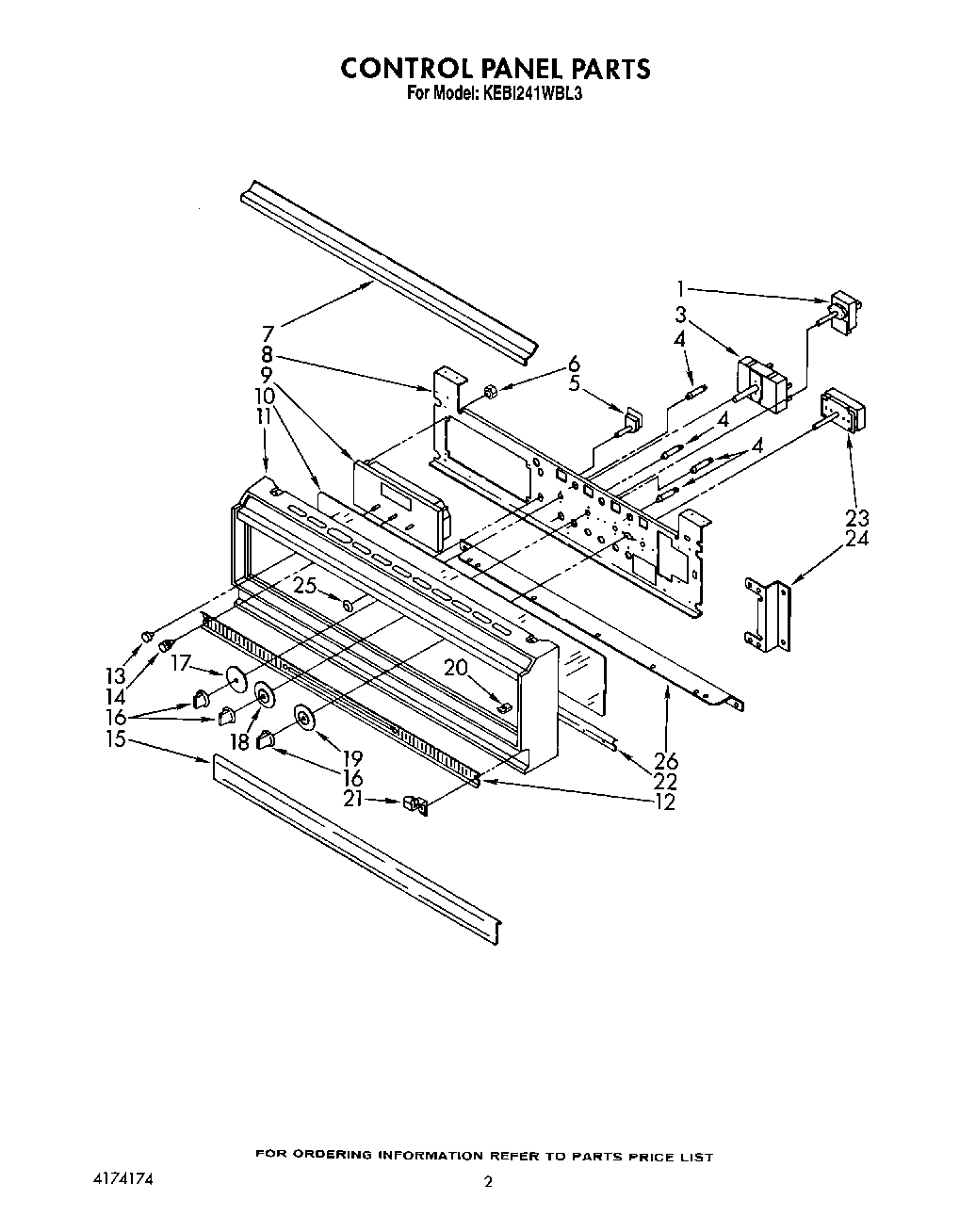

KEBI241WBL3 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

Products

Position	Product
	Repair Parts List
	WPL LIT3178202
	Guide, Use & Care
	WPL LIT3178195
1	Thermostat, upper
3	WP486579 Whirlpool Air Conditioner Screw
3	Switch, Selector
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel
11	Frame, Control Panel
12	Insert, Vent
13	Knob, Clock
14	Knob, Clock (2)
15	Door, Latch Handle
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
19	Disc, Thermostat (Standard Clean)
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Screw (6)
22	Retainer
23	Screw (2)
23	Thermostat, Lower
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	WP3177991 Whirlpool Screw
26	Support, Frame
