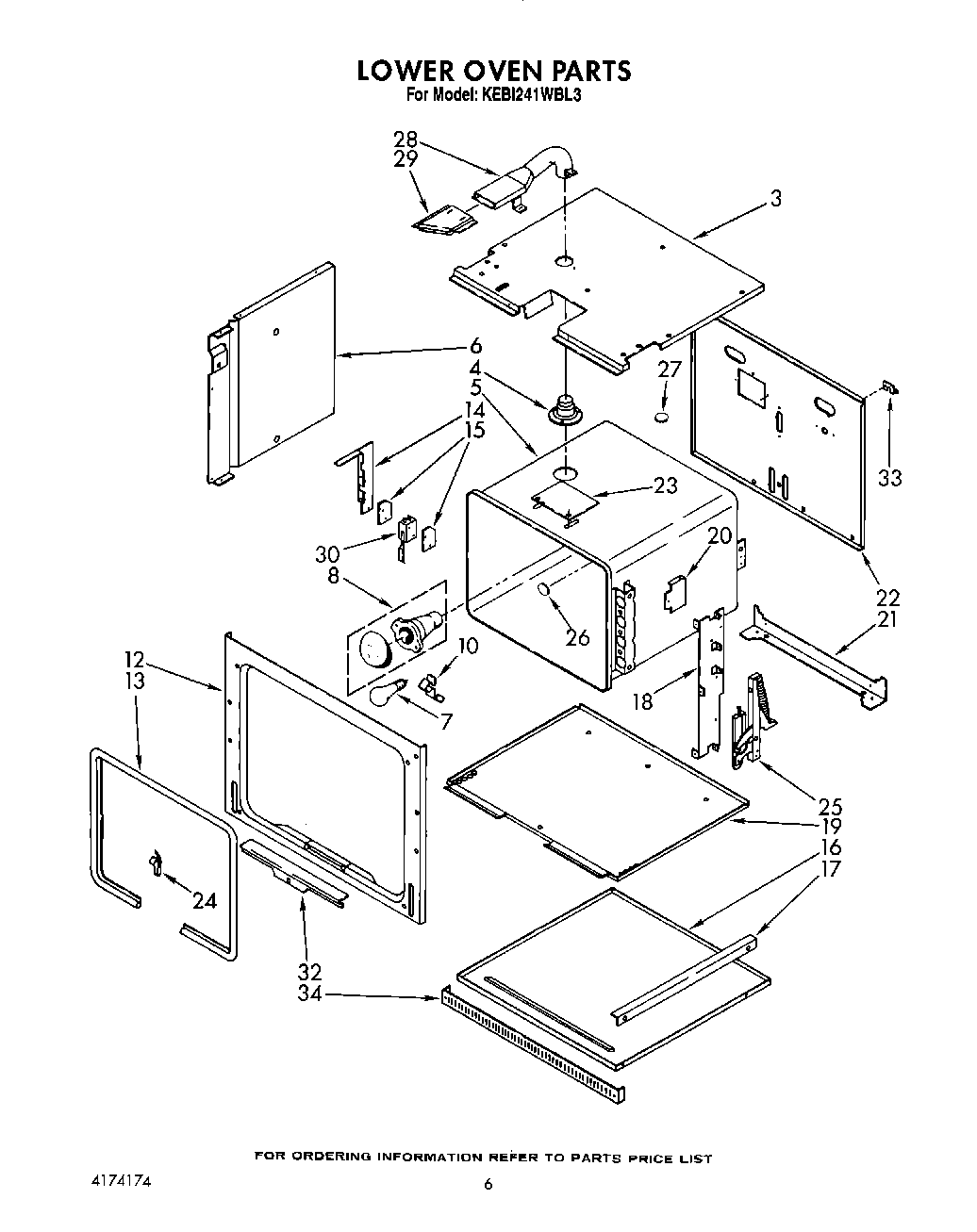

KEBI241WBL3 04 – LOWER OVEN

Products

Position	Product
3	Top, Module
4	Tube, Vent
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
8	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
11	Broiler Element Support-Right
12	Frame, Door
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Screw (3)
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Screw (6)
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	WP90767 Whirlpool Screw
28	Tube, Vent Male
29	Tube, Vent
30	Switch, Door
30	Screw (2)
30	Nut (2)
31	Insulator, Switch
32	Screw (4)
32	Vent, Lower Trim (Screw (2))
32	Retainer, Seal
33	Cover, Cap Tube
33	Screw
34	Insulation, Wrap
34	Vent, Lower Trim (Black Model)
34	WPL 3177870
